- Page 1 S3756P Hardware Installation Manual...
-
Page 2: Table Of Contents
2.3.4 Power Requirements ....................8 Power Requirements ......................8 2.4 Installation Tools and Device ....................8 Chapter 3 Installing the S3756P Switch ..................10 3.1 Installation Flow of S3756P ....................10 3.2 Installing the Machine Box of the Switch ................10 3.2.1 Installing the Machine Box on the Desk .............. - Page 3 Table of Contents 3.3.3 Connecting Gigabit Ethernet TX Ports ..............13 3.4 Checking after Installation ....................15 Chapter 4 Maintaining Switch ......................16 4.1 Opening the Machine Box ....................16 4.2 Closing Machine Box ......................17 Chapter 5 Hardware Fault Analysis ....................18 5.1 Fault Separation .........................
-
Page 4: Chapter 1 S3756P Switch Introduction

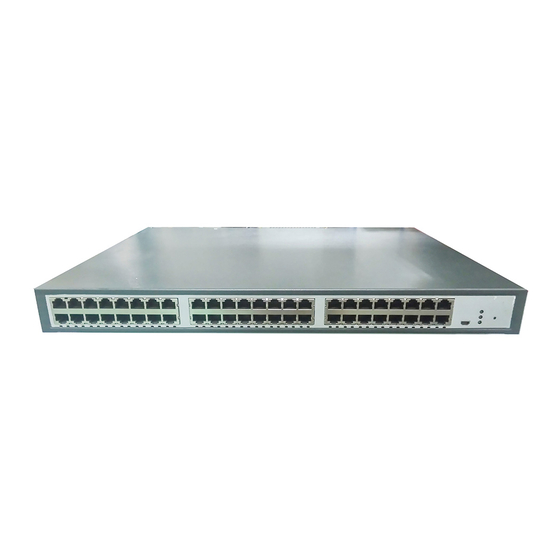

The section describes the characteristics and parameters of S3756P and gives an overview of S3756P. Appearance Description for Standard Configuration The built-in ports of S3756P are: 48 gigabit Ethernet RJ45 ports, 8 10GE Ethernet SFP+ ports, 1 Console port. See table 1-1. Table 1-1 Attributes of the built-in port... -
Page 5: S3756P Systematic Characteristic Parameters
With swap function. It can be used to Rst button switch POE indicator. Figure 1-2 The back template of the S3756P switch Table 1-3 Parts at the back template of the S3756P switch Abbrev. Name Description SFP+ 8 10G ports... - Page 6 S3756P Hardware Installation Manual RFC 1157 SNMP v1/v2 RFC 1213 MIB II Network management standard RFC 1757 RMON 1,2,3,9 Flash Memory: 16M Bytes Memory SDRAM: 512Mbytes; 48 10/100/1000BASE-T ports 8 10GE Ethernet SFP+ ports Standard configuration 1 Console port 442.50×315×44 Dimensions mm (W×D×H)
-
Page 7: Rohs Description
S3756P Hardware Installation Manual ROHS Description - 4 -... -
Page 8: Chapter 2 Installation Preparation
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on or off abruptly and frequently. To restart up the switch of S3756P, you have to open the power on-off after the power is cut down for three to five seconds. -
Page 9: Safety Principles For Live Working
S3756P Hardware Installation Manual Read the installation guide carefully before you operate the system. Only professionals are allowed to install or replace the switch. Pull out the AC power socket and close the direct-current power before operating on the machine box or working beside the power source. -
Page 10: Electrostatic Discharge Damage Prevention
S3756P Hardware Installation Manual 2.2.4 Electrostatic Discharge Damage Prevention Electrostatic discharge may damage devices and circuits. Improper treatment may cause the switch to malfunction completely or discontinuously. Move or locate the devices according to the measures of electrostatic discharge prevention, ensuring the machine box connects the ground. -
Page 11: Power Requirements
2.4 Installation Tools and Device The tools and devices to install the S3756P switch are not provided by the S3756P switch. You yourself need to prepare them. The following are the tools and devices needed for the typical installation of the S3756P switch: ... - Page 12 S3756P Hardware Installation Manual Ethernet cable Other Ethernet terminal devices Control terminal - 9 -...
-
Page 13: Chapter 3 Installing The S3756P Switch
Installing the machine box on the desk Installing the machine box on the cabinet 3.2.1 Installing the Machine Box on the Desk The S3756P switch can be directly put on the smooth and safe desk. Note: - 10 -... -
Page 14: Installing The Machine Box On The Cabinet
USB plug. After you connect the console port to the serial port of PC through a console cable, you can configure and monitor the switch of S3756P by running a terminal emulation software, such as super Windows terminal. The cable is provided according to the host. The communication parameters of the terminal serial port can be set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic control. - Page 15 One end of the cable is a mini USB plug and the other end is a 9-hole plug (DB9). The Mini USB plug is put into the socket of the console port on S3756P. The inner line connection in the cable is shown in figure 3-4.
-
Page 16: Connecting 10G Ethernet Sfp+ Ports
Figure 3-4 Cable connection at the console port 3.3.2 Connecting 10G Ethernet SFP+ Ports S3756P switch has 8 10G SFP+ ports. Each port has its corresponding indicator: TE1~TE8. You can connect the SFP+ optical module to the SFP+ port and then you can connect other Ethernet terminal devices through the optical cable. - Page 17 Figure 3-6 RJ-45 connector of the console port Because the 48 10/100/1000Base-T ports of S3756P support the MDI/MDIX self-identification of the cable, S3756P can adopt five types of direct-through/cross network cables when it connects other Ethernet terminals. Figure 3-7 Connecting the 1000Base-TX port and other Ethernet terminals Note: The machine in the figure does not represent the material S3756P.
-
Page 18: Checking After Installation
S3756P Hardware Installation Manual Sending/receiving the normal phase of data 0 TP0+ Sending/receiving the paraphase of the data 0 TP0- Sending/receiving the normal phase of data 1 TP1+ Sending/receiving the normal phase of data 2 TP2+ Sending/receiving the paraphase of the data 2... -
Page 19: Chapter 4 Maintaining Switch
S3756P Hardware Installation Manual Chapter 4 Maintaining Switch Caution: Before opening the machine box, make sure that you have released the static you carried and then turn off the power on-off of the switch. Before operating any step in Appendix B, read the section “Safety Advice”. -
Page 20: Closing Machine Box
S3756P Hardware Installation Manual When the cover is opened, put it aside. The mainboard of the system appears. Note: After taking off the cover, put it horizontally and avoid it to be crushed or collided. Otherwise, the machine box is hard to install. -
Page 21: Chapter 5 Hardware Fault Analysis
S3756P Hardware Installation Manual Chapter 5 Hardware Fault Analysis The part describes how to remove the fault from the switch. 5.1 Fault Separation The key for resolving the systematic faults is to separate the fault from the system. You can compare what the system is doing with what the system should do to detect the fault. -
Page 22: Indicator Description
9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. 5.2 Indicator Description The following table shows the indicators of the S3756P switch and their description: Abbrev. Name... - Page 23 S3756P Hardware Installation Manual Disclaimer of warranty provides no evident or hinted guarantee towards the contents of this manual. In no event, except for the company’s breach of law, shall the company be liable for incidental, consequential, indirect or special damages of any kind or for loss of profits or revenue or loss of business arising out of or relating to this manual.
