Page 1: User Guide

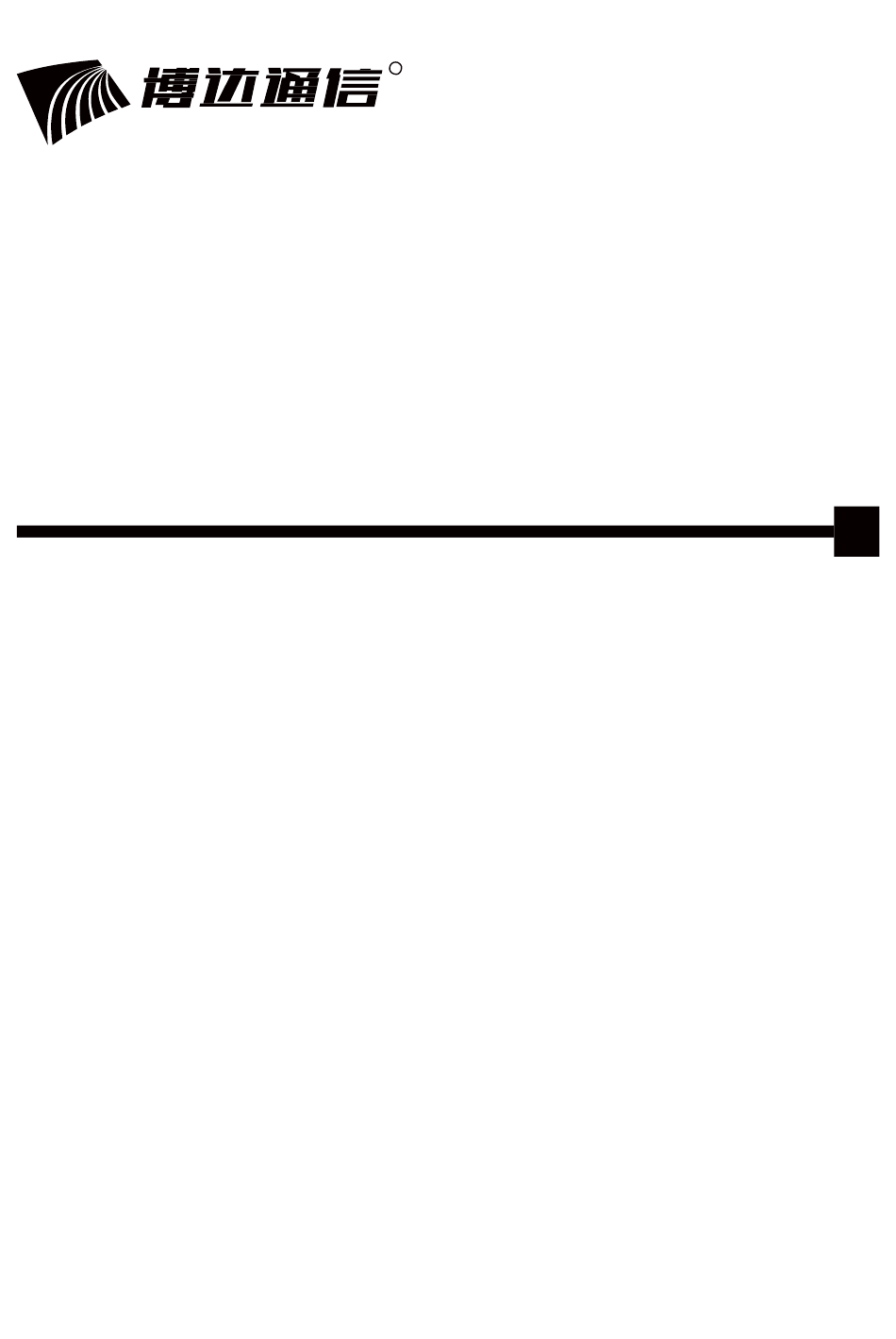

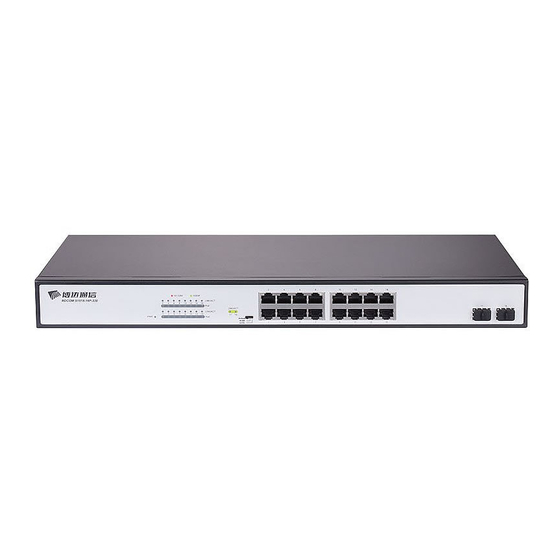

专 业 网 络 科 技 User Guide Gigabit PoE Switch S1510-8P-150/S1518-16P-330/S1526-24P-400 Gigabit Uplink PoE Switch S1210-8P-150/S1218-16P-330/S1226-24P-330... -
Page 2: Product Appearance
In no event shall BDCOM be responsible or liable, directly or indirectly, for any damage or loss caused or alleged to be caused by or in connection with the manual. - Page 3 The Front Panel of the S1526-24P-400 Consists of 24-Port 10/100/1000M Auto-Negotiation Ethernet RJ45 Ports, 2-Port Gigabit SFP slot. The LED indicators also on located on the panel. 10/100M 1000M Default VLAN CCTV Port status indicator DIP switch 24*10/100/1000Mbps PoE Port 2*1000Mbps SFP slots LED Indicator Color...
-
Page 4: Package Contents
Power socket Connect the female connector of the power cord here, and the male connector to the AC (Alternating Current) power outlet. Please make sure the voltage of the power supply meets the requirement of the input voltage Grounding The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. - Page 5 Rack Installation To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1. Check the grounding and stability of the rack. 2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as illustrated in the following figure.
- Page 6 Appendix Specification Model S1510-8P-150 S1518-16P-330 S1526-24P-400 Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at 10*10/100/1000Mbps 16*10/100/1000Mbps 24*10/100/1000Mbps Auto-Negotiation RJ45 Port Auto-Negotiation RJ45 Port Auto-Negotiation RJ45 Port Port 2-Port Gigabit SFP Port PoE Port Port1~8 Port1~16 Port1~24 PoE Power Output 32W Max...
- Page 7 Please note that the manual shown here are for reference purposes only. It does not constitute a legal contract or a commitment between BDCOM and any person or entity. Although every effort has been made to ensure all the information in this manual is correct,inaccuracies or typographical errors may still occur.
- Page 8 Port status indicator 1*10/100/1000Mbps RJ45 & 1*1000Mbps share SFP slots PoE priority： The Front Panel of the S1218-16P-330 Consists of 16-Port 10/100M Auto-Negotiation Ethernet RJ45 Ports, 2-Port Gigabit TP/SFP Combo Port. The LED indicators are also on located on the panel. Port status indicator 2*10/100/1000Mbps RJ45 &...
- Page 9 • LED Indicator Color Description Off: No Power supply. Green Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is successfully LNK/ACT Green established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port.
-
Page 10: Safety Precautions
Installation Package Contents ￭ PoE Switch..............1 PCS ￭ AC Power Cord...............1 PCS ￭ User Guide..............1 PCS • Accessories(Rack angle iron*2, Rack installation bolt*8, plastic cushion*4) Caution： If any part is missing and damaged, please contact your local agent immediately. Safety Precautions To avoid any device damage and bodily injury caused by improper use, please observe the following rules. -
Page 11: Rack Installation
Rack Installation To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1. Check the grounding and stability of the rack. 2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as illustrated in the following figure. -
Page 12: Appendix: Specification
Appendix: Specification Model S1210-8P-150 S1218-16P-330 S1226-24P-330 EEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, Standard IEEE802.3af, IEEE802.3at 8*10/100Mbps 16*10/100Mbps 24*10/100Mbps A u t o - N e g o t i a t i o n A u t o - N e g o tia t i o n A u t o - N e g o tia t i o n Port RJ45 Port... - Page 13 上海博达数据通信有限公司 Shanghai Baud Data Communication Co., LTD. 网址Web: www. bdcom.com.cn 地址Add: 上海浦东张江高科技园区居里路123号 N o.123, Juli Road,Pudong Zhangjiang High-Tech Park, Shanghai 邮编Zip Code: 201203...
