Manitowoc Grove RT9130E-2 Service And Maintenance Manual page 118

HYDRAULIC SYSTEM
Item
1 Barrel
2 Piston
3 Setscrew
4 Seal
5 Backup Ring
6 O-ring
7 Spacer
8 Piston
9 Plug
10 Wear Ring
11 Seal
12 O-ring
13 Backup Ring
14 Outer Rod
15 Spacer
16 Inner Rod
17 Outer Cylinder head
18 Wear Ring
19 O-ring
20 Backup Ring
21 Buffer Seal
22 Rod Seal
23 Backup Ring
24 Wiper Ring
25 Inner Cylinder Head
26 Wear Ring
27 O-ring
28 Backup Ring
29 Buffer Seal
30 Rod Seal
31 Backup RIng
32 Wiper Ring
33 Counterbalance Valve
34 Adapter
CAUTION
Improper installation of seals could cause faulty cylinder
operation.
2-76
Description
Published 11-22-2016, Control # 345-12
RT9130E-2 SERVICE MANUAL
14. Install the buffer seal and deep Z rod seal inside the
head ensuring the seals are assembled properly and
installed in the correct direction.
15. Install the O-ring and backup ring onto the outside of the
outer cylinder head.
16. Install the outer cylinder head onto the outer cylinder
rod.
17. Install the wear ring onto the spacer and install the
spacer onto the rod.
18. Install the O-ring and backup rings into the piston and
install the piston onto the outer cylinder rod. Secure the
piston in place with the setscrew.

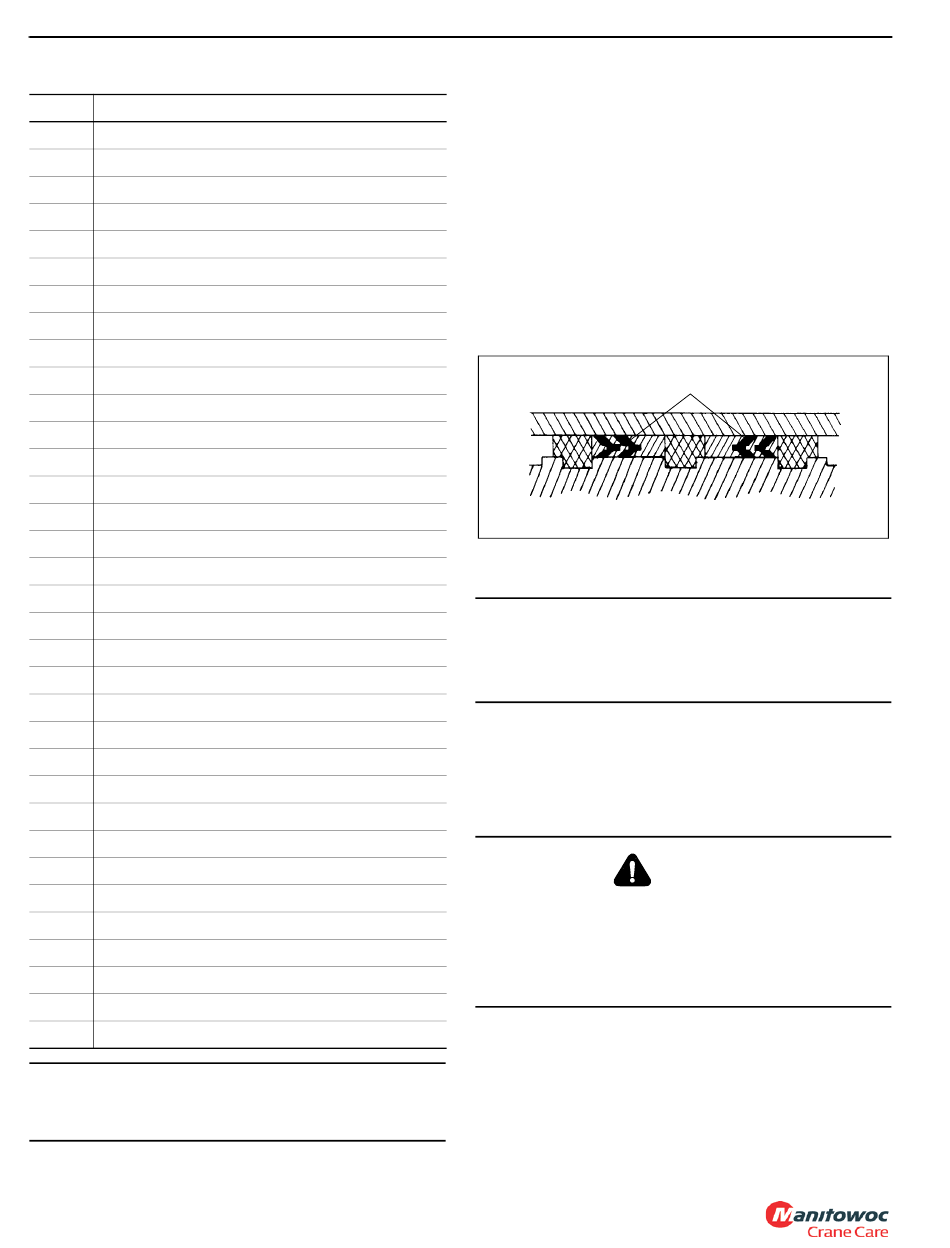

Hydrolock Piston Seals
19. Install the hydrolock seals onto the piston. Refer to
Figure 2-46 for proper seal orientation.
CAUTION
Possible Equipment Damage!
Avoid scratching or damaging the grooved or gland
surfaces or the ring and seals.
20. Lubricate the outer cylinder rod assembly with clean
hydraulic oil and install the rod assembly into the
cylinder barrel with a slight twisting motion.
21. Using a spanner wrench, secure the outer cylinder head
to the cylinder barrel.
Flying Parts Hazard!
Use only a source of controlled hydraulic oil pressure to
cycle or pressurize the cylinder.
Parts can fly from the cylinder at dangerous speeds when
using air pressure.
22. Pressurize and cycle the cylinder with hydraulic oil
pressure. Test pressure should be 5250 psi (36197.4
kPa) (rod side pressure) and 3500 psi (24131.6 kPa)
extended (piston side pressure). Check for proper
operation and any leakage.
FIGURE 2-46
CAUTION
