Manitowoc Grove RT9130E-2 Service And Maintenance Manual page 145

RT9130E-2 SERVICE MANUAL
Item
1 ECM, 30 Amp Fuse (F1)
2 Swivel, 5 Amp Fuse (F2)
3 Carrier, Center Module, 25 Amp Fuse (F3)
4 Carrier, Center Module, 30 Amp Fuse (F4)
5 Carrier, Front Module, 30 Amp Fuse (F5)
6 Diagnostic Connector, 5 Amp Fuse (F6)
7 Power Control Relay, 5 Amp Fuse (F7)
10 120 Ohm Resistor, Starter Lockout Circuit
Grove
1
2
3
4
5
6
7
10
Description

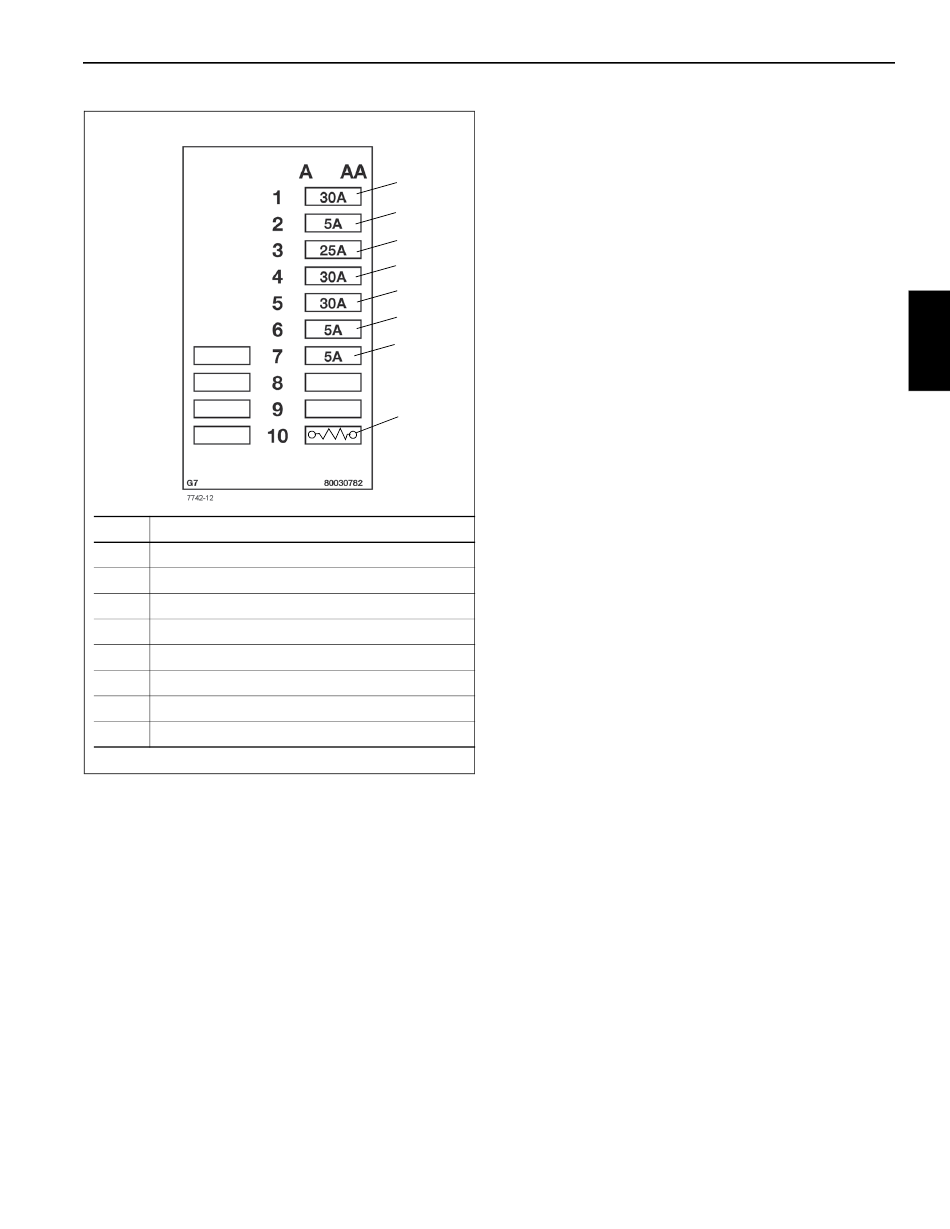

FIGURE 3-6
Published 11-22-2016, Control # 345-12
For the grid heater relay coils to energize, the battery must
be connected and signals from the engine ECM must be
sent.
ELECTRICAL SYSTEM
3-5
