HYDRAULIC SYSTEM
1
7
8020-2
2-64
2
3
Item Description
1 Main Directional Control Valve
2 Center Mid/Outer Mid Tele Extend Circuit
3 Inner Mid Tele Extend Circuit
4 Case Drain Manifold
5 Tele Cyl Charge Valve Manifold
6 Swivel
7 Pressure Reducing Sequence Valve
Published 11-22-2016, Control # 345-12
RT9130E-2 SERVICE MANUAL
5
6
4

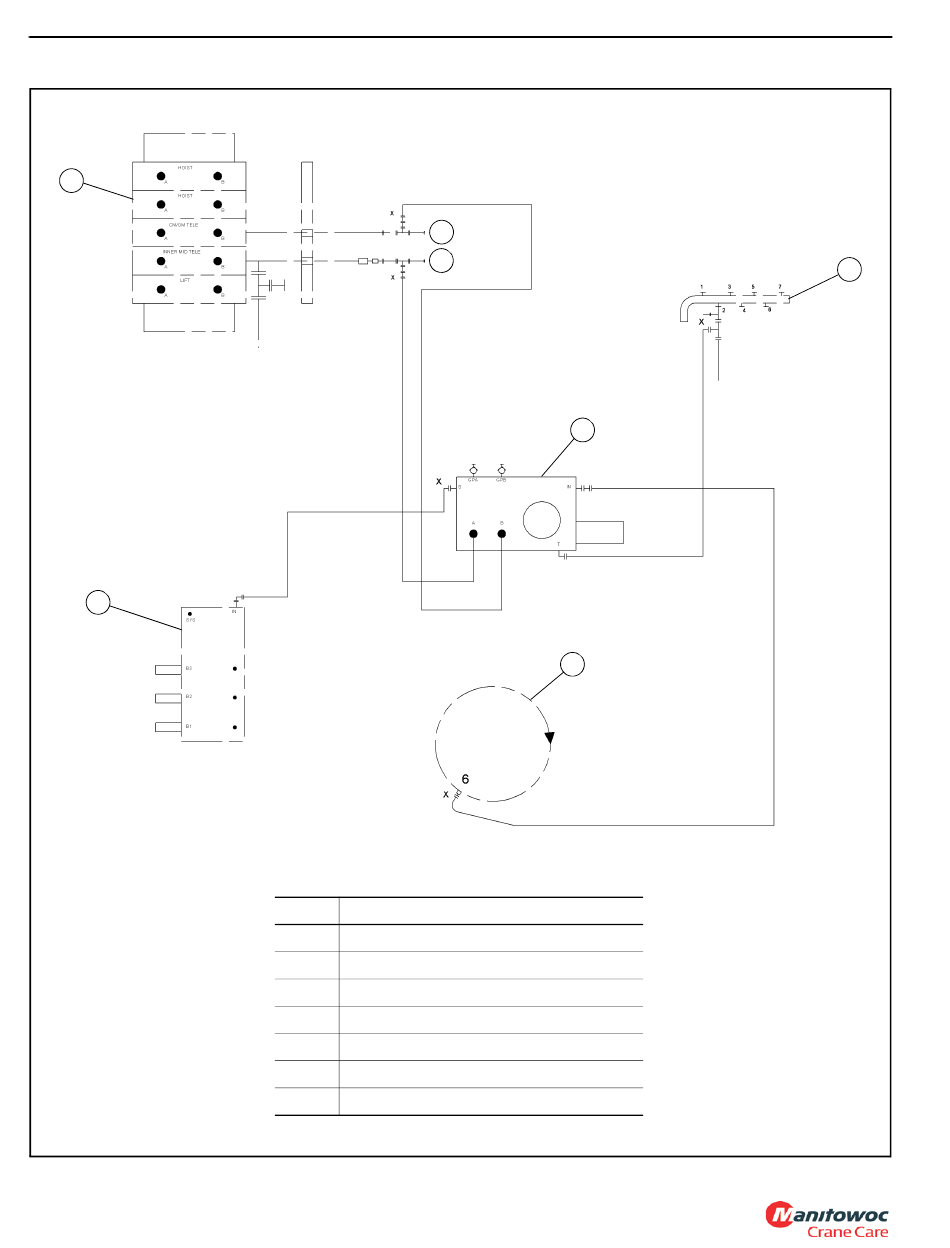

FIGURE 2-38
