Manitowoc Grove RT9130E-2 Service And Maintenance Manual page 261

RT9130E-2 SERVICE MANUAL
7
9

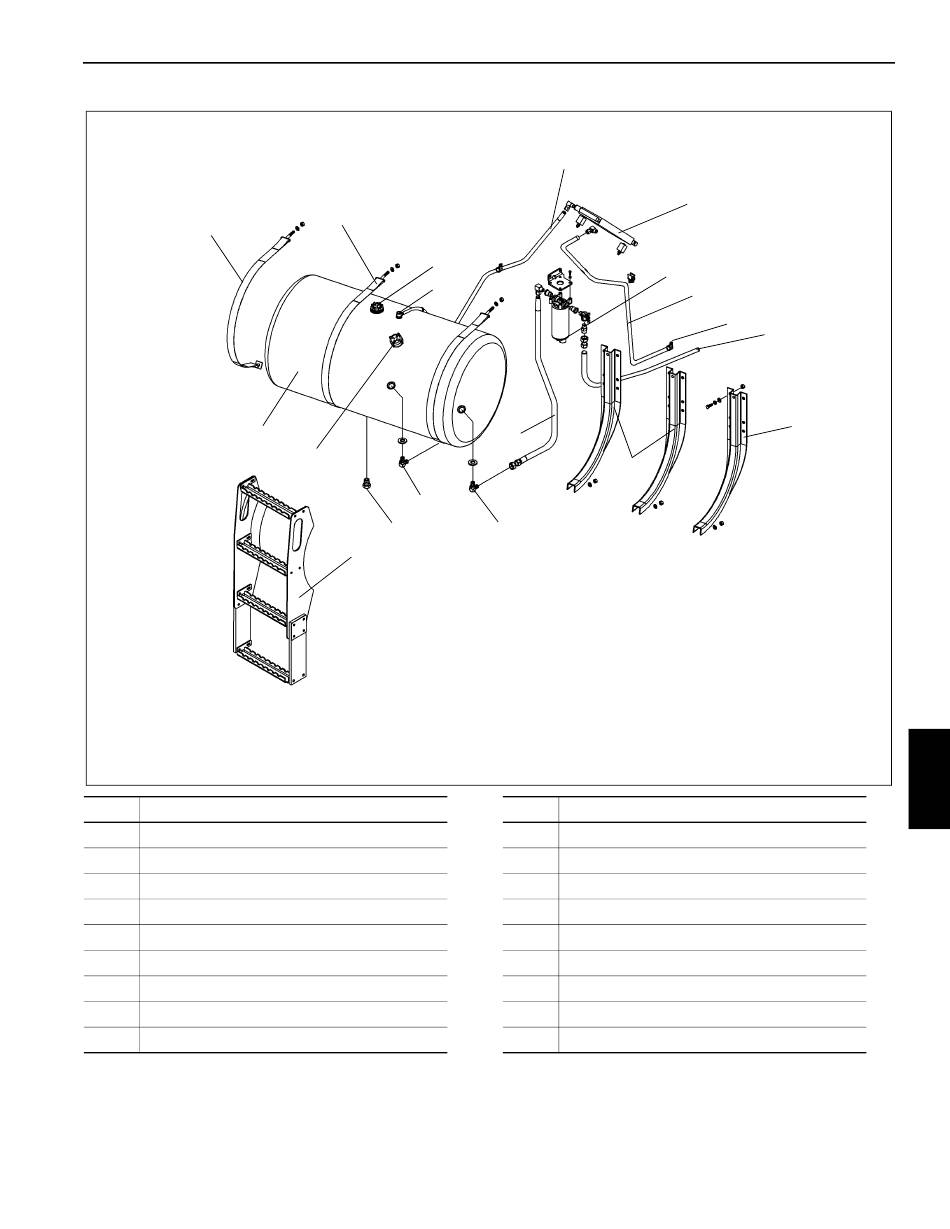

Item Description
1 Fuel Quantity Sending Unit
2 Filler Cap
3 Fuel Filter
4 Fuel-Water Separator
5 Fuel Supply
6 Fuel Return
7 Strap Assembly
8 Steps
9 Fuel Tank
Grove
7
1
17
2
15
14
8
Published 11-22-2016, Control # 345-12
12
3, 4, 18
5
13
16
Item Description
10 Oil Cooler
11 Line To Engine
12 Line To Return Port On Tank
13 Bracket
14 Drain Port
15 Return
16 Supply
17 Vent
18 Water-in-Fuel Sensor
POWER TRAIN
10
6
18
11
13
6076
FIGURE 7-2 7
7-7
