Field Replaceable Units (FRUs)
FRU Removal and Replacement

Removing the System Board

To remove the system board, do the following:

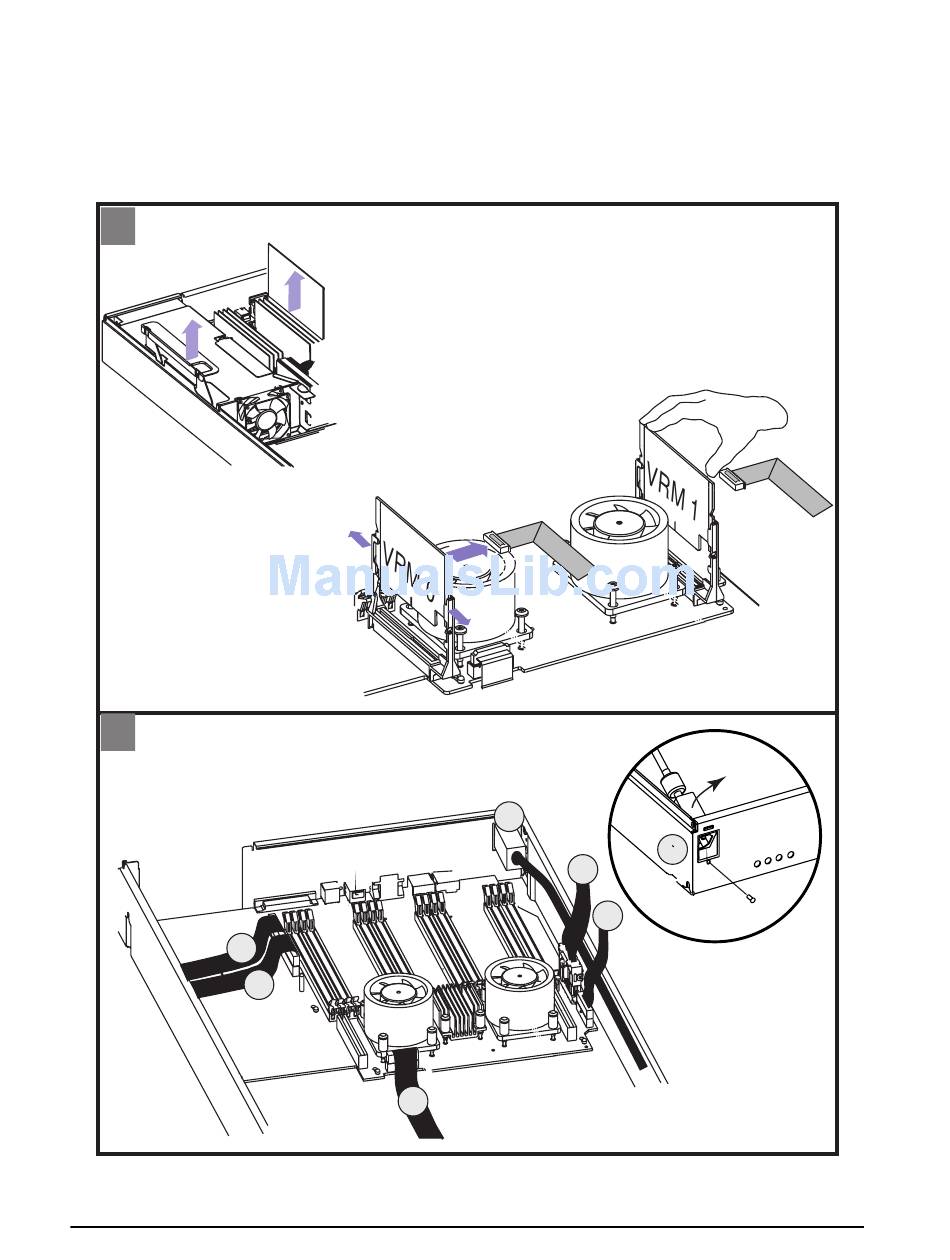

Figure 4-11. Removing the System Board
1 1.
Lift PCI handle to remove PCI cage from workstation
1
- Remove screw from back of workstation to remove power plug
2
- Disconnect five connectors from system board (2-6)
6
5
96
2.
2 Remove memory cards from system board
3.
Remove VRM connectors and
VRM 0 and VRM 1 cards
4
power plug
1
1
2
3 power plug
screw
