Field Replaceable Units (FRUs)
FRU Removal and Replacement

PCI Cage

To remove the PCI Cage, do the following:

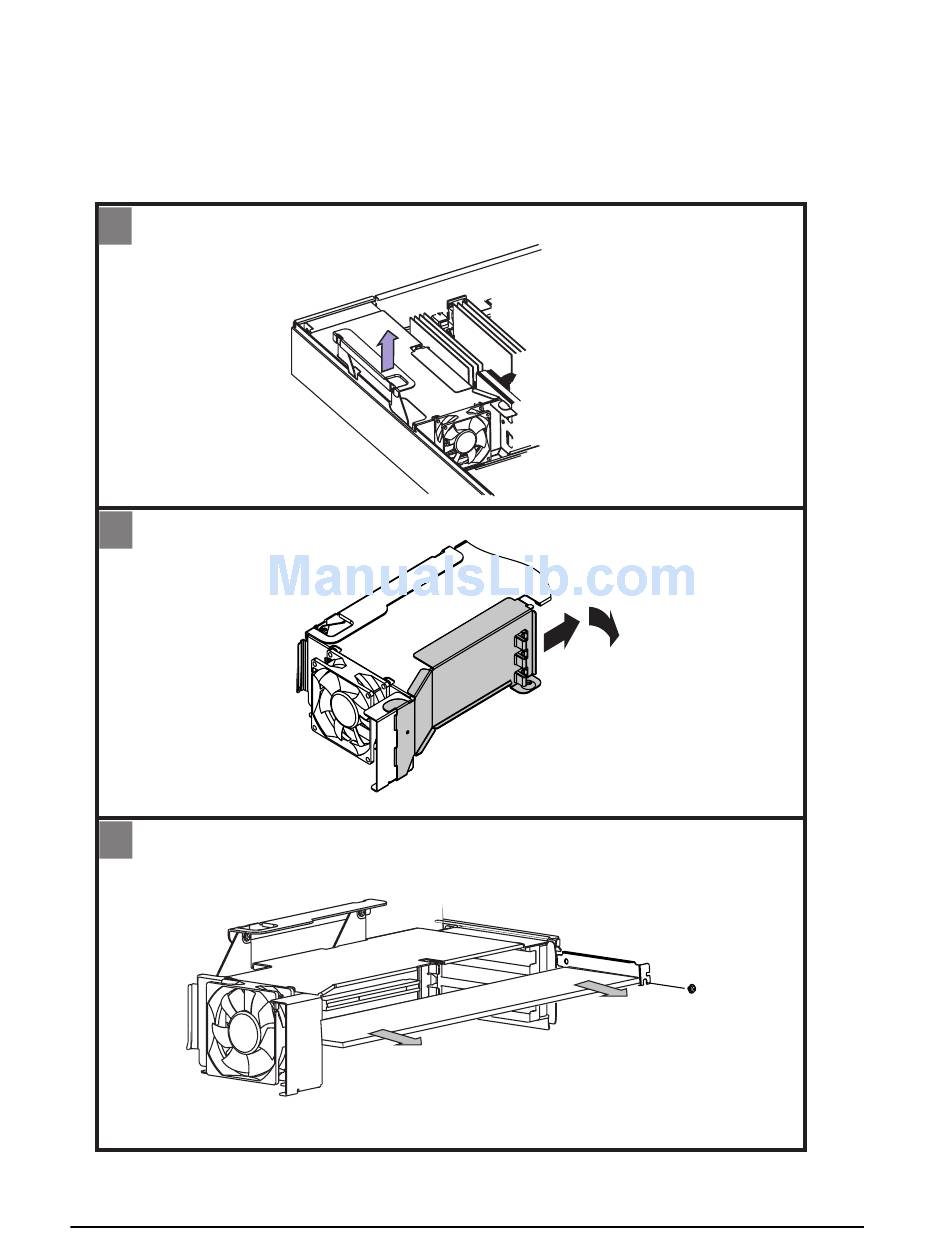

Figure 4-9. Removing the PCI Cage
1
- Lift PCI handle to remove cage from workstation
1. Slide PCI retainer back
2
2. Lift off cage
- Remove screw to remove card
3
- Slide I/O card out as shown
94
2
D
A R
1
I C
R
I N E
P C
T A
R E
Bulkhead
screw
