HP Visualize j6000 Supplementary Manual page 89

Removing the Hard Disk Drives
To remove a hard disk drive do the following:

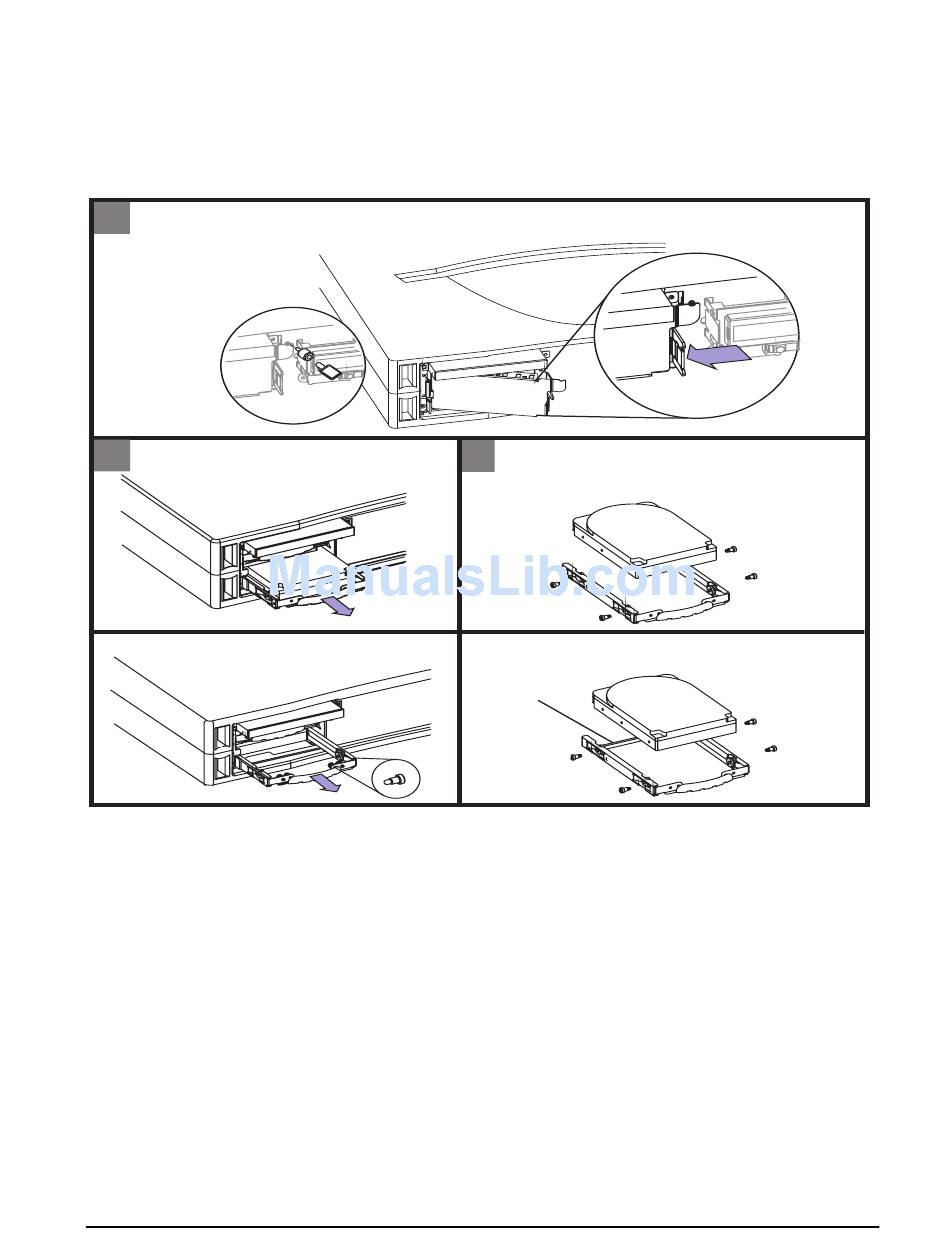

Figure 4-4. Removing the Hard Disk Drives
1. Remove optional locking thumbscrew
1
2. Press HDD cover release tab to remove cover
Locking
Thumbscrew
Removing a HDD
2
- Pull out bracket
- Remove bracket and HDD
Adding a HDD
- Remove bracket and screws
To replace the hard disk drives, perform the above steps in reverse. You should make sure
that the disks are firmly seated. Reinstall the hard disk drive cover and optional locking
thumbscrew, if applicable.
Chapter 4
1
Removing a HDD
3
- Install hard drive in bracket
- Insert in HDD cage till firmly seated
Adding a HDD
- Carefully remove bar
- Install HDD
Carefully
remove and
discard
Field Replaceable Units (FRUs)
FRU Removal and Replacement
2
89
