Internal Components

This section describes the internal components of the J6000 workstations.
For instructions on how to remove the workstation's top panel in order to access these
internal components, as well as instructions on how to remove and replace these internal
components to service them, see Chapter 4.

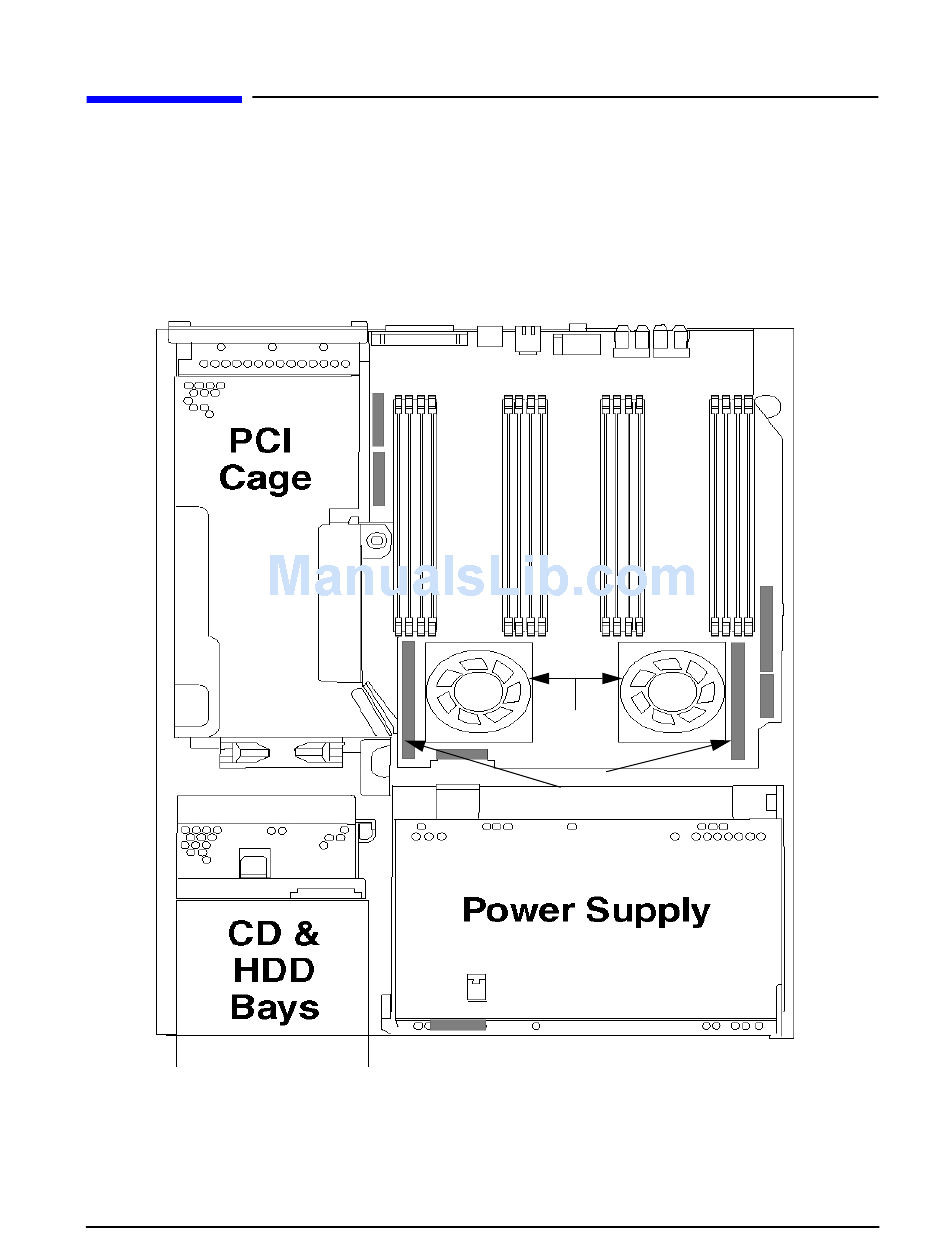

Figure 1-7. Internal Components of the J6000
System Board
The system board in the J6000 contains the PA-RISC microprocessors, memory slots, and
PCI cage as well as connectors to other components.
Chapter 1
16 Memory Slots
Processor 0
Product Information
Internal Components
Processor 1
VRMs
