Replacing the System Board

To replace the system board, perform the above steps in reverse. Pay close attention to
installing the PCI cage.

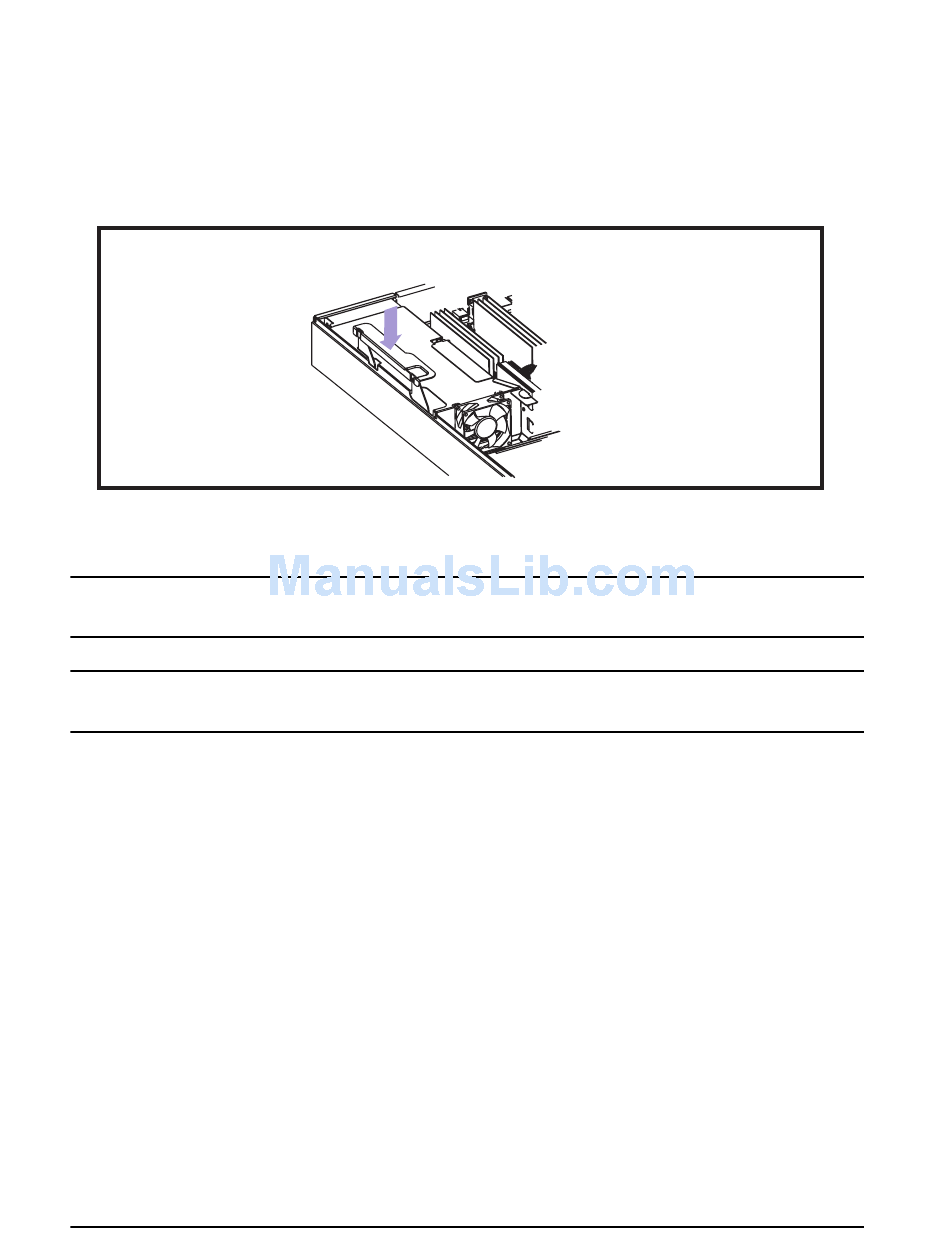

Figure 4-13. Replacing the System Board
- Reverse steps
- Install PCI cage in workstation, with handle up, then press down.
NOTE If you are replacing the system board on a desk side unit, go into the Boot
Console Handler (BCH) and set the fan choice to desk side.
NOTE
Be sure to install the four serial port screws BEFORE installing the two
system board mounting screws.
98 Chapter 4
