Field Replaceable Units (FRUs)
FRU Removal and Replacement
Power Supply
To remove the power supply, do the following:

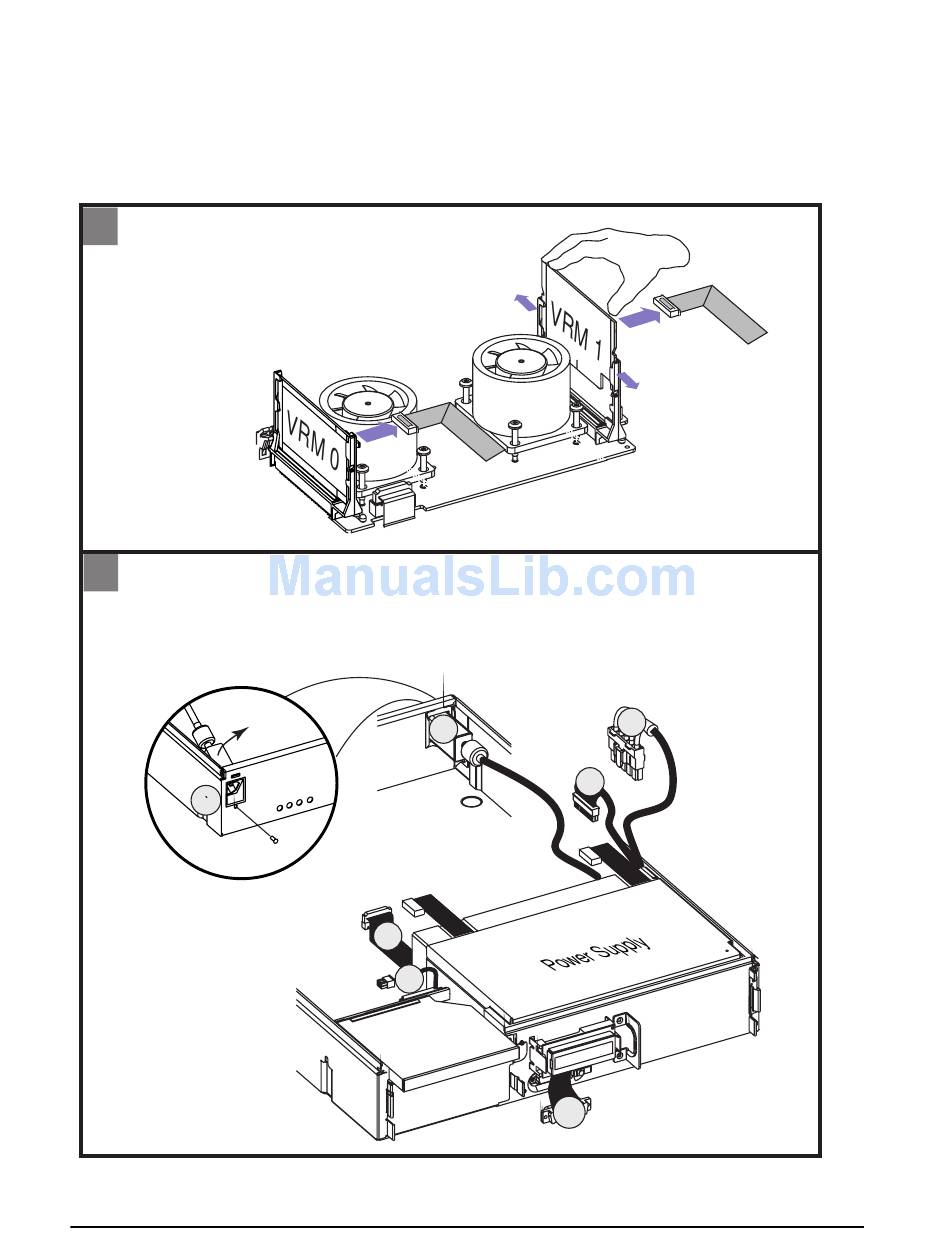

Figure 4-7. Removing the Power Supply
- Remove two VRM connectors
1
- Remove VRM 1 board as shown
2
- Remove screw from back of workstation to remove power plug
- Disconnect five connectors (2-6)
power plug
1
screw
92
VRM
connector
1
Back
5
6
VRM
connector
3
2
4
Chapter 4
