System Unit Rear Panel Connectors

System Unit Rear Panel Connectors
This section describes the connectors on the system
unit's rear panel
NOTICE: To maintain electro-magnetic and radio frequency
emissions compliance, verify that all cables are
fully seated and properly fastened.

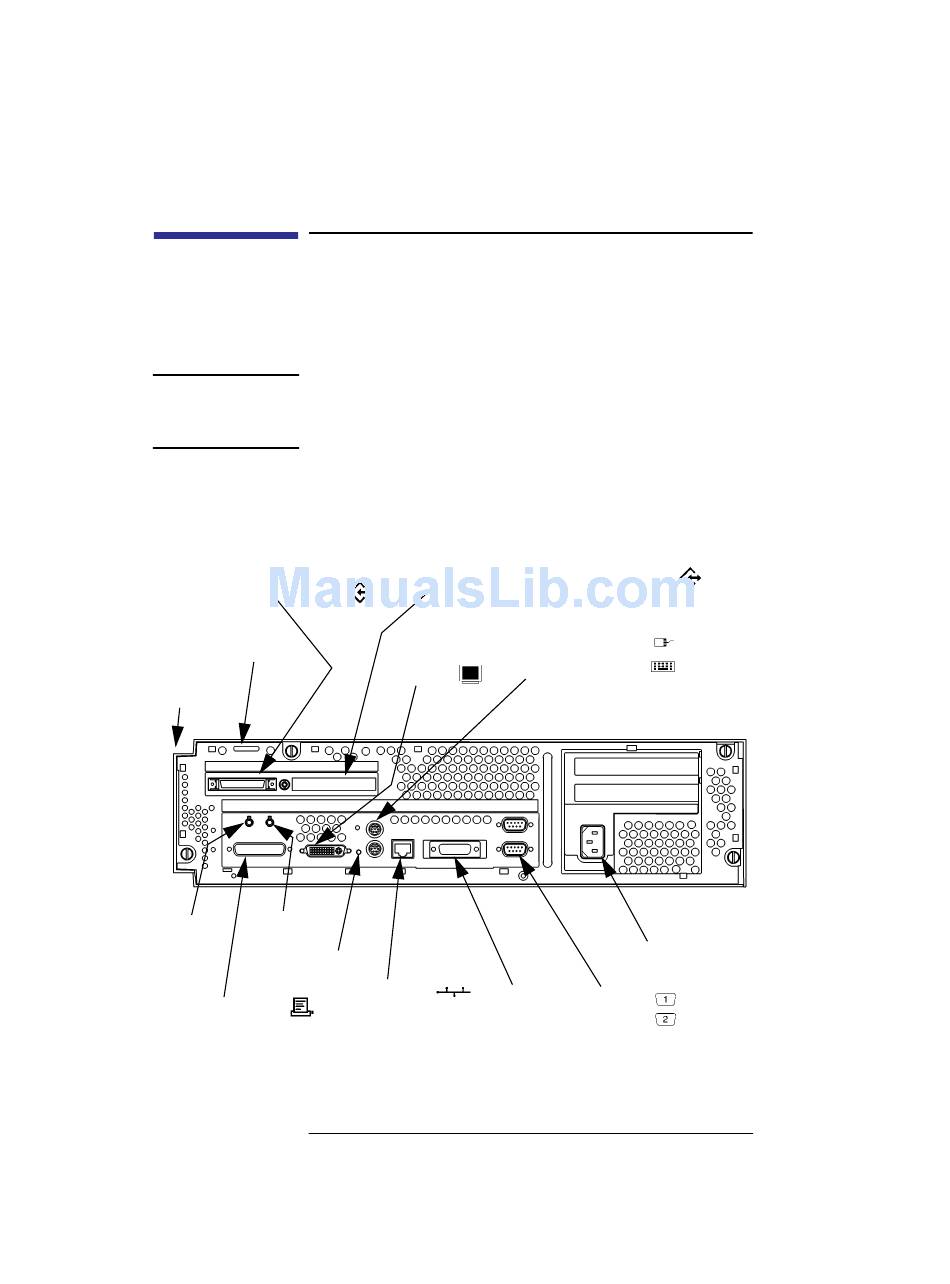

Figure 2 shows the locations of the connectors on the
system unit's rear panel.
Single-Ended
SCSI
Security
Loop
Pullout
Card
Audio
Audio
Line Out
Line In
TOC
HP Parallel
Figure 2
10
Fast, Wide SCSI or
Ultra, Wide SCSI (B132L+/B180L only)
PS/2 Mouse
PS/2 Keyboard
Monitor
LAN-TP LAN-AUI
System Unit Rear Panel Connectors
Power
Serial 1
Serial 2
