Field Replaceable Units
FRU Removal and Replacement
Perform the following steps to remove the backplane:
1 Disconnect the two fan connectors and the speaker con-

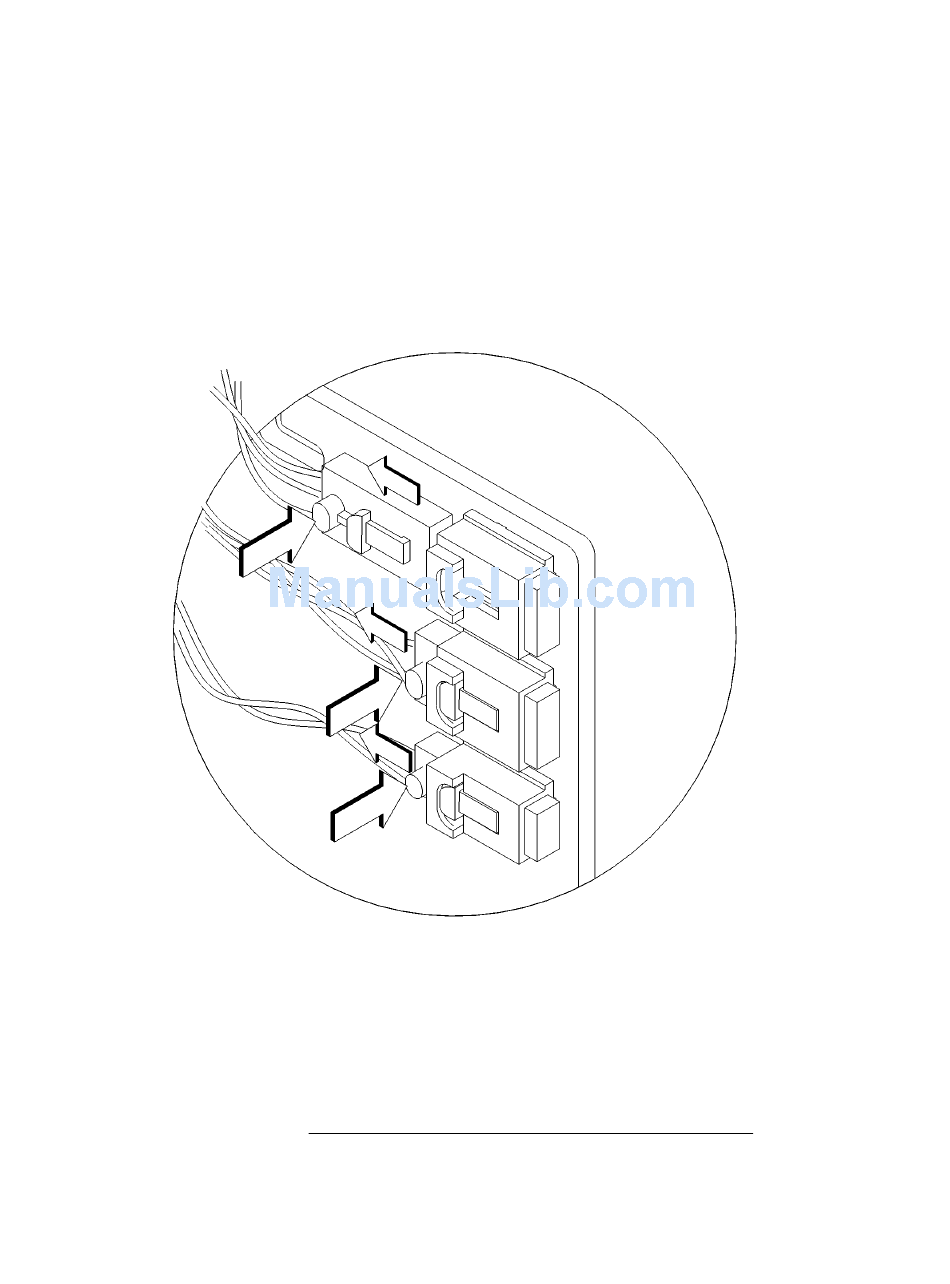

Figure 48
Disconnecting the Speaker and Fan Connectors
2 Pull the fan and speaker cables out of the slots in the
140
nector by pushing in on the connectors locking tab and
pulling the connector, as shown in Figure 48.
backplane and fan shroud and move them so that they are
away from the backplane.
