2 To remove a second level cache board, swing the ejector

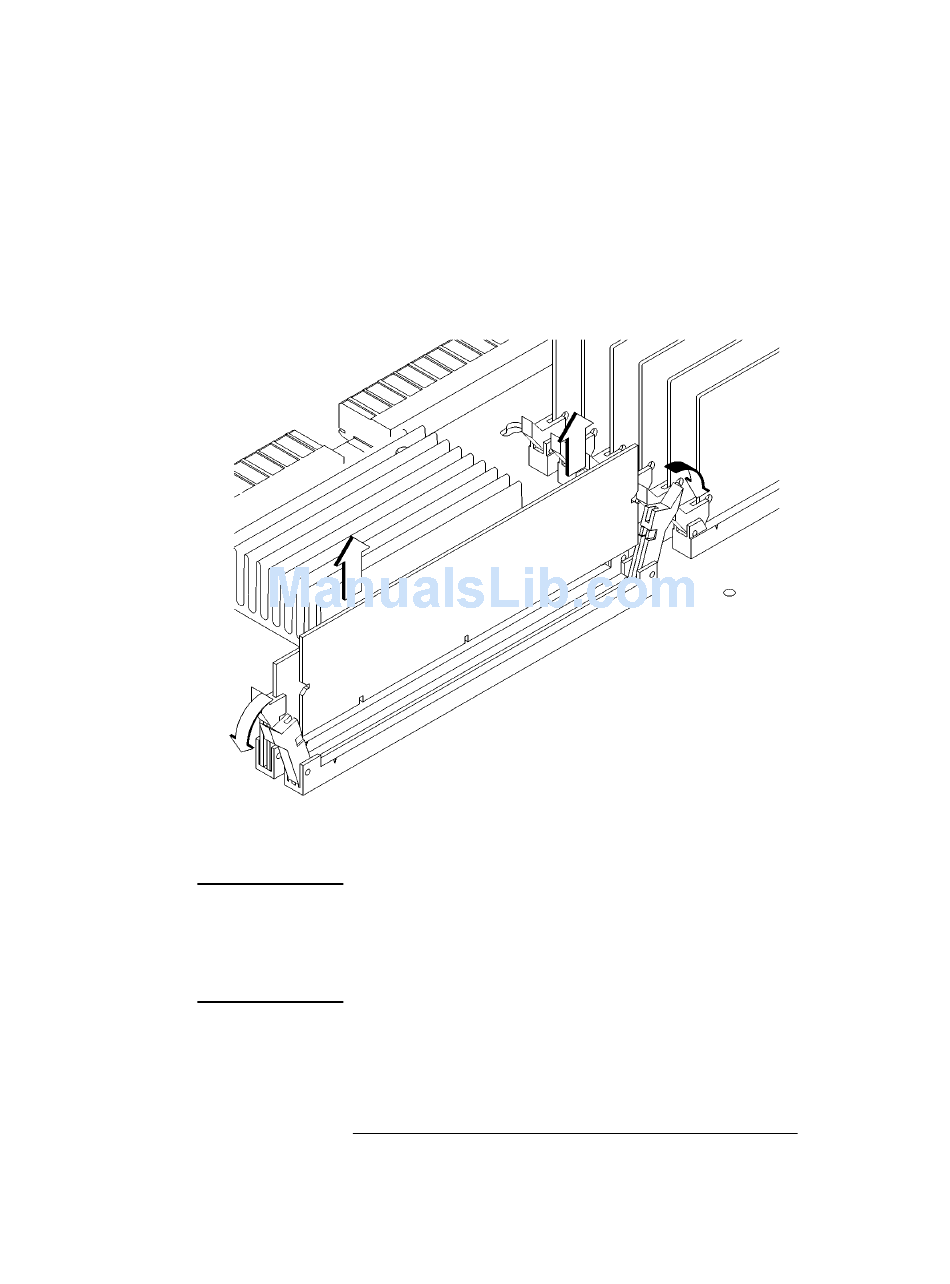

Figure 27

Removing Second Level Cache Boards

NOTICE: You must install cache boards in pairs of equal
size. When installing cache boards, line the cache
board up with the guides making sure that the
keying notches along the connector edge of the
board are away from the memory modules
tabs on each side of the board out and away from the
board, as shown in Figure 27. Lift the board up and out
of the connector and place it on a static-free surface.
