System Fans and Speaker

Before removing the fans, remove the Main Tray
Assembly from the system unit.
Perform the following steps to remove the system
fans:
1 Locate the desired fan or speaker connector on the back-

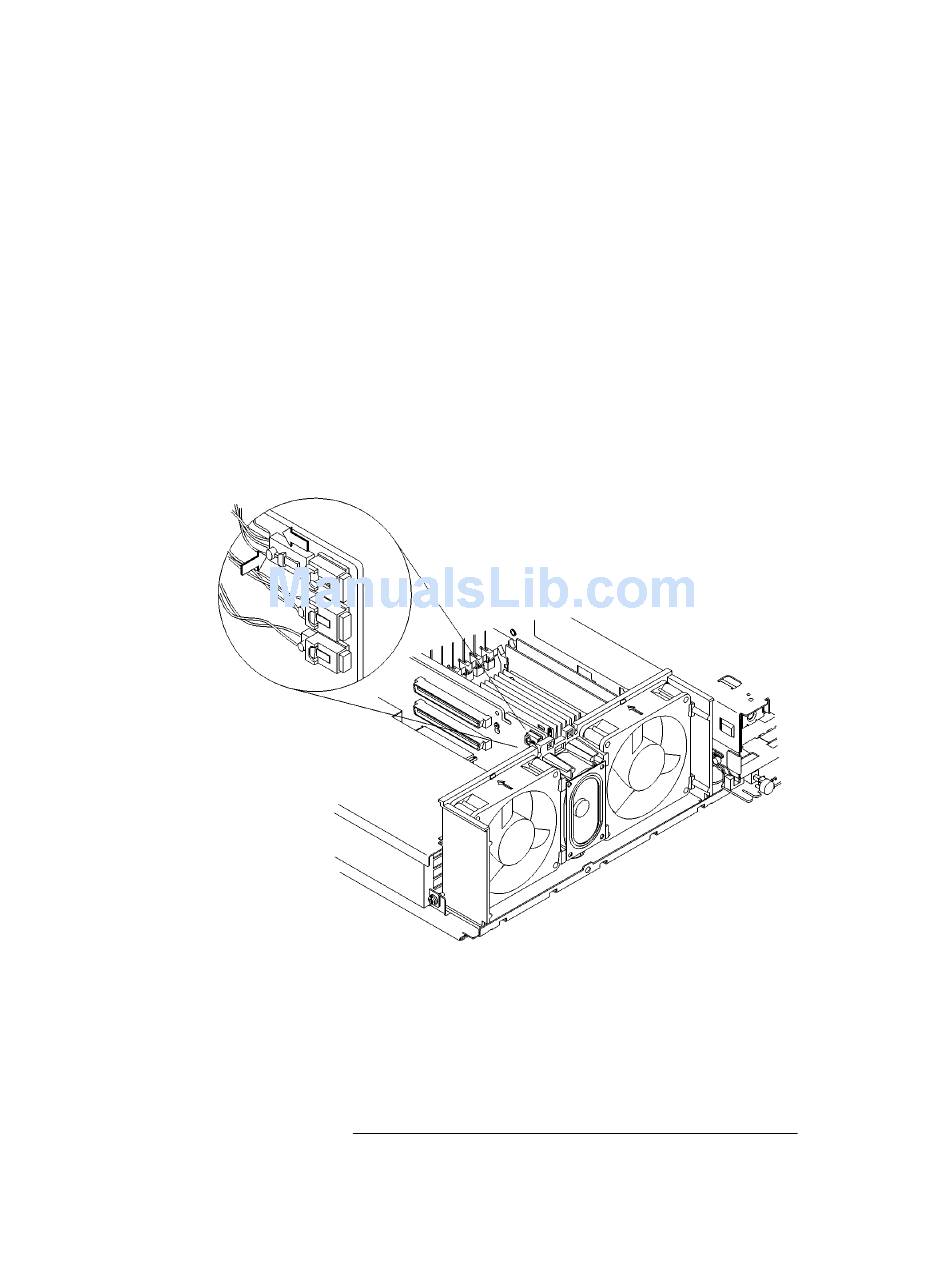

Figure 42

Disconnecting the Fan and Speaker Connectors

2 Pull up on the fan or speaker wire to remove it from the
plane, push in the tab on the connector and disconnect it
from the backplane, as shown in Figure 42.
slot in the backplane or fan shroud.
