Functional Description
4.12.3

Physical Interconnect Devices

Broadcom PHYs uses a hardware reset pin PHY_RST_L, which resets all internal nodes
to a known state. Mode pins are latched during hardware reset being deasserted. All PHYs
are reset by the PHY_RST_L signal except for the BCM8747 which is reset by
QUAD_PHY_RST_L.

4.12.4 AMC Bay

The IPMC on the ATCA-F125 is responsible for resetting the AMC bay. It initiates a reset
cycle after an AMC module is plugged in or if the payload power of the carrier board is in a
power cycle. The IPMC drives the ENABLE# signal active low as an input to the AMC
module.

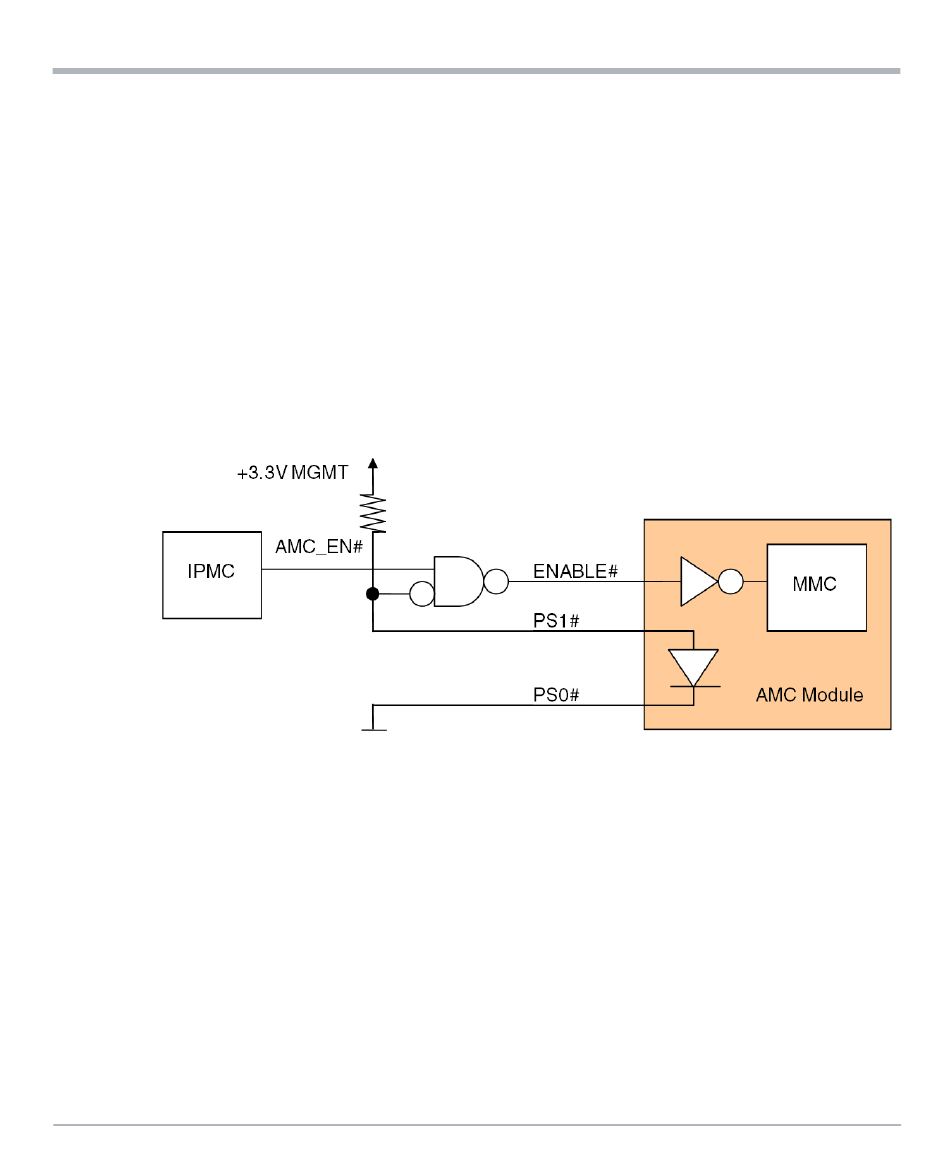

Figure 4-15 AMC Enable Logic

Broadcom BCM5709S Ethernet controller is reset in parallel to AMC by using the
MACPHY_RST_L signal generated from the power control CPLD.
4.12.5

Rear Transition Module

The ARTM-F125 does not have an MMC. During normal operation the ARTM-F125 and the
ATCA-F125 front board are treated as one reset domain using the RTM_RST_L signal from
the FPGA.
4.13

Interrupt Structure

All external interrupts belonging to the service processor interrupt structure are routed to
the P2020 QorIQ Integrated Processor. The PIC inside the P2020 QorIQ Integrated
Processor is compliant with the OpenPIC architecture.
96
ATCA-F125 (6873M Artwork) Installation and Use (6806800J94P)
