Controls, LEDs, and Connectors

3.1

Overview

3.2

Blade Layout

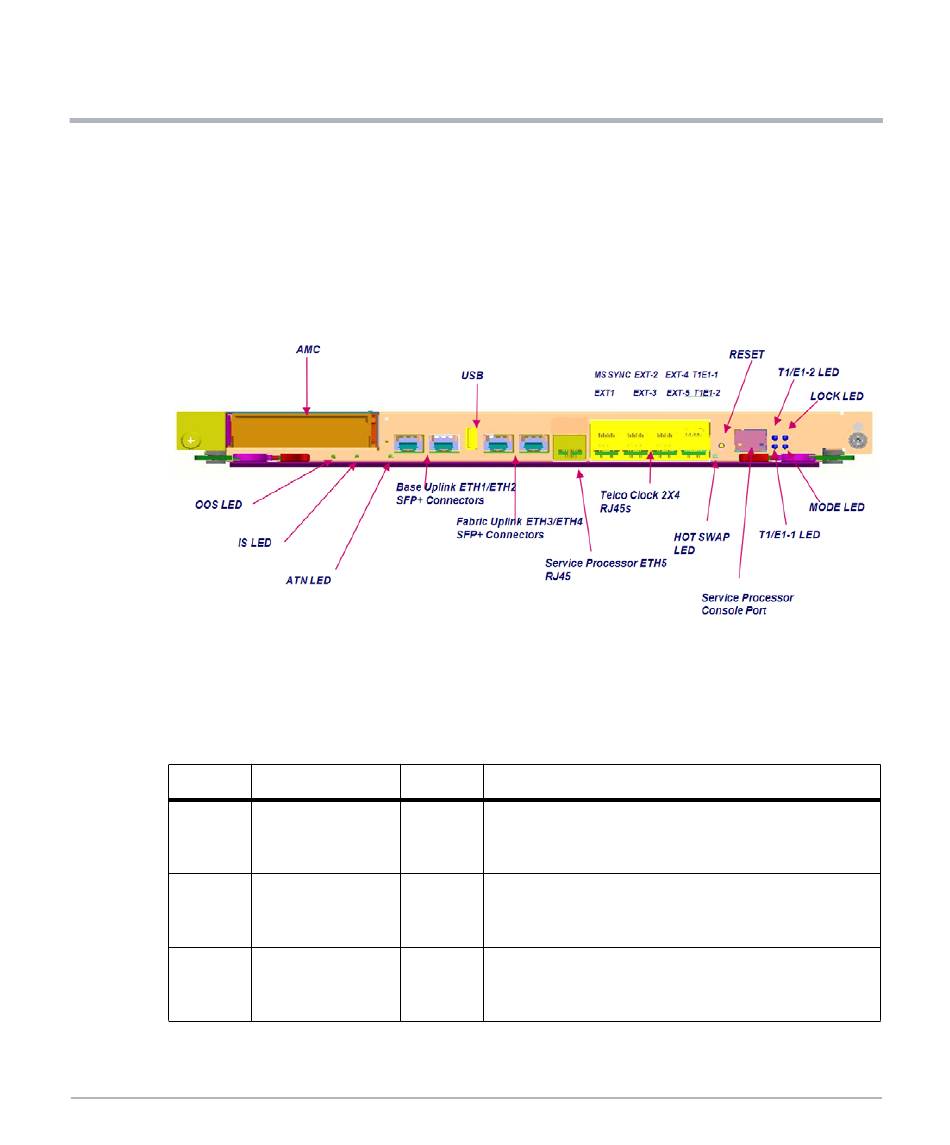

The following figure shows the front panel face plate design.

Figure 3-1 ATCA-F125 Face Plate

3.3

Face Plate LEDs

This section describes the details of the ATCA-F125 face plate LEDs.
Table 3-1
Label
OOS
IS
ATN
ATCA-F125 (6873M Artwork) Installation and Use (6806800J94P)
Face Plate LEDs
LED Color
Out of Service Red
In Service Green
Attention Yellow
Function
This LED is enabled by the IPMC upon initially entering
the M4 state. Once the HPM Agent starts up, this LED
is disabled.
This LED is enabled by HPM Agent upon initialization.
This indicates that the payload software is up and
running.
Blade attention required. This LED is controlled by
higher layer software, such as middleware or
applications
Chapter 3
51
