Hardware Preparation and Installation

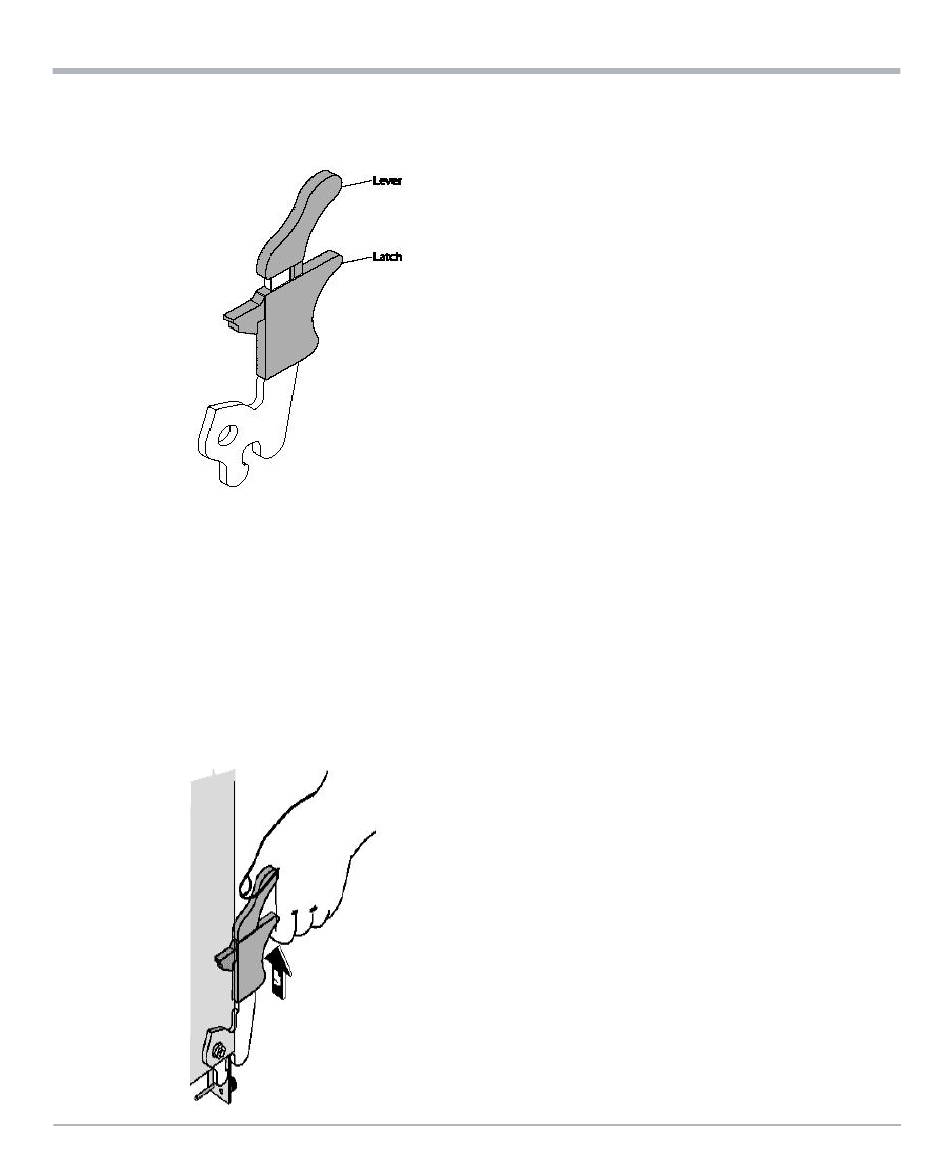

2. Ensure that the top and bottom ejector handles are in the outward position by
squeezing the lever and the latch together.
3. Insert blade into the shelf by placing the top and bottom edges of the blade in the card
guides of the shelf. Make sure that the guiding module of shelf and blade are aligned
properly.
4. Apply equal and steady pressure to the blade to carefully slide the blade into the shelf
until you feel resistance. Continue to gently push the blade until the blade connectors
engage.
5. Squeeze the lever and the latch together and hook the lower and the upper handle into
the shelf rail recesses.
6. Fully insert the blade and lock it to the shelf by squeezing the lever and the latch
together and turning the handles towards the face plate.
