Functional Description
4.12
Reset Structure
The reset structure for the ATCA-F125 is controlled by the FPGA. The block diagram below
shows the reset structure of the ATCA-F125.

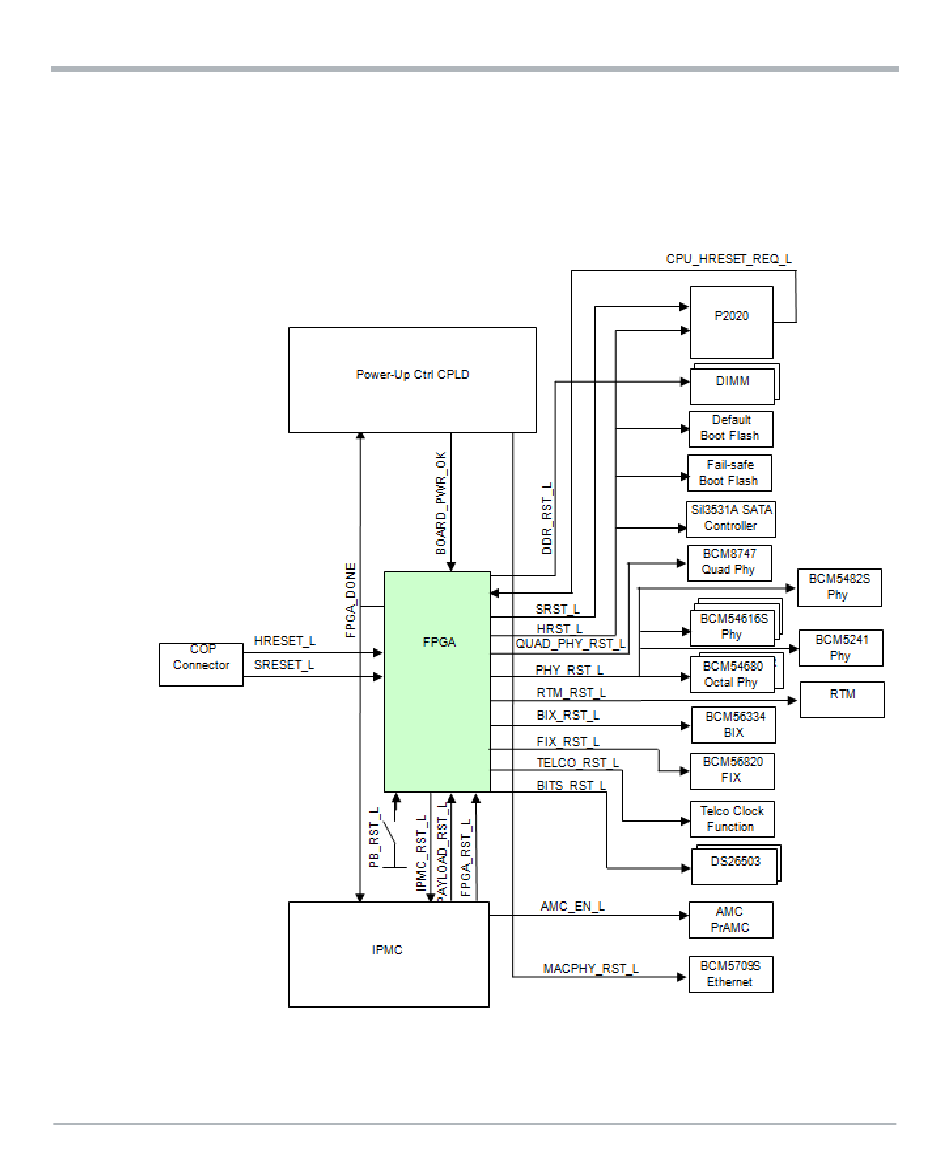

Figure 4-14 Reset Structure Block Diagram
ATCA-F125 (6873M Artwork) Installation and Use (6806800J94P)
93
