Functional Description
The BCM5709S uses an external SPI flash device to store microcontroller boot code,
configuration data, MAC addresses, etc. A 1 Mbit Atmel AT45DB011 device will be used for
this purpose.
4.10.2
Channel Cross-Connect for BCM5709S

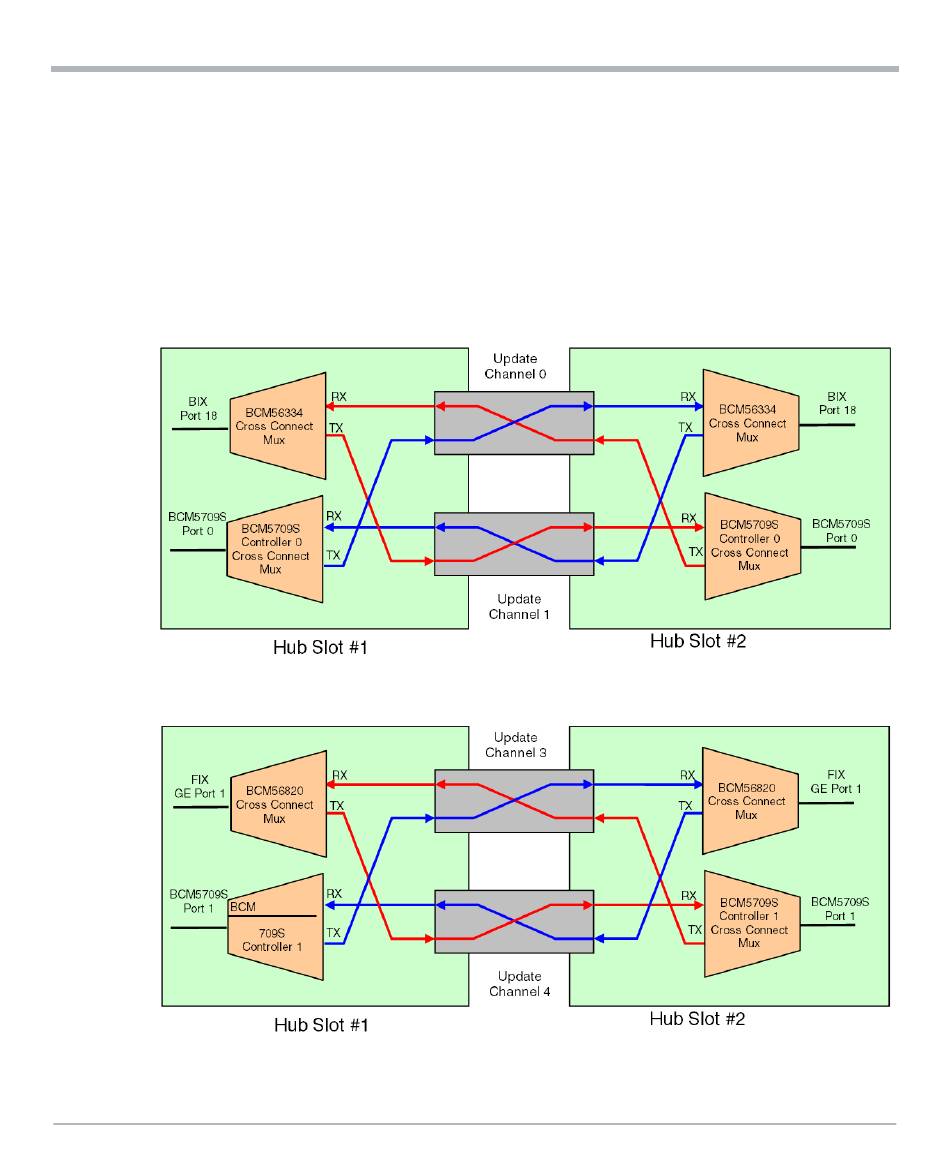

The channel cross connect scheme for the BCM5709S is shown below in the following two
figures.
Figure 4-10 Base Channel Cross Connect
Figure 4-11 Fabric Channel Cross Connect
ATCA-F125 (6873M Artwork) Installation and Use (6806800J94P)
89
