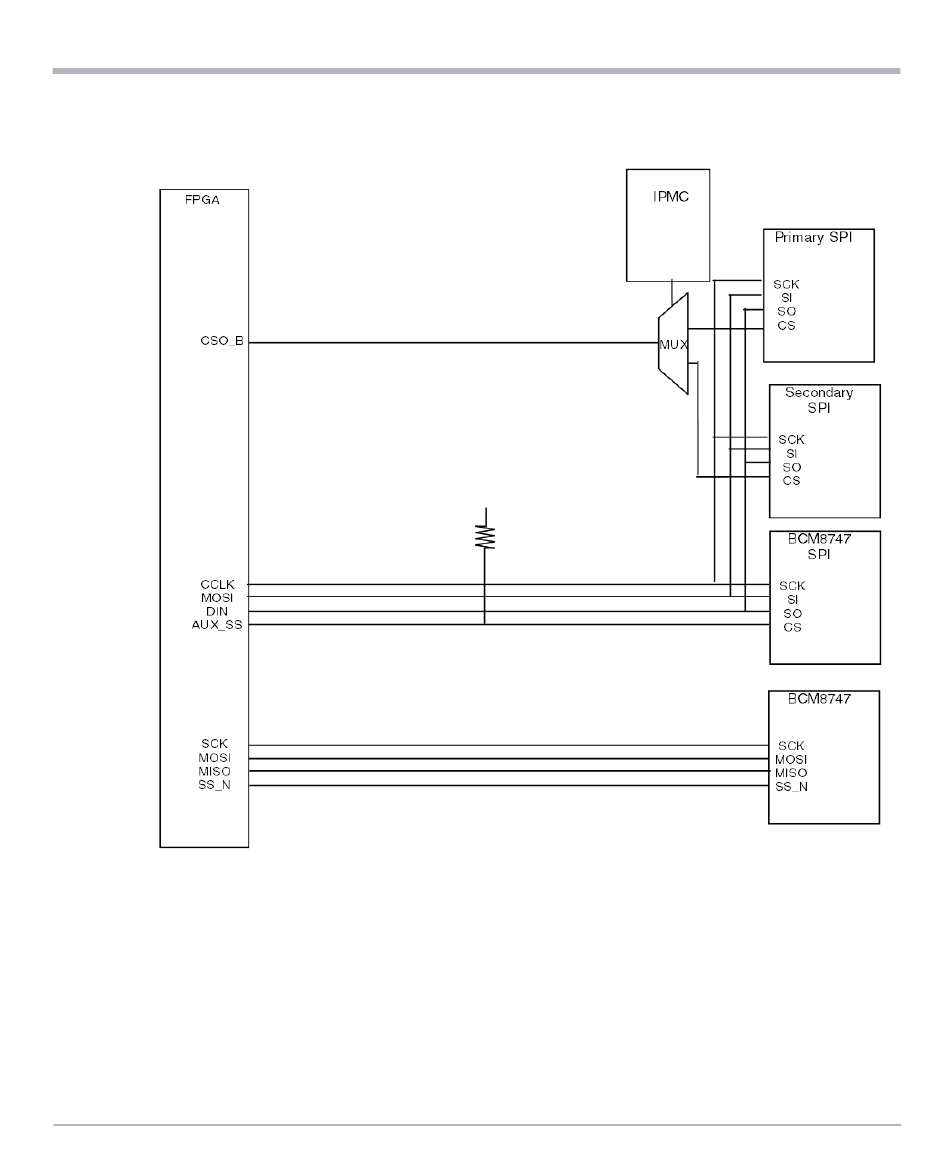

Figure 4-3 FPGA SPI ROM Configuration

4.6

Boot and User Flashes

Two 256 Mbit NOR Flash devices are used as boot devices for the service processor. The
flash devices used will be Numonyx PC28F256P33BF or equivalent devices. The data bus
width to the flash devices is 16 bit, supporting word accesses only.
