HYBRID MODULE
Preliminary installation
The HYBRID MODULE UNIVERSAL must be positioned close to
a residential space to ensure best performance.
15

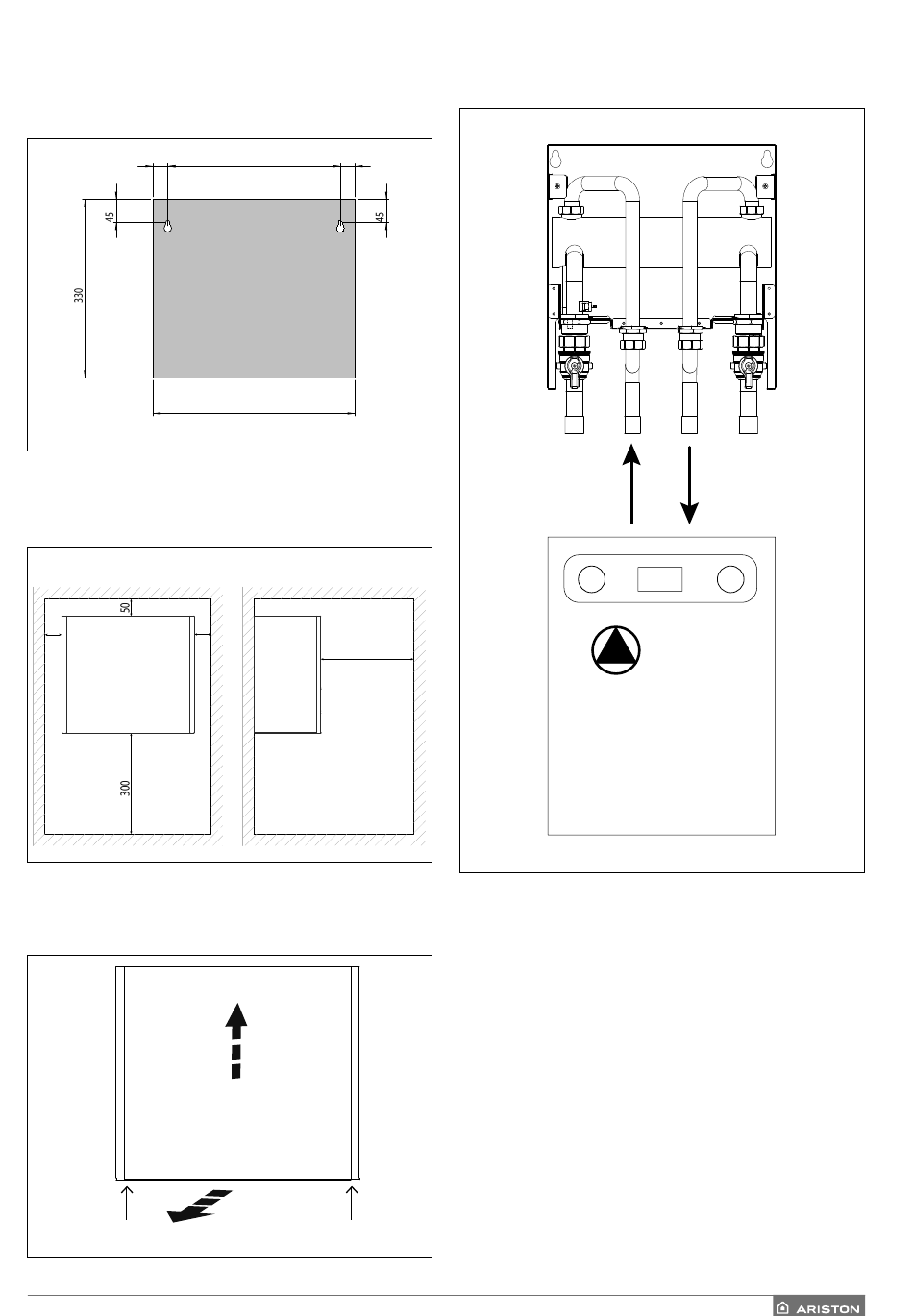

Minimum installation distances

To allow proper system maintenance, you must adhere to the
minimum installation distances shown in the fi gures below.
(Fig. 1)
50 50

Removing the front panel

Remove the two screws A, and push the front frame fi rst down-
wards, and then forwards (fi g.2).
(Fig. 2)
A
270 15
400
500
A
Example of connection to an external heat generator
Connect the external generator fl ow and return pipes to the
related universal hybrid module connection as shown in the
fi gure.
