HYBRID MODULE

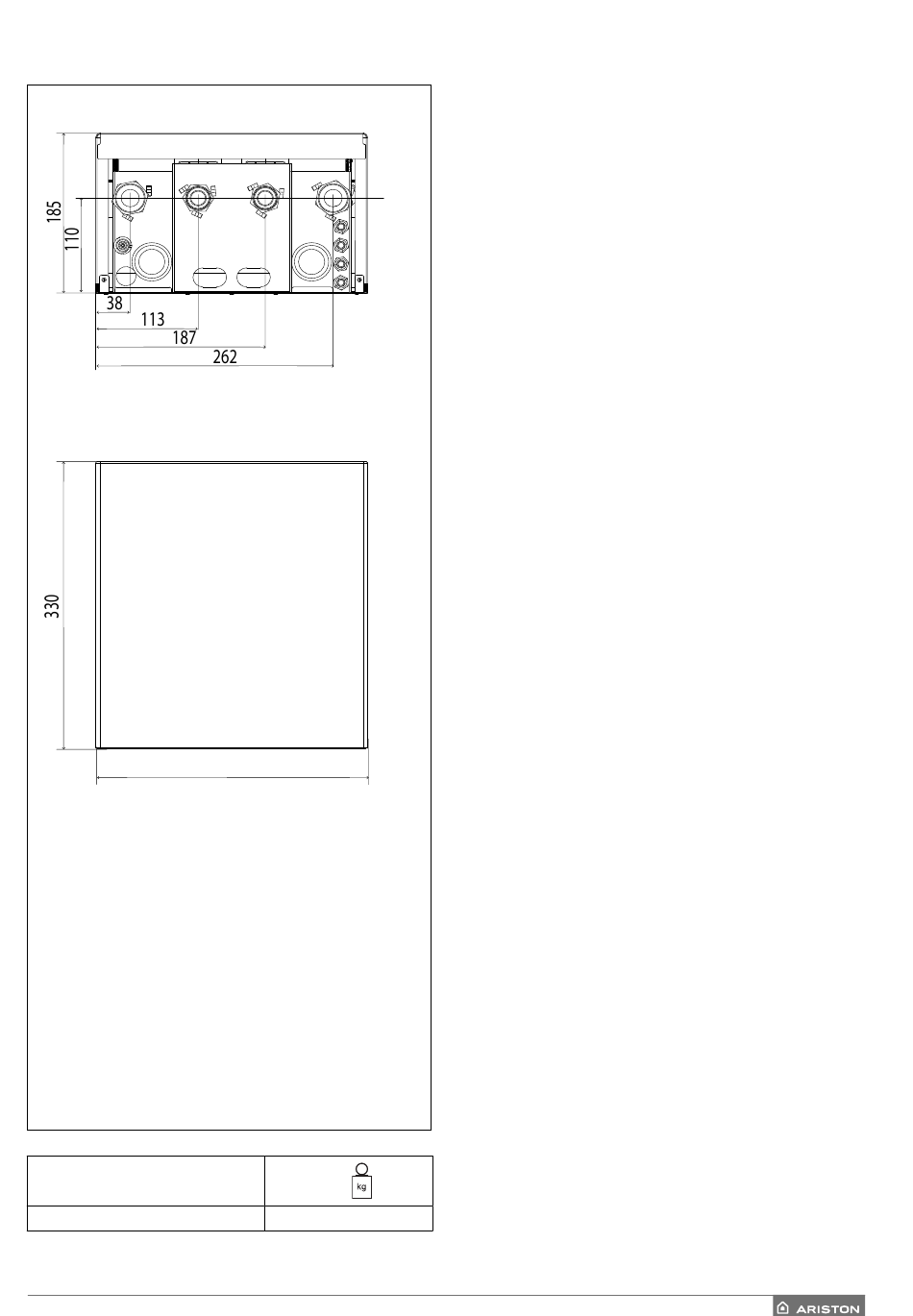

Dimensions and Weights
Vista dal basso
D
C
E
M
Front view
A. Inlet for hot water from external unit G 1" M
B. Return to the auxiliary generator
C. Delivery from the auxiliary generator
D. Heating delivery G 1" M
E. Discharge valve
F. Power supply cable gland
G. Cable gland for connecting the HV IN 3 signal
H. Cable gland for connecting the HV IN 1 signal
I. Cable gland for connecting the HV IN 2 signal
L. High-voltage connection cable gland
M. Low-voltage connection cable gland
HYBRID MODULE
B
A
F
L
G
H
I
300
Kg
7
/ 59
