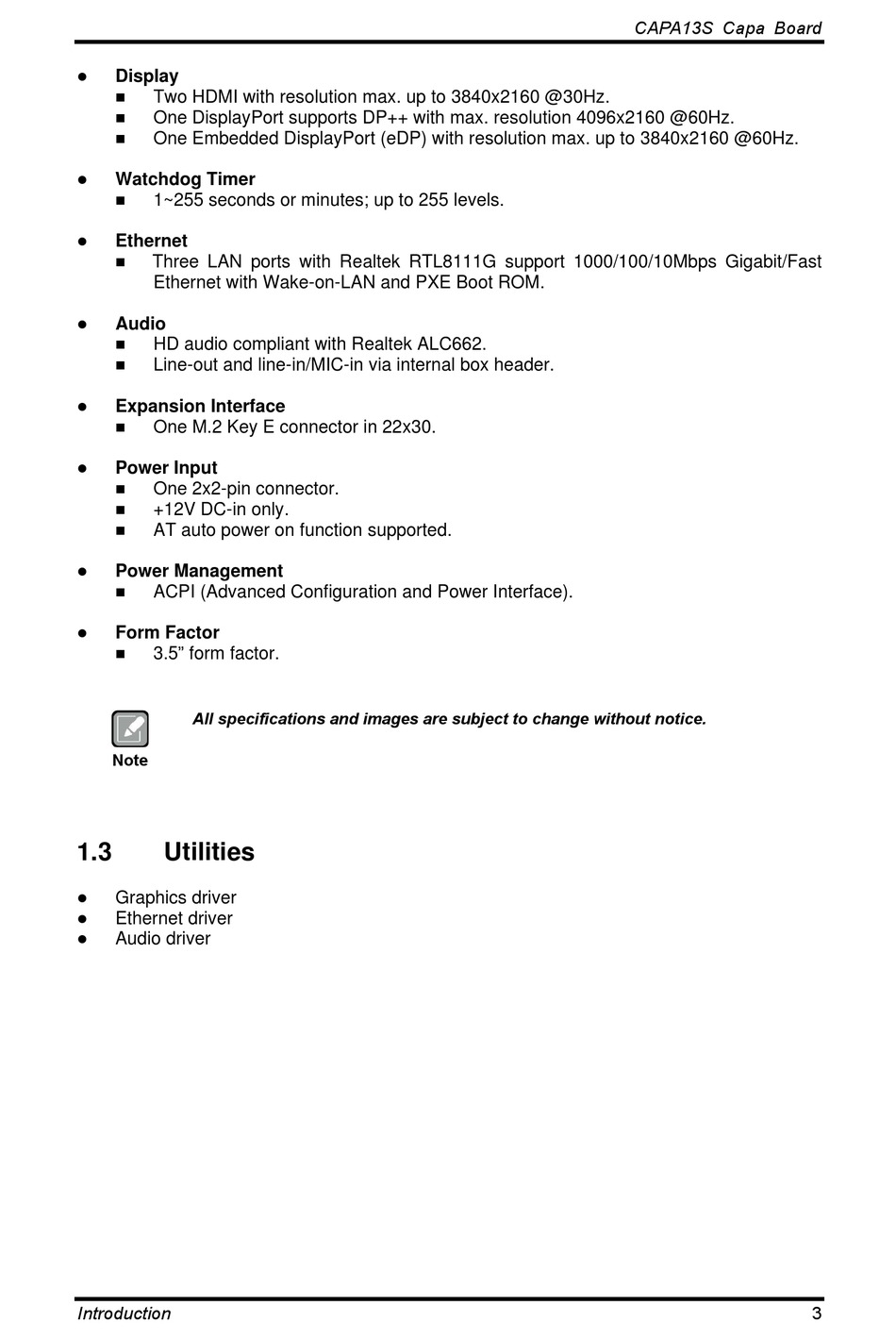

⚫ Display
◼ Two HDMI with resolution max. up to 3840x2160 @30Hz.
◼ One DisplayPort supports DP++ with max. resolution 4096x2160 @60Hz.
◼ One Embedded DisplayPort (eDP) with resolution max. up to 3840x2160 @60Hz.
⚫
Watchdog Timer
◼ 1~255 seconds or minutes; up to 255 levels.
⚫ Ethernet
◼ Three LAN ports with Realtek RTL8111G support 1000/100/10Mbps Gigabit/Fast
Ethernet with Wake-on-LAN and PXE Boot ROM.
⚫
Audio
◼ HD audio compliant with Realtek ALC662.
◼ Line-out and line-in/MIC-in via internal box header.
⚫ Expansion Interface
◼ One M.2 Key E connector in 22x30.
⚫ Power Input
◼ One 2x2-pin connector.
◼ +12V DC-in only.
◼ AT auto power on function supported.
⚫
Power Management
◼ ACPI (Advanced Configuration and Power Interface).
⚫ Form Factor
◼ 3.5" form factor.
All specifications and images are subject to change without notice.
Note
1.3

Utilities

⚫ Graphics driver
⚫
Ethernet driver
⚫ Audio driver
Introduction
CAPA13S Capa Board
3
