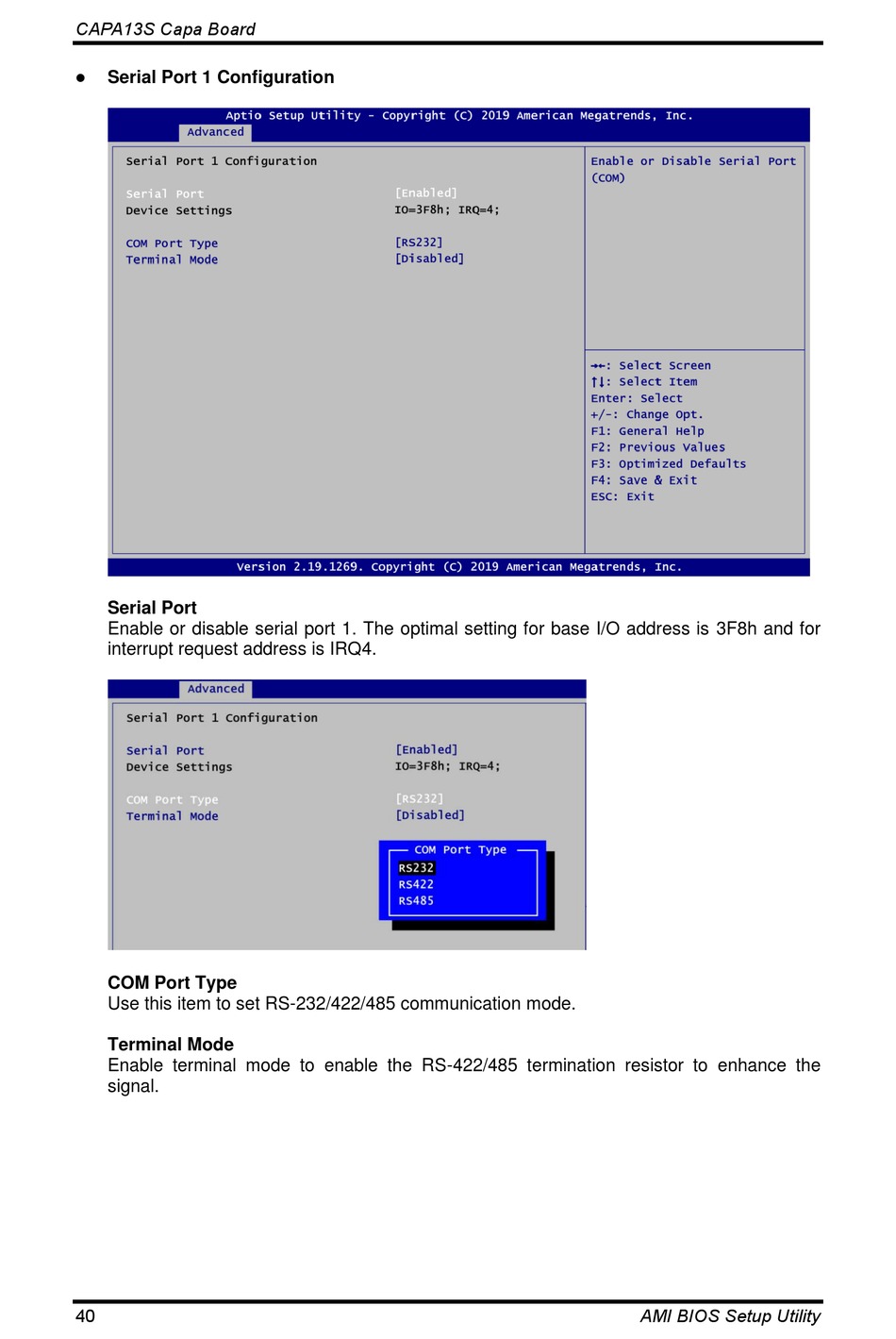

CAPA13S Capa Board
⚫
Serial Port 1 Configuration
Serial Port
Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for
interrupt request address is IRQ4.
COM Port Type
Use this item to set RS-232/422/485 communication mode.
Terminal Mode
Enable terminal mode to enable the RS-422/485 termination resistor to enhance the
signal.
40
AMI BIOS Setup Utility
