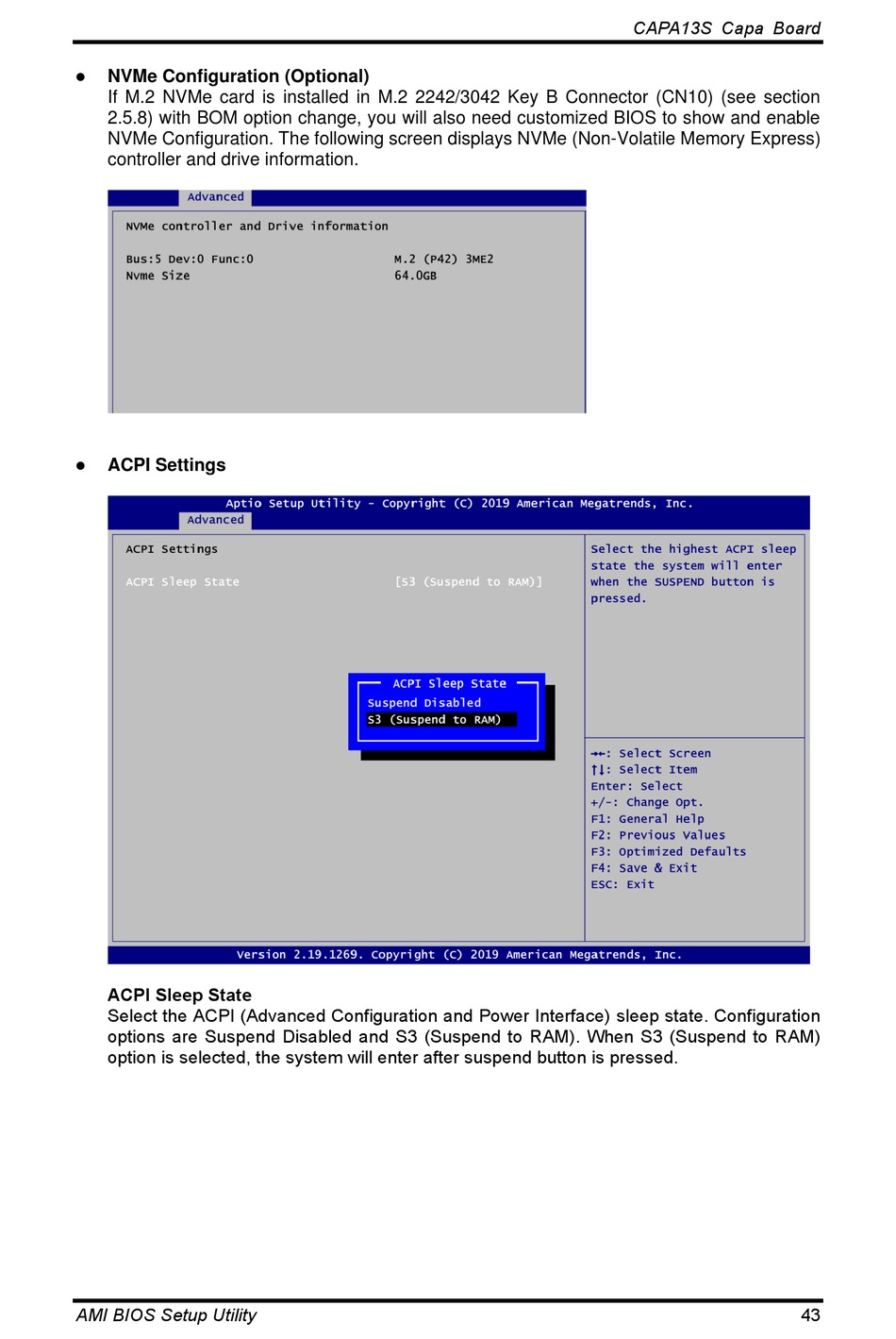

AXIOMTEK CAPA13S User Manual page 49

⚫ NVMe Configuration (Optional)
If M.2 NVMe card is installed in M.2 2242/3042 Key B Connector (CN10) (see section
2.5.8) with BOM option change, you will also need customized BIOS to show and enable
NVMe Configuration. The following screen displays NVMe (Non-Volatile Memory Express)
controller and drive information.
⚫ ACPI Settings
ACPI Sleep State
Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration
options are Suspend Disabled and S3 (Suspend to RAM). When S3 (Suspend to RAM)
option is selected, the system will enter after suspend button is pressed.
AMI BIOS Setup Utility
CAPA13S Capa Board
43
