Introduction - AXIOMTEK CAPA13S User Manual

CAPA13S Capa Board
Section 1

Introduction

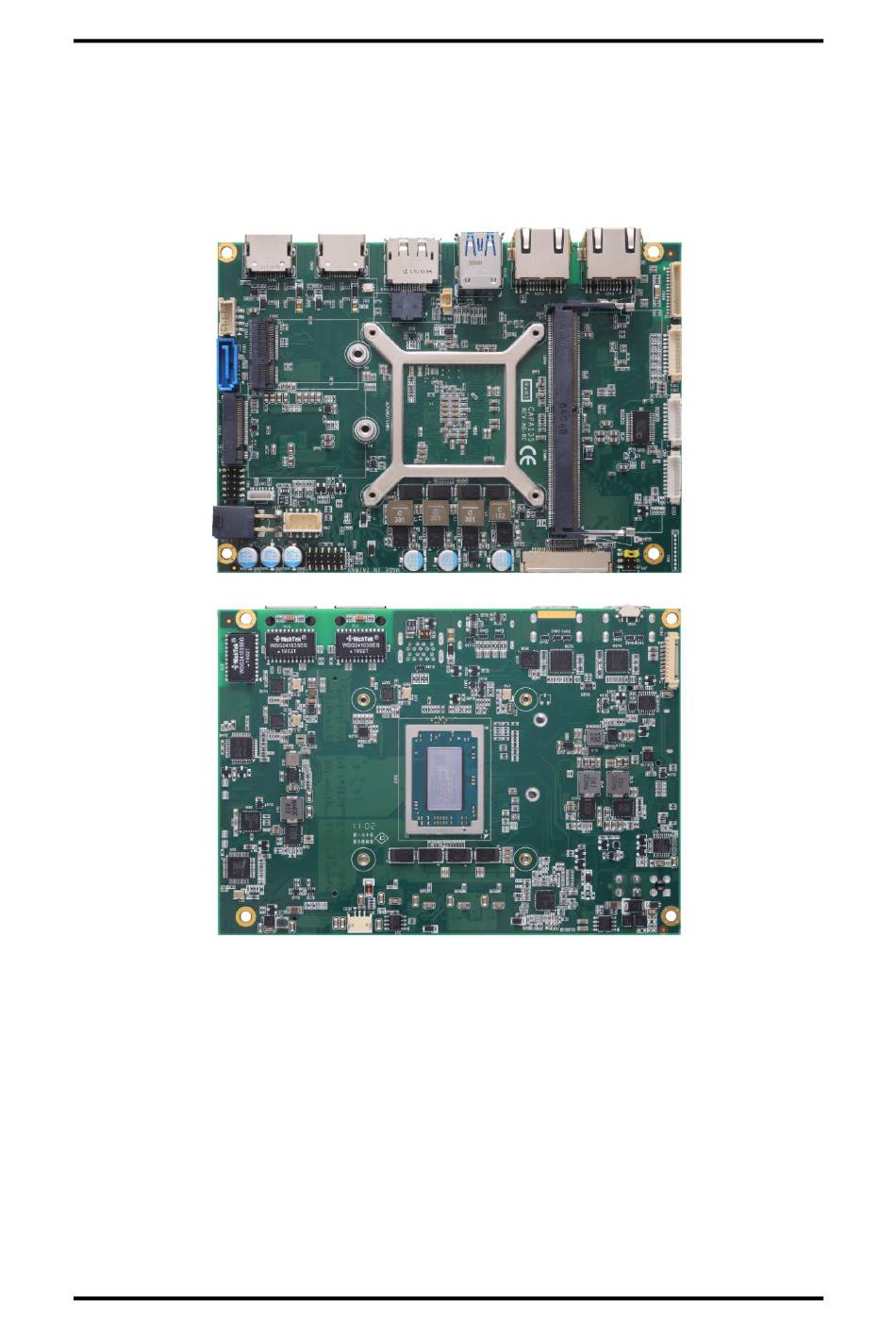

The CAPA13S, a 3.5" board, supports AMD ® RYZEN ® Embedded V1605B/V1807B processor.
It delivers outstanding system performance through high-bandwidth interfaces, multiple I/O
functions for interactive applications and various embedded computing solutions.
The CAPA13S has one 260-pin unbuffered SO-DIMM socket for single channel DDR4
2400/3200 MHz memory with maximum capacity up to 16GB. There are three Gigabit/Fast
Ethernet ports, one SATA port with transfer rate up to 6Gb/s, two USB 3.2 Gen 2 super speed
compliant, two USB 2.0 high speed compliant, and HD audio that can achieve the best stability
and reliability for industrial applications. Additionally, it provides you with unique embedded
features, such as two serial ports (one RS-232/422/485, one RS-232) and 3.5" form factor that
applies an extensive array of PC peripherals.
Introduction 1
