AXIOMTEK CAPA880 Series Quick Installation Manual

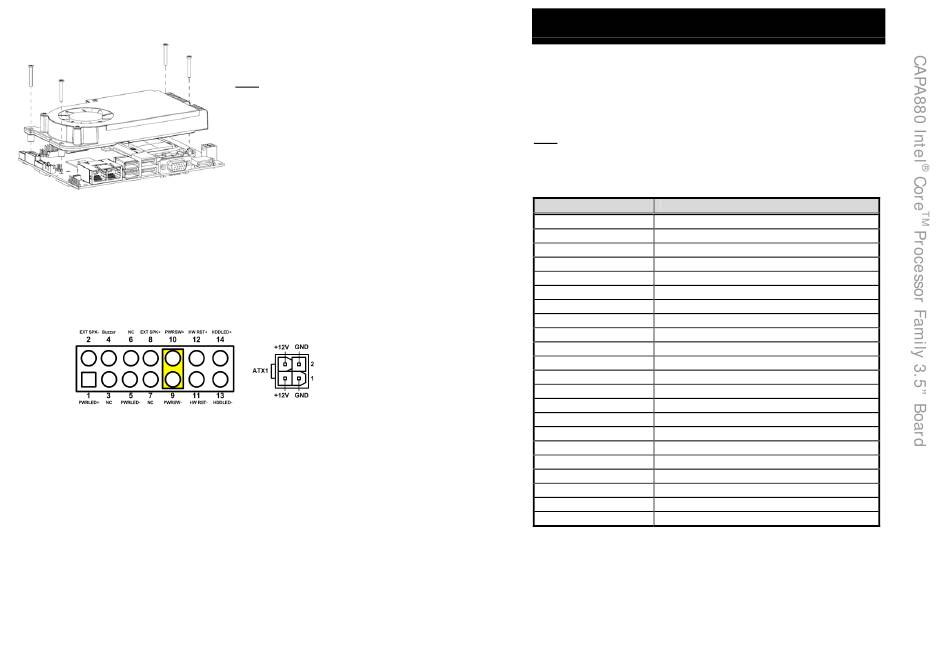

Installing Fan
The processor needs specially designed heatsink and fan assembly to cool
down and ensure sufficient air flow inside your system. After applying
thermal grease on the processor and installing it on the socket, please
place heatsink and fan assembly on top of it. Match the four screws to the
fixing holes on the board. Then screw tightly the heatsink and CPU fan
assembly onto the board. Also make sure the fan cable is plugged to fan
connector (CN1).
Quick Start
CN2
The basic procedures required to power on CAPA880:
(1). Require power at minimum 5A. Ensure that power supply is
OFF before connecting to CAPA880 and that all necessary
peripheral devices are plugged properly.
(2). Ensure all of the jumpers are at default settings; especially
JP5 (1-2 close).
(3). Firmly install DDR3 memory modules into connector SODIMM1
until fully seated.
(4). Firmly insert power to ATX1.
(5). Install a momentary on/off button/switch onto CN2, pin 9 and
10.
(6). Turn on the power supply.
(7). Press the on/off button/switch to power on CAPA880
4
Note:
Be careful not to over tighten
the screws as it can damage
the processor or the CPU
board.
9418E880000E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 March 2016
Printed in Taiwan
CAPA880 Series Quick Installation Guide
Checklist
 CPU board x1  Product information CD x1
 USB cable x1  Quick installation guide x1
 Audio cable x1  COM cable x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Connectors
Connector Description
CN1 Fan Connector
CN2 Front Panel Connector
CN3 LVDS Connector
CN4 SATA Power Connector
CN5 Inverter Connector
CN6 COM1 Wafer Connector
CN7 Audio Connector
CN8 USB 2.0 Wafer Port 5 and 6
CN9 Digital I/O Connector
CN10 (Optional) Power Connector
CN11 SMBus Connector
CN12 Ethernet Port 1 and Port 2
CN14 USB 3.0 Port 0 and 1
CN15 USB 2.0 Port 2 and 3
CN16 HDMI Connector
CN17 VGA Connector
ATX1 ATX Power Connector
BAT1 CMOS Battery Connector
SATA1 Serial ATA Port
SCN1 Full-size PCI-Express Mini Card Connector
SCN2 ZIO Expansion Connector
SODIMM1 DDR3 SO-DIMM Connector
9418E880000E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 March 2016
Printed in Taiwan
1
