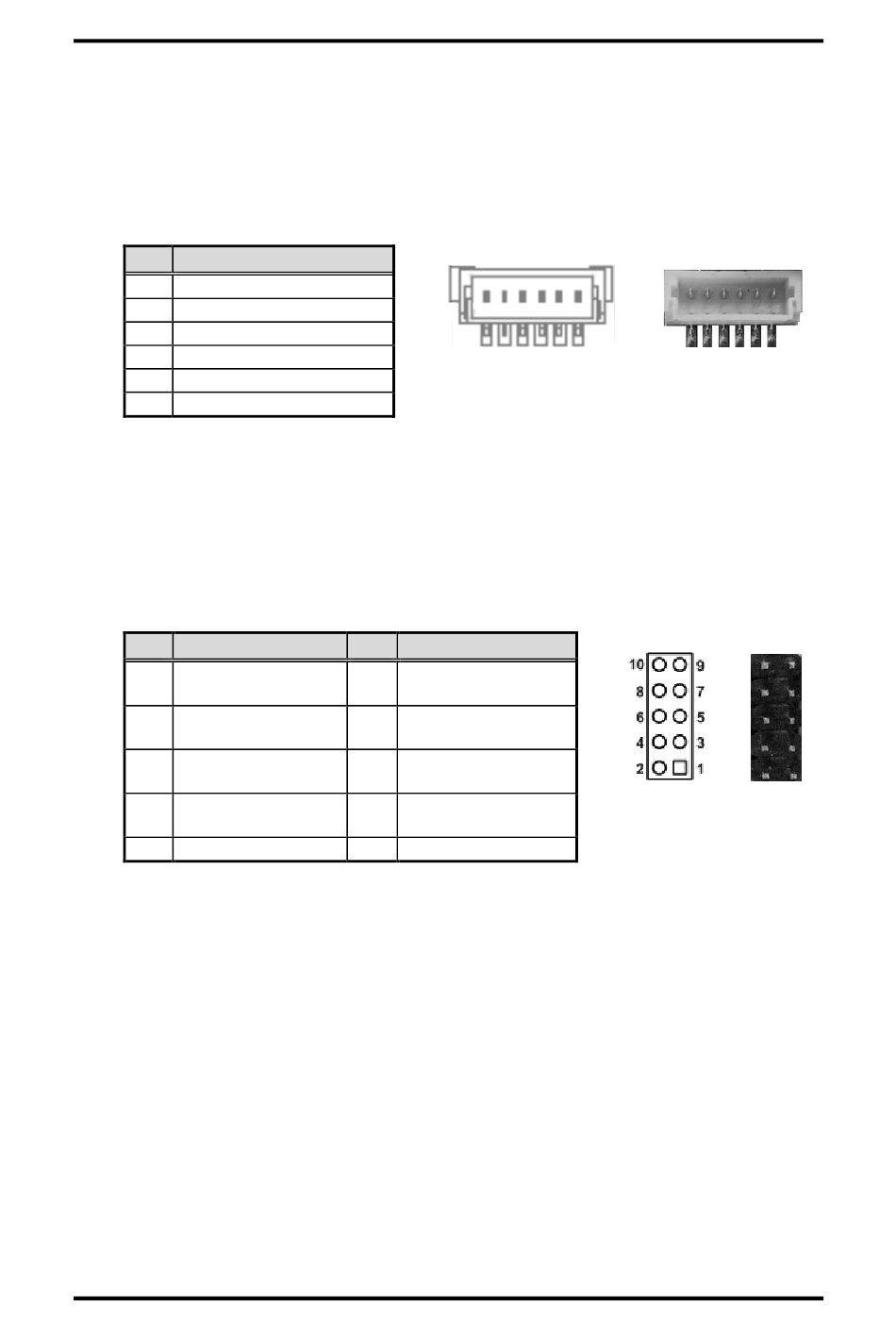

SIM Card Wafer Connector (CN7)

The CN7 is a 6-pin (pitch=1.0mm) wafer connector, which is compliant with JST
B6B-PH-K-S, for SIM Card interface. AX93A19 is suggested to use for CN7 to have SIM
card slot.
In order to work properly, the SIM card must be used together with 3G/4G LTE module in
M.2 Key B connector/CN10. It is mainly used in 3G/4G LTE cellular network application.
Pin Signal
1 PWR
2 RESET
3 CLK
4 DAT
5 VPP
6 GND
2.5.4

Digital I/O Connector (CN8)

This is a 2x5-pin (pitch=2.0mm) connector. The board is equipped with an 8-bit digital
I/O that meets requirements for a system customary automation control. The digital I/O
can be configured to control cash drawers and sense warning signals from an
Uninterrupted Power System (UPS), or perform store security control. You may use
software programming to control these digital signals, please refer to Appendix B.
Pin Signal
Digital Input Output 0
1
(Default: Output)
Digital Input Output 1
3
(Default: Output)
Digital Input Output 2
5
(Default: Output)
Digital Input Output 3
7
(Default: Output)
9 +5V level
14
1
Pin Signal
2 Digital Input Output 7
(Default: Input)
4 Digital Input Output 6
(Default: Input)
6 Digital Input Output 5
(Default: Input)
8 Digital Input Output 4
(Default: Input)
10 GND
6
