CAPA13S Capa Board
2.5.11

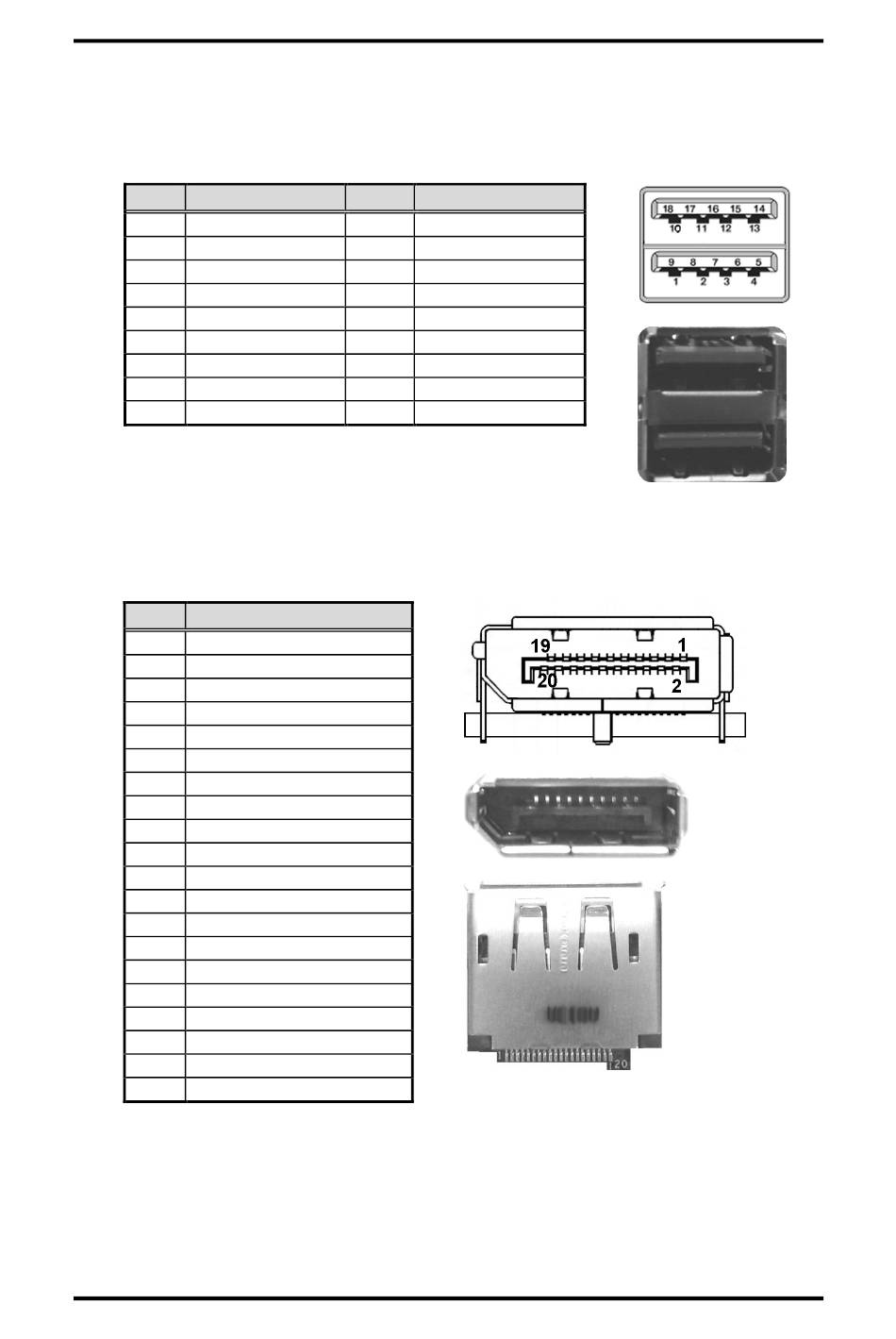

USB 3.2 Port (CN18)

The board comes with two Universal Serial Bus (compliant with USB 3.2 Gen 2 (10Gb/s))
ports on the rear I/O for installing USB peripherals such as keyboard, mouse, scanner,
etc.
Pin Signal
1 USB_VCC (+5V )
2 USB #0_D-
3 USB #0_D+
4 GND
5 SSRX0-
6 SSRX0+
7 GND
8 SSTX0-
9 SSTX0+
2.5.12

DisplayPort Connector (CN19)

The DisplayPort interface is available through connector CN19.
Pin Signal
1 DP_LANE0
2 GND
3 DP_LANE0#
4 DP_LANE1
5 GND
6 DP_LANE1#
7 DP_LANE2
8 GND
9 DP_LANE2#
10 DP_LANE3
11 GND
12 DP_LANE3#
13 Detect Pin
14 GND
15 DP_AUX
16 GND
17 DP_AUX#
18 DP_HPDE
19 GND
20 +3.3V
20
Pin Signal
10 USB_VCC (+5V )
11 USB #1_D-
12 USB #1_D+
13 GND
14 SSRX1-
15 SSRX1+
16 GND
17 SSTX1-
18 SSTX1+
Board and Pin Assignments
