2.4.1

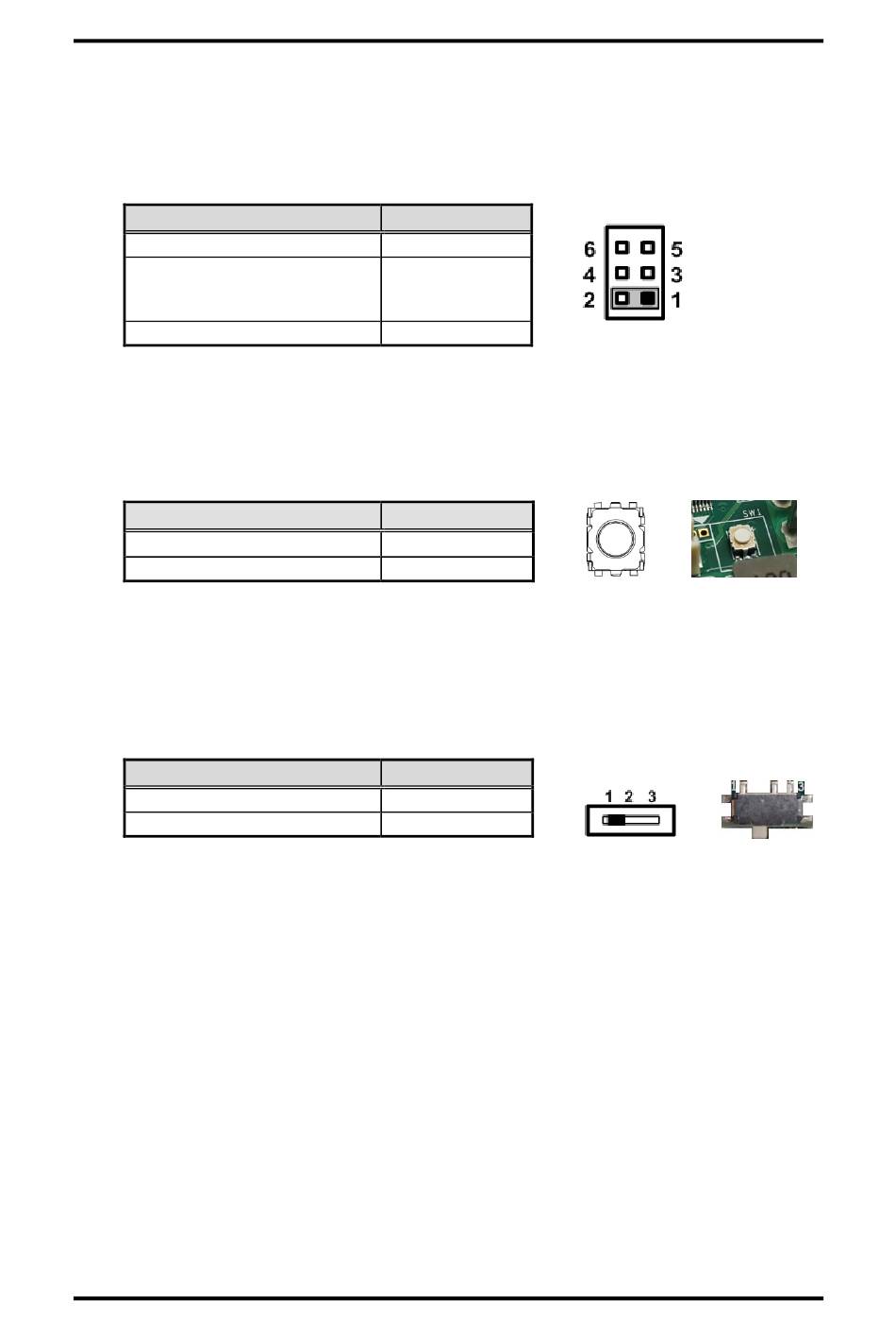

eDP Voltage Selection (JP1)

This is a 2x3-pin (pitch=2.0mm) jumper. The board supports voltage selection for
embedded DisplayPort (eDP). Use JP1 to set eDP connector (CN25) pin 1~4 LCD_VCC
to +3.3V, +5V or +12V. To prevent hardware damage, before connecting please make
sure that input voltage of display is correct.
Function
+3.3V (Default)
+5V
+12V
2.4.2

Restore BIOS Optimal Defaults (SW1)

Use SW1 to clear CMOS. Press the tact switch for at least 1 second to restore BIOS
optimal defaults.
Function
Normal (Default)
Restore BIOS optimal defaults
2.4.3

Auto Power On (SSW1)

If SSW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SSW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on (Default)
Enable auto power on
Board and Pin Assignments
Setting
1-2 close
2-4 close
Or
4-6 close
5-6 close
Setting
Release
Press
Setting
1-2 close
2-3 close
CAPA13S Capa Board
