AXIOMTEK CAPA84R Series Quick Installation Manual

Quick Start
The basic procedures required to power on CAPA84R:
(1). Require power at minimum 12V/0.87A. Check to ensure that
power supply is OFF before connecting to CAPA84R and that
all necessary peripheral devices are plugged properly.
(2). Install suitable heat dissipation device, ex: heatsink...etc.
(3). Make sure all of the jumper and switch are at default settings;
especially SW 2 (1-2 close).
(4). Install DDR3L memory module into connector SODIMM1 until
fully seated.
(5). Firmly insert power to CN5/ATX1.

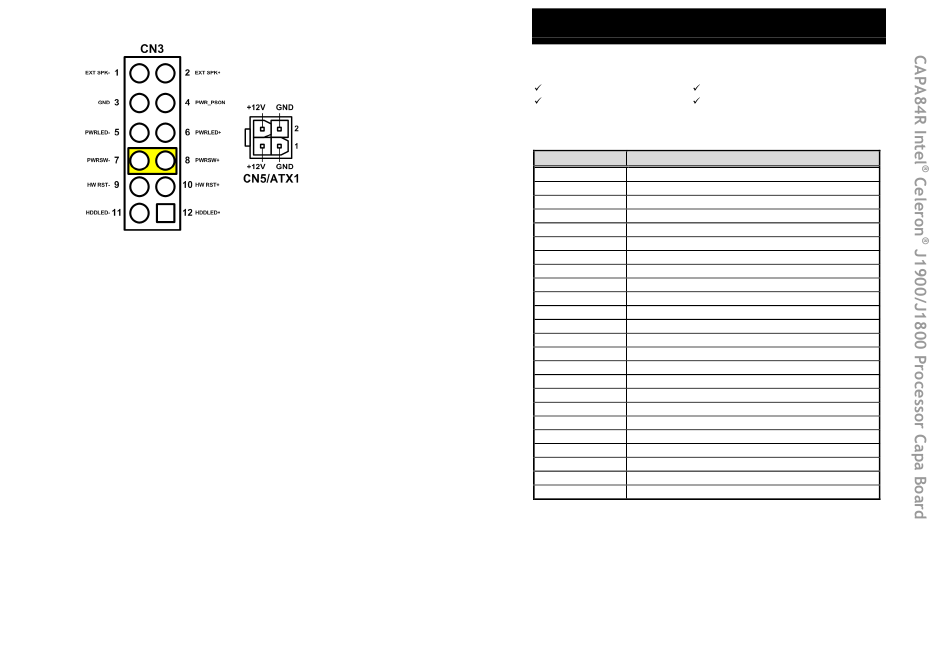

(6). Install a momentary on/off button/switch onto CN3, pin 7 and 8.
(7). Turn on the power supply.
(8). Press the on/off button/switch to power on CAPA84R.
4 9418E84R000E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A1 November 2018
Printed in Taiwan
CAPA84R Series Quick Installation Guide
Checklist
CPU Board x1 Product Information DVD x1
Quick Installation Guide x1 Heatsink or Heatspreader(Optional)
Connectors
Connector Description
CN1 SMBus Connector
CN2 Digital I/O Connector
CN3 Front Panel Connector
CN5/ATX1 DC +12V Power Input Connector
CN7 Fan Connector
CN8 DC +5V/15W Power Output Connector
CN9 M.2 2230 Key E Connector
CN10 SATA Power Connector
CN11 SIM Card Wafer Connector
CN12 SATA Connector
CN13 M.2 2242/3042 Key B Connector
CN14 USB 2.0 Port 1 and 2 Wafer Connector
CN15 Inverter Connector
CN16 Audio Line-in/Line-out/Mic-in Wafer Connector
CN17 Ethernet Port 3 Wafer Connector
CN18 LVDS Connector
CN19 USB 3.0/2.0 Port 0 Type A Connector
CN20 DisplayPort Connector
CN21, CN23 Ethernet Port 1 and 2
CN22 Audio Line-out Phone Jack
VGA1 VGA Connector
COM1, COM2 COM1 and COM2 Wafer Connector
BAT1 CMOS Battery Connector
SODIMM1 DDR3L SO-DIMM Connector
