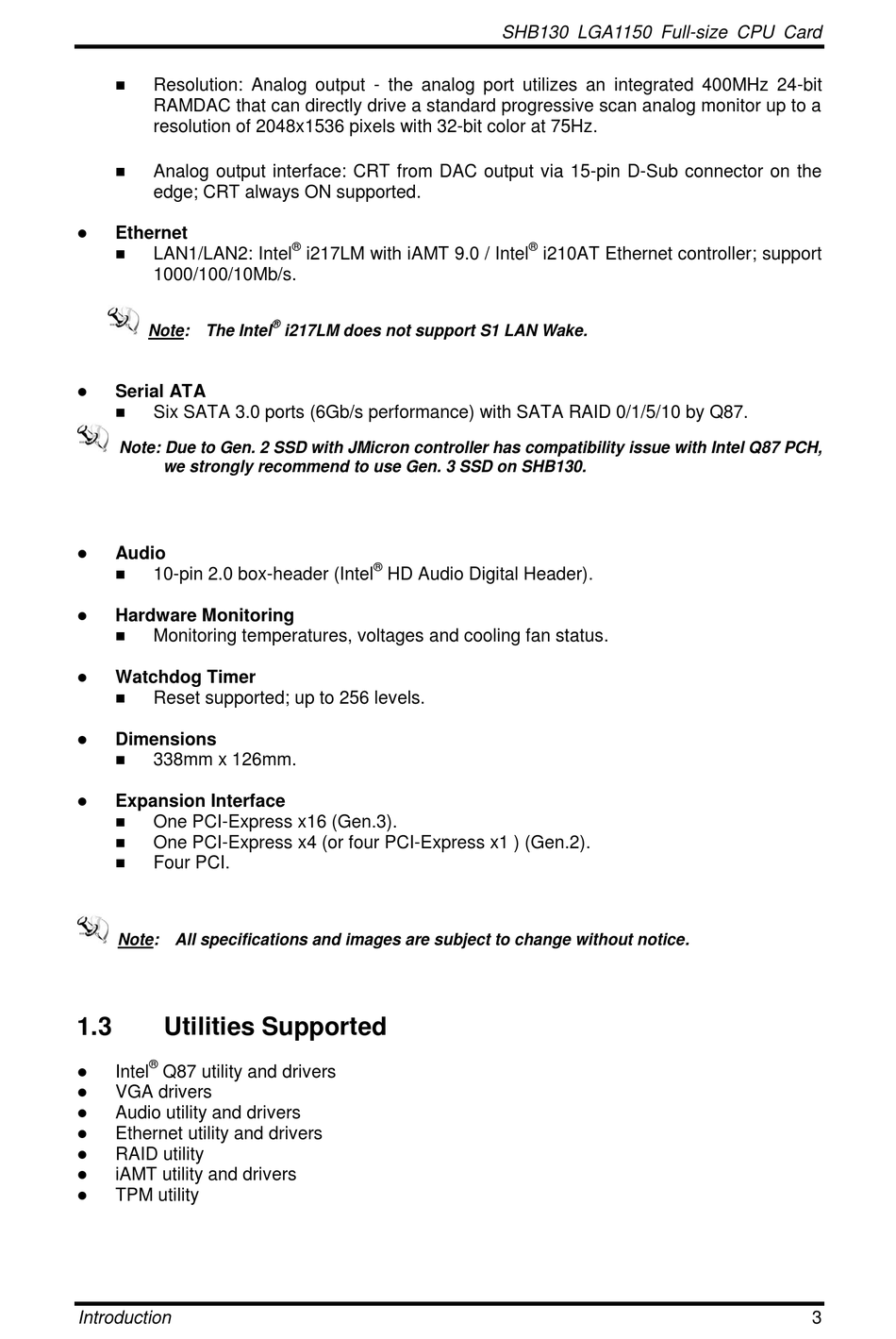

 Resolution: Analog output - the analog port utilizes an integrated 400MHz 24-bit
RAMDAC that can directly drive a standard progressive scan analog monitor up to a
resolution of 2048x1536 pixels with 32-bit color at 75Hz.
 Analog output interface: CRT from DAC output via 15-pin D-Sub connector on the
edge; CRT always ON supported.

Ethernet
 LAN1/LAN2: Intel
1000/100/10Mb/s.
Note: The Intel
 Serial ATA
 Six SATA 3.0 ports (6Gb/s performance) with SATA RAID 0/1/5/10 by Q87.
Note: Due to Gen. 2 SSD with JMicron controller has compatibility issue with Intel Q87 PCH,
we strongly recommend to use Gen. 3 SSD on SHB130.
 Audio
 10-pin 2.0 box-header (Intel
 Hardware Monitoring
 Monitoring temperatures, voltages and cooling fan status.
 Watchdog Timer
 Reset supported; up to 256 levels.
 Dimensions

338mm x 126mm.
 Expansion Interface
 One PCI-Express x16 (Gen.3).
 One PCI-Express x4 (or four PCI-Express x1 ) (Gen.2).
 Four PCI.
Note: All specifications and images are subject to change without notice.
1.3

Utilities Supported

®
 Intel Q87 utility and drivers
 VGA drivers
 Audio utility and drivers

Ethernet utility and drivers
 RAID utility
 iAMT utility and drivers
 TPM utility
Introduction
®
i217LM with iAMT 9.0 / Intel
®
i217LM does not support S1 LAN Wake.
®
HD Audio Digital Header).
SHB130 LGA1150 Full-size CPU Card
®
i210AT Ethernet controller; support
3
