CAPA13S Capa Board

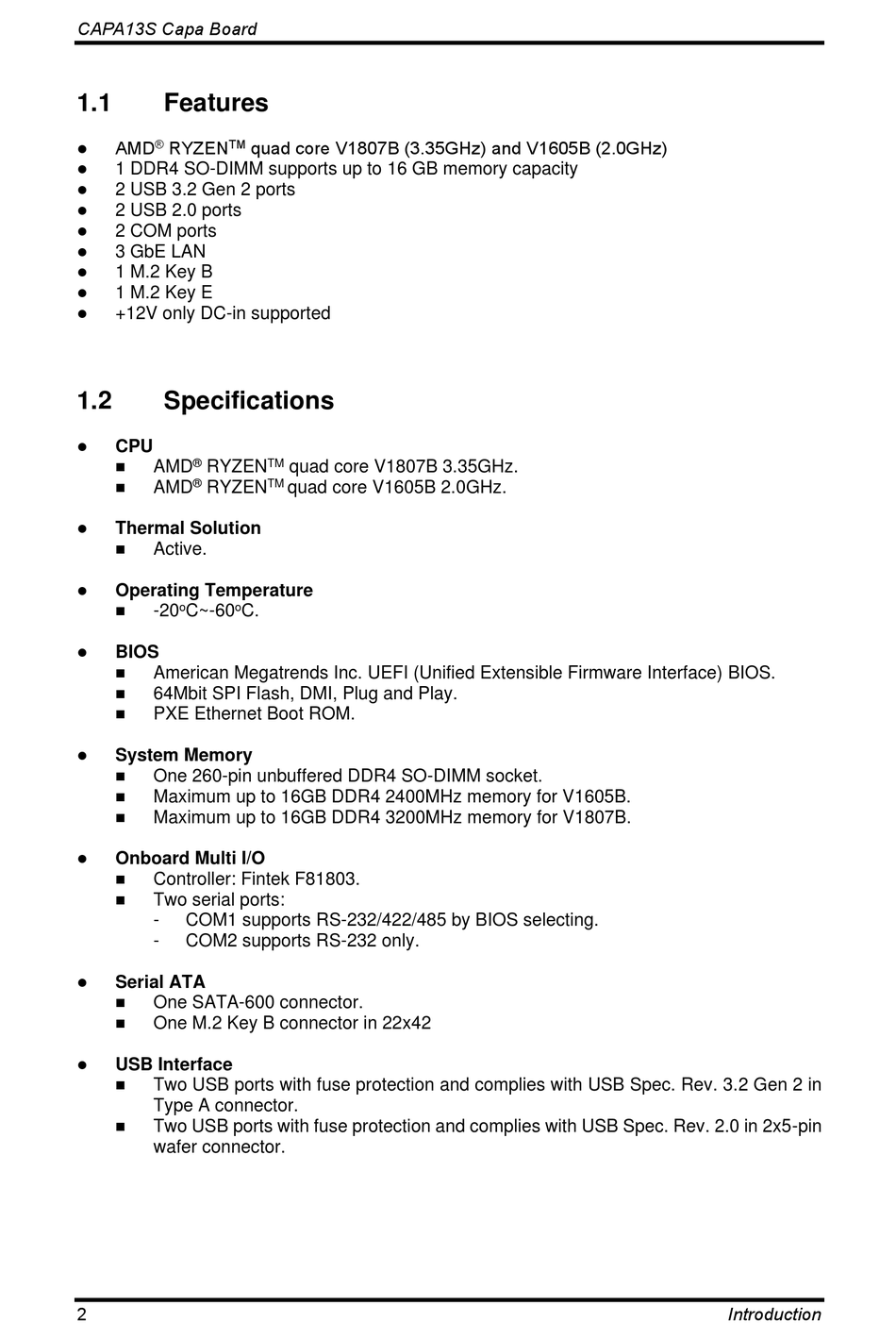

1.1

Features

AMD ® RYZEN TM
⚫
⚫ 1 DDR4 SO-DIMM supports up to 16 GB memory capacity
⚫ 2 USB 3.2 Gen 2 ports
⚫ 2 USB 2.0 ports
⚫ 2 COM ports
⚫ 3 GbE LAN
⚫ 1 M.2 Key B
⚫ 1 M.2 Key E
⚫ +12V only DC-in supported
1.2

Specifications

⚫ CPU
®
◼ AMD RYZEN
®
◼ AMD RYZEN
⚫
Thermal Solution
◼ Active.
⚫ Operating Temperature
o o
◼ -20 C~-60 C.
⚫
BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
◼ 64Mbit SPI Flash, DMI, Plug and Play.
◼ PXE Ethernet Boot ROM.
⚫ System Memory
◼ One 260-pin unbuffered DDR4 SO-DIMM socket.
◼
Maximum up to 16GB DDR4 2400MHz memory for V1605B.
◼ Maximum up to 16GB DDR4 3200MHz memory for V1807B.
⚫ Onboard Multi I/O
◼ Controller: Fintek F81803.
◼ Two serial ports:
- COM1 supports RS-232/422/485 by BIOS selecting.
- COM2 supports RS-232 only.
⚫ Serial ATA
◼ One SATA-600 connector.
◼ One M.2 Key B connector in 22x42
⚫ USB Interface
◼ Two USB ports with fuse protection and complies with USB Spec. Rev. 3.2 Gen 2 in
Type A connector.
◼ Two USB ports with fuse protection and complies with USB Spec. Rev. 2.0 in 2x5-pin
wafer connector.
2
quad core V1807B (3.35GHz) and V1605B (2.0GHz)
TM
quad core V1807B 3.35GHz.
TM
quad core V1605B 2.0GHz.
Introduction
