CAPA13S Capa Board

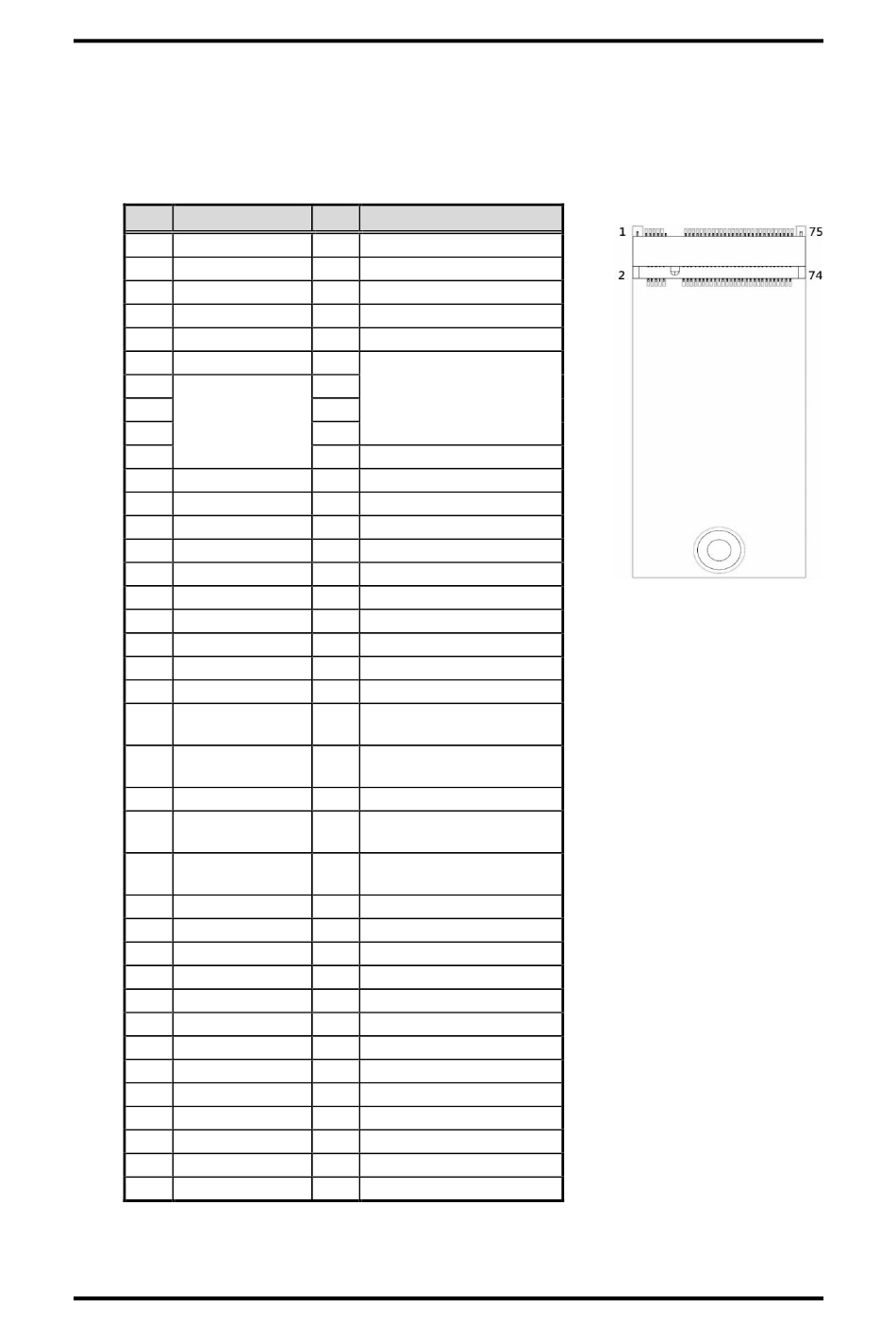

2.5.6 M.2 2242/3042 Key B Connector (CN10)
The CN10 is a M.2 Key B connector. It is suggested to install the M.2 storage module via
SATA with 22mm width and 42mm length or the M.2 cellular module via USB 2.0 with
30mm width and 42mm length. It also supports the M.2 storage module via PCIe x2 by
BOM option with hardware change.
Pin Signal
1 CONFIG_3
3 GND
5 GND
7 USB_0_DP0
9 USB_0_DM0
11 GND
13
15
Key B
17
19
21 CONFIG_0
23 GPIO11(+1.8V)
25 NC
27 GND
29 PCIE_RXN4
31 PCIE_RXP4
33 GND
35 PCIE_TXN4
37 PCIE_TXP4
39 GND
SATA1_RXP/
41
PCIE_RXN5
SATA1_RXN/
43
PCIE_RXP5
45 GND
SATA1_TXN/
47
PCIE_TXN5
SATA1_TXP/
49
PCIE_TXP5
51 GND
53 PCIE_CLKN4
55 PCIE_CLKP4
57 GND
59 NC
61 NC
63 NC
65 NC
67 PLTRST(+1.8V)
69 CONFIG_1
71 GND
73 GND
75 CONFIG_2
16
Pin Signal
2 +3.3V_SBY
4 +3.3V_SBY
6 Full Card PWR OFF
8 W_DISABLE#
10 NC
12
14
Key B
16
18
20 NC
22 NC
24 NC
26 NC
28 NC
30 SIM_RST
32 SIM_CLK
34 SIM_DATA
36 SIM_PWR
38 NC
40 SMB_CLK_SBY(+1.8V)
42 SMB_DATA_SBY(+1.8V)
44 NC
46 NC
48 NC
50 PERST#
52 CLK_REQ4
54 PEWAKE#
56 NC
58 NC
60 NC
62 NC
64 NC
66 NC
68 SUSCLK
70 +3.3V_SBY
72 +3.3V_SBY
74 +3.3V_SBY
Board and Pin Assignments
