CAPA13S Capa Board
2.5.15

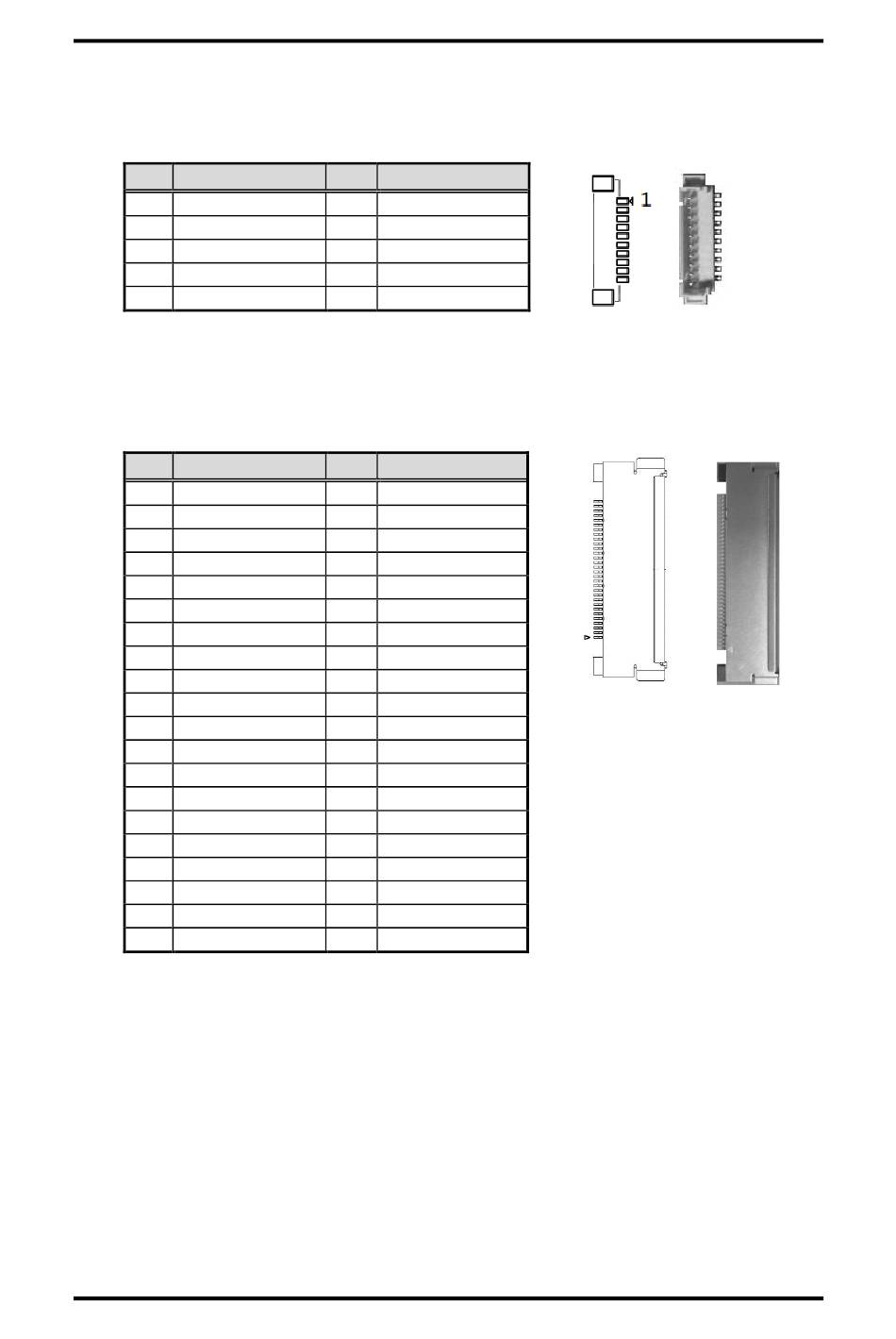

Audio Connector (CN24)

This is a 10-pin (pitch=1.25mm) wafer connector, which is compliant with Molex
53047-1010, for audio interface.
Pin Signal
1 MIC_IN
3 LINE_IN_L
5 LINE_IN_R
7 AUDIO_OUT_L
9 AUDIO_OUT_R
2.5.16

eDP Connector (CN25)

The eDP interface is available through 40-pin connector (CN25), which is compliant with
IPEX-20143. Pin 1~4 LCD_VCC can be set to +3.3V, +5V or +12V with JP1.
Pin Signal
1 LCD_VCC
2 LCD_VCC
3 LCD_VCC
4 LCD_VCC
5 NC
6 LCD_GND
7 LCD_GND
8 LCD_GND
9 LCD_GND
10 HPD
11 High Speed_GND
12 TXN3
13 TXP3
14 High Speed_GND
15 TXN2
16 TXP2
17 High Speed_GND
18 TXN1
19 TXP1
20 High Speed_GND
22
Pin Signal
2 GND
4 GND
6 GND
8 GND
10 GND
Pin Signal
21 TXN0
22 TXP0
23 High Speed_GND
24 AUXP
25 AUXN
26 High Speed_GND
27 BKLT_GND
28 BKLT_GND
29 BKLT_GND
30 BKLT_GND
31 NC
32 BKLT_CTRL
33 BKLT_EN
34 NC
35 NC
36 BKLT_VCC_12V
37 BKLT_VCC_12V
38 BKLT_VCC_12V
39 BKLT_VCC_12V
40 NC
40
1
Board and Pin Assignments
