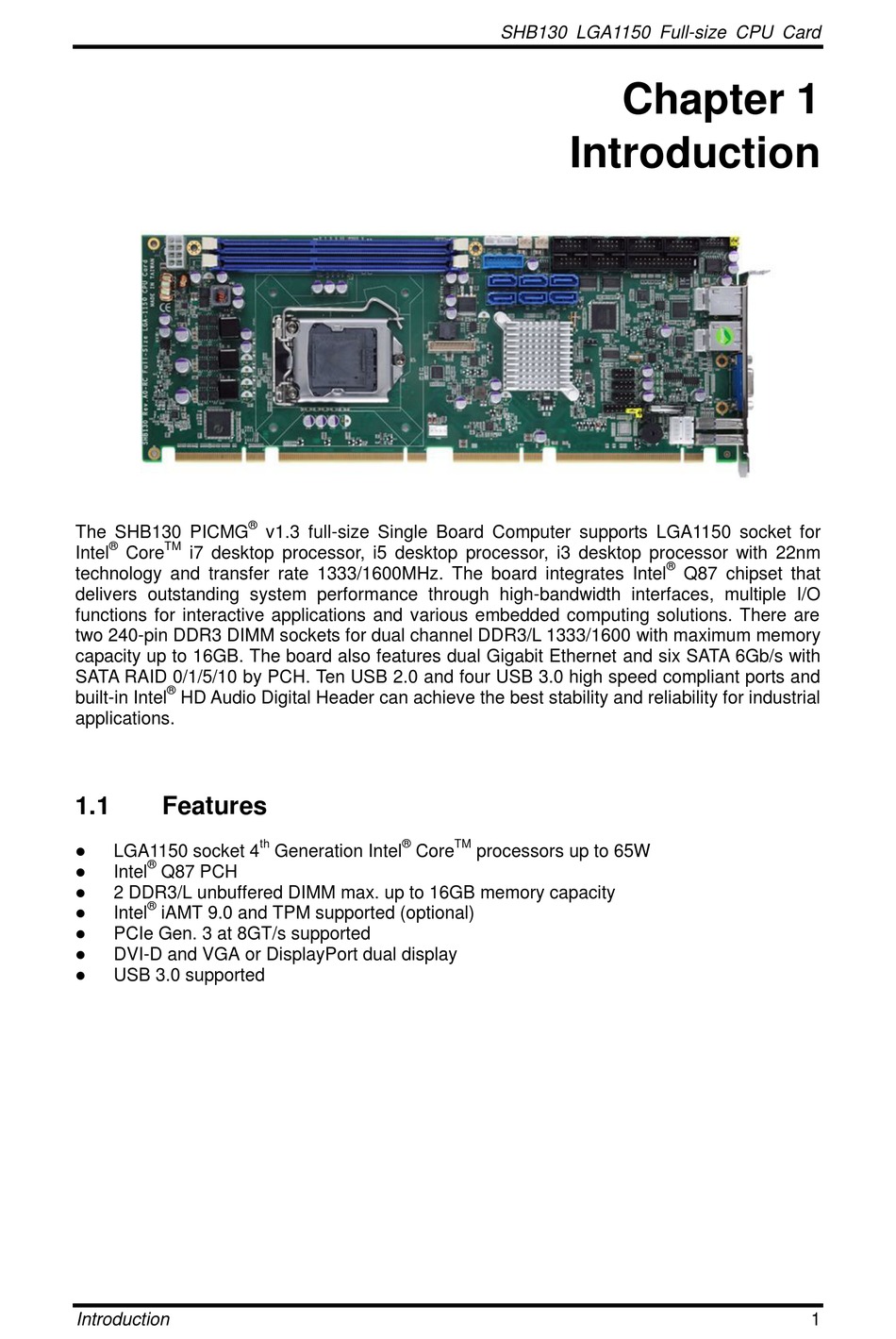

Chapter 1 Introduction; Features - AXIOMTEK SHB130 Series User Manual

The SHB130 PICMG
® TM
Intel Core i7 desktop processor, i5 desktop processor, i3 desktop processor with 22nm
technology and transfer rate 1333/1600MHz. The board integrates Intel
delivers outstanding system performance through high-bandwidth interfaces, multiple I/O
functions for interactive applications and various embedded computing solutions. There are
two 240-pin DDR3 DIMM sockets for dual channel DDR3/L 1333/1600 with maximum memory
capacity up to 16GB. The board also features dual Gigabit Ethernet and six SATA 6Gb/s with
SATA RAID 0/1/5/10 by PCH. Ten USB 2.0 and four USB 3.0 high speed compliant ports and
®
built-in Intel HD Audio Digital Header can achieve the best stability and reliability for industrial
applications.
1.1

Features

 LGA1150 socket 4
®
 Intel Q87 PCH
 2 DDR3/L unbuffered DIMM max. up to 16GB memory capacity
®
 Intel iAMT 9.0 and TPM supported (optional)
 PCIe Gen. 3 at 8GT/s supported
 DVI-D and VGA or DisplayPort dual display
 USB 3.0 supported
Introduction
®
v1.3 full-size Single Board Computer supports LGA1150 socket for
th ®
Generation Intel Core
SHB130 LGA1150 Full-size CPU Card
Chapter 1
Introduction
TM
processors up to 65W
®
Q87 chipset that
1
