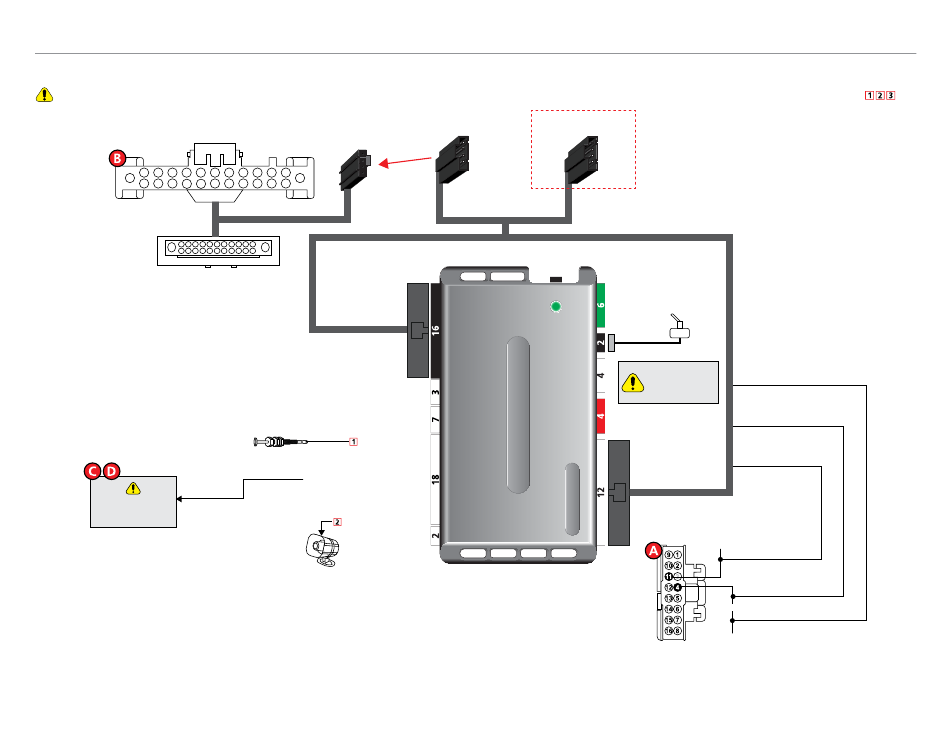

Installation (wiring diagrams & vehicle wiring reference charts)
Type 1 -
with
OEM Remote Start and
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
Gateway Module
(on OBDII connector or
right of steering column)
Refer to
'Vehicle connections'
for wire and connector
details.
8
with
T-Harness (THFOC2)
Hood Pin
Hood Pin
(-) Hood Input: Gray: 3
(-) Trunk Release Output: Red/White: 9
(+) Siren Output: Brown: 17
Siren
Type 1
Type 2
4-pin
connectors
NOT USED
(optional T-Harness)
THFOC2
Remote Start Safety
Override Switch
The Remote Start
Parking Lights Interrupt
Safety Override
(vehicle side): Yellow/Red
Switch MUST be in
the ON position.
Parking Lights Interrupt
(conn. side): Orange/Red
(-) Parking Lights Output:
Brown/Red
(-) Parking Lights:
Gray or Yellow, pin 11
Cut
Parking Light Interrupt: Pin 4
Headlight Switch
Directed Digital Solutions FORD12
