INSTALLATION GUIDE

DB3

2015 Cadillac CTS Sedan (Smart Key). 403.GM9 2.30

This product is intended for installation by a professional installer only! Attempts to install this

product by a person other than a trained professional may result in severe damage to a vehicle's

electrical system and components.

Table of Contents

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Directechs DB3

Page 1 INSTALLATION GUIDE 2015 Cadillac CTS Sedan (Smart Key). 403.GM9 2.30 Designed by Installers for Installers © 2020 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Keyport location Vehicle connections Key2GO Connecting the module Module programming LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...
Page 3 Warning! Safety first The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.
Page 4: Introduction

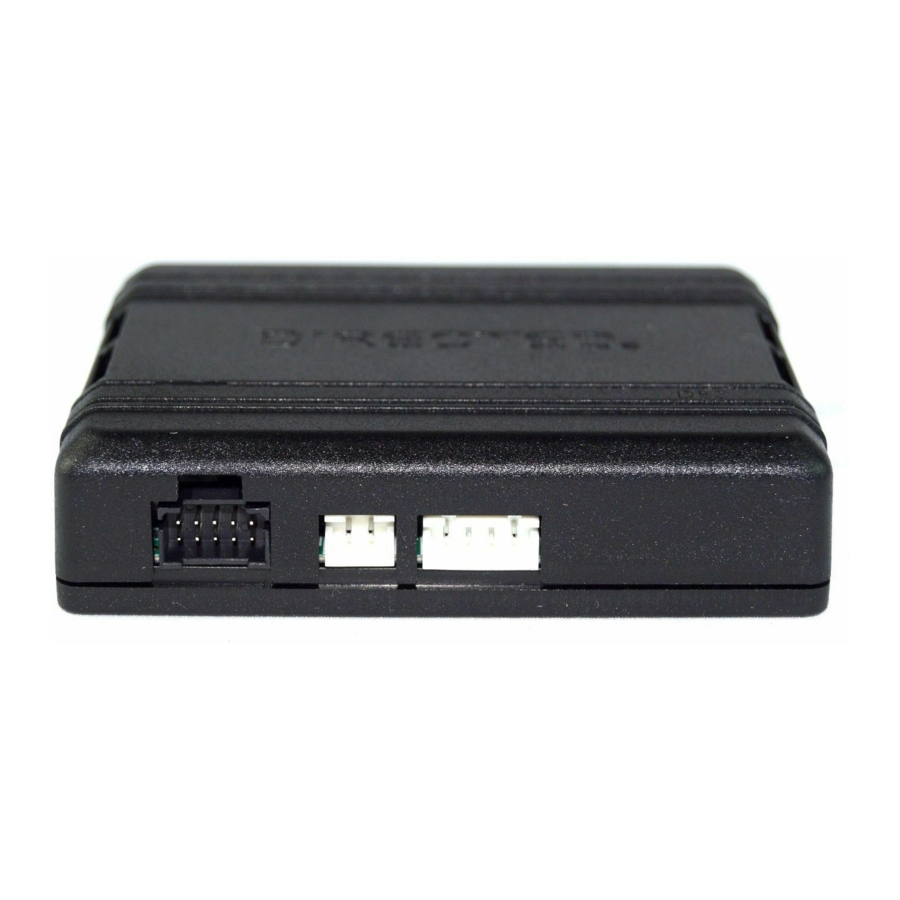

DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation Important!
Page 6: Wiring Diagram
Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( (white conn. under driver-side dash XKD2D65 or behind glovebox) (green conn. 1 2 3 4 under driver-side dash or behind glovebox) (gray conn.
Page 8: Keyport Location
Keyport location Vehicle Keyport location Reference Buick Enclave (Smart Key) 2018 - 2020 Remove the cupholder from the center console storage area. Place transmitter in the pocket with the buttons facing up. Buick Encore (Smart Key) 2017 - 2020 Place transmitter in the cupholder with the buttons facing up. Buick Encore GX (Smart Key) 2020 Place the RKE transmitter in the storage bin with the buttons facing up.
Page 9 Vehicle Keyport location Reference With bucket seats - Open the center console and place the transmitter in the transmitter pocket. Chevrolet Silverado 2020 2500/3500 (Smart Key) Without bucket seats - Place transmitter in the transmitter pocket between the cupholders. Chevrolet Spark (Smart Key) 2016 - 2020 Open the center console and place the transmitter in the transmitter pocket.
Page 10: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2015 Cadillac CTS Sedan (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color...
Page 11 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet (-) W2W Only - Aux 1 Input...
Page 12: Key2Go
Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. Refer to “Module programming” of this guide for instructions on how to program features using Key2GO.
Page 13: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times. When the LED turns ON solid orange, proceed to step 4.
Page 14: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
Page 15 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
Page 16: Soft Reset
Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.
Page 17: Feature Programming
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.
Page 18: Feature And Option List
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
Page 19: Limited One Year Consumer Warranty
Limited one year consumer warranty For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material under normal use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer;...
Page 20: Quick Reference Guide
Quick Reference Guide Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Stop the vehicle in a safe parking spot and put the gear in there are 3 possible ways you can send commands to your vehicle, using the: gear in Park (P).
