403.GM9
DB3
v2.42
2011 Buick LaCrosse (Smart Key)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Directed DB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Directechs Directed DB3

Summary of Contents for Directechs Directed DB3

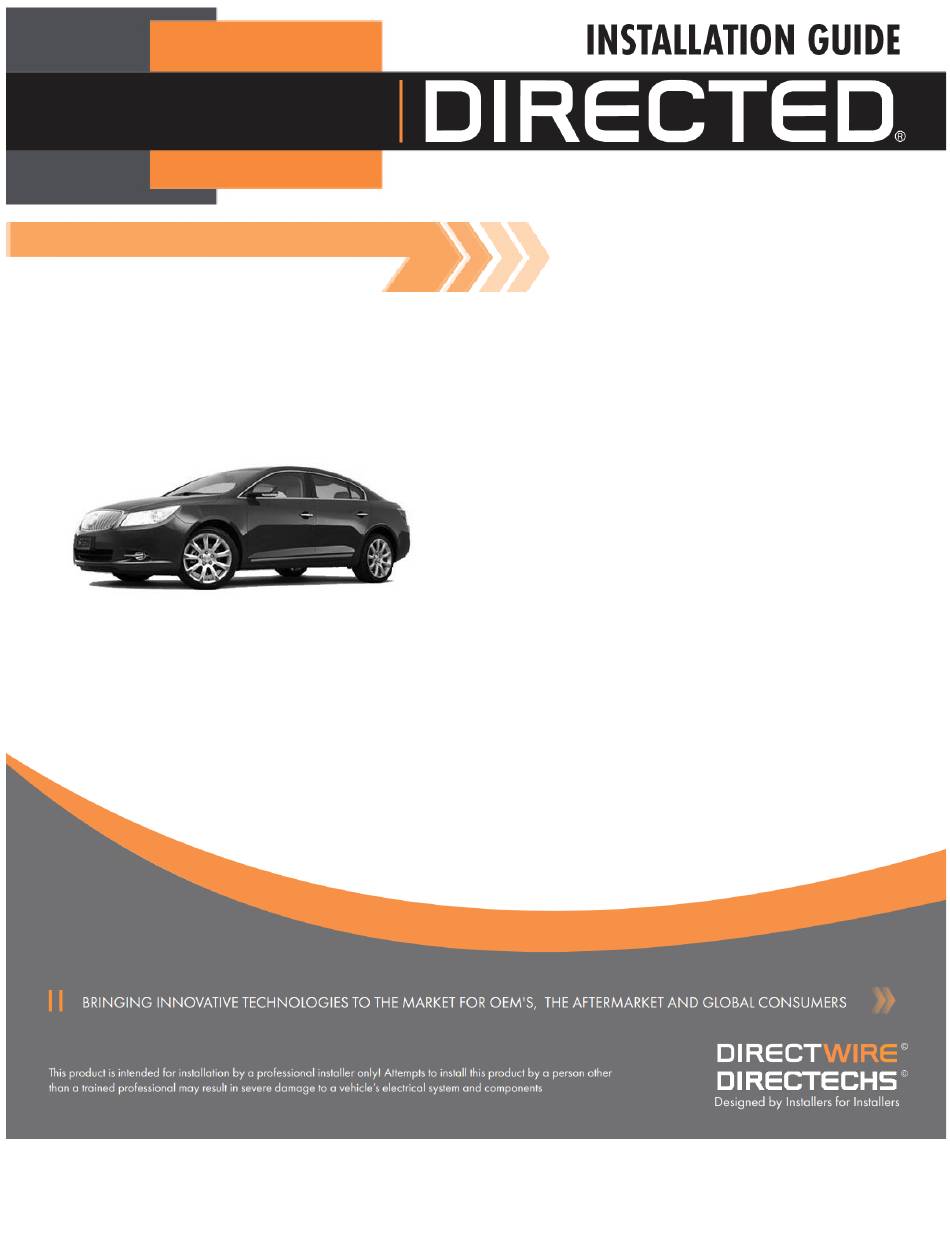

  • Page 1 403.GM9 v2.42 2011 Buick LaCrosse (Smart Key)

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Keyport Location Vehicle connections Module programming Key2GO Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...

  • Page 3: Introduction

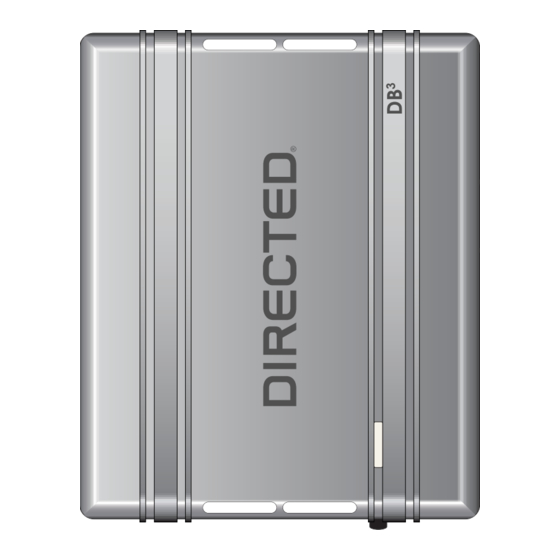

    DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.GM9 2.42 2011 Buick LaCrosse (Smart Key)

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Arm Factory Security Remote Start Ready Disarm Factory Security Remote Start Takeover Door Lock Control...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. Keys T-Harness Keys required required for compatible for operation programming Important! The following settings must be made for the 2016 - 2019 Chevrolet Malibu Hybrid (Smart Key).

  • Page 6: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( (white conn. under (green conn. driver-side dash under driver-side XKD2D65 or in center console dash or in center passenger side) console passenger side) 1 2 3 4...

  • Page 7: Locating Components In The Vehicle

    Locating components in the vehicle 403.GM9 2.42 2011 Buick LaCrosse (Smart Key) ©2022 VOXX•DEI LLC. All rights reserved.

  • Page 8: Keyport Location

    Keyport location Vehicle Keyport location Reference Buick Enclave (Smart Key) 2018 - 2021 Remove the cupholder from the center console storage area. Place transmitter in the pocket with the buttons facing up. Buick Encore (Smart Key) 2017 - 2022 Place transmitter in the cupholder with the buttons facing up. Buick Encore GX (Smart Key) 2020 - 2022 Place the RKE transmitter in the storage bin with the buttons facing up.
  • Page 9 Vehicle Keyport location Reference Chevrolet Trax (Smart Key) 2017 - 2021 Place the transmitter in the front cupholder of the center console storage area. GMC Acadia (Smart Key) 2017 - 2022 Open the center console and place the transmitter in the transmitter pocket. With bucket seats - Open the center console and place the transmitter in the transmitter pocket with the buttons facing the front of the vehicle.

  • Page 10: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2011 Buick LaCrosse (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 11 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet (-) W2W Only - Aux1  Input...

  • Page 12: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times. When the LED turns ON solid orange, proceed to step 4. Remove battery from one key fob, and make sure that the other key fob is located more than 10 feet away from vehicle.

  • Page 13: Key2Go

    Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. Refer to “Module programming” of this guide for instructions on how to program features using Key2GO.

  • Page 14: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 15   Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 16: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 17: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 18: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 19: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 20: Quick Reference Guide

    Quick Reference Guide Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Stop the vehicle in a safe parking spot and put the gear in there are 3 possible ways you can send commands to your vehicle, using the: gear in Park (P).
  • Page 21 Notes 403.GM9 2.42 2011 Buick LaCrosse (Smart Key) ©2022 VOXX•DEI LLC. All rights reserved.
