INSTALLATION GUIDE
DB3
2016 Honda Civic (Smart Key) - 403.HONDA7 2.19
Designed by Installers for Installers
© 2016 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Directechs DB3

Summary of Contents for Directechs DB3

  • Page 1 INSTALLATION GUIDE 2016 Honda Civic (Smart Key) - 403.HONDA7 2.19 Designed by Installers for Installers © 2016 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.
  • Page 2 Contents Introduction Pre-installation and application warnings Wiring Diagram Vehicle connections Connecting the module Module programming LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...
  • Page 3 Warning! Safety first The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.

  • Page 4: Introduction

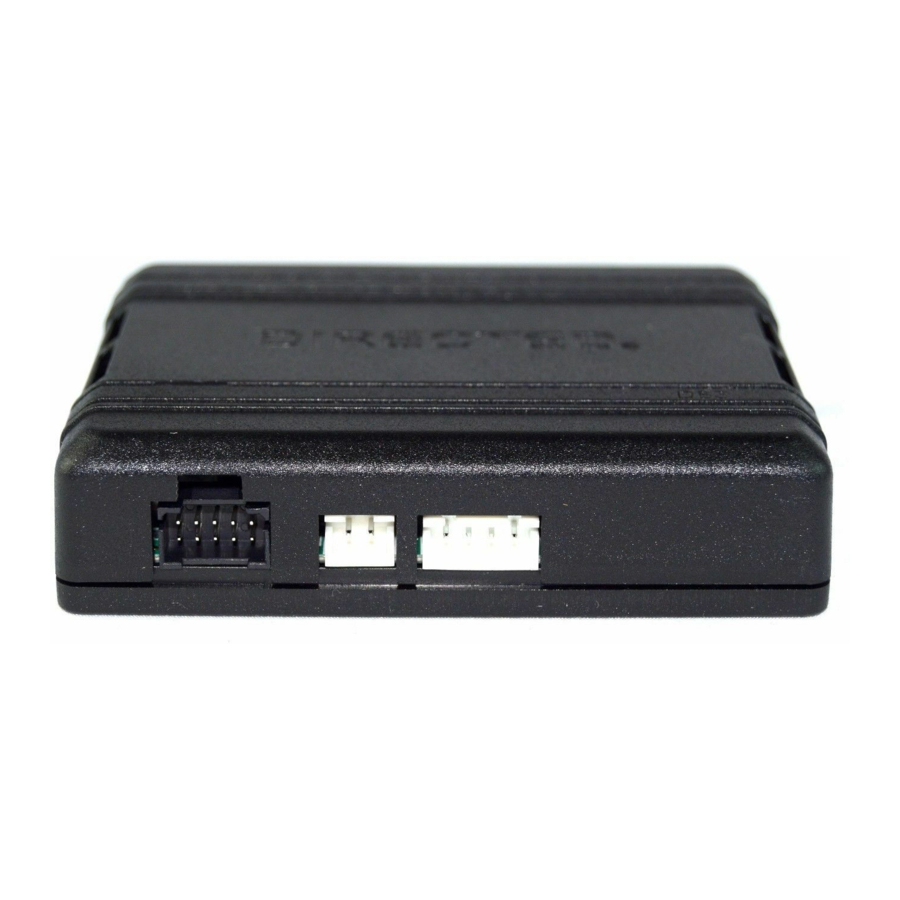

    DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. This solution is compatible with the 2016 Honda Civic (Smart Key) and offers the following features: •...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic...

  • Page 6: Wiring Diagram

    Wiring diagram Important! - The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL. - Refer to the Wiring Reference Chart section for more information on specific wiring and connections. (-) Lock Output (-) Hood Input (+) Brake Input...

  • Page 7: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2016 Honda Civic (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color Ref.
  • Page 8 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color Ref. H3/1 Green (-) W2W Only - Lock Input H3/2 Blue (-) W2W Only - Unlock Input H3/3 Red/White (-) W2W Only - Tach Input H3/4 Red/Black No Connection...

  • Page 9: Connecting The Module

    Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2.

  • Page 10: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Key-type vehicles Wait until the LED turns ON solid red. Notes: To skip the transponder programming and use convenience features only, press the programming button 5 times. When the LED turns ON solid orange, proceed to step 2.
  • Page 11 recognize that you are moving onto the second phase of the programming sequence.Then proceed to step 5. If however, the LED turns ON solid greenfor 3 seconds, proceed to step 6. Click on Submit Key2GO Request. Once the configuration is completed, reconnect the module.

  • Page 12: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
  • Page 13 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 14: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 15: Hard Reset

    Hard reset Warning Against Executing a Hard Reset! A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”. D2D installation Connect the 10-pin, 12-pin &...

  • Page 16: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 17: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 18: Limited One Year Consumer Warranty

    Limited one year consumer warranty For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material under normal use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer;...

  • Page 19: Ground

    Vehicle Takeover List of Available Commands NO vehicle takeover available for Push-to-Start (PTS) models. The engine will stop Note that the information below is for Viper, Clifford and Python models. Icons and when a door is opened. commands may differ depending on the remote brand and model purchased. Refer to your authorized installation center for more information.
  • Page 20 Notes 403.HONDA7 2.19 2016 Honda Civic (Smart Key) © 2016-11-30 Directed. All rights reserved.
