Directechs FORD12 Installation Manual page 26

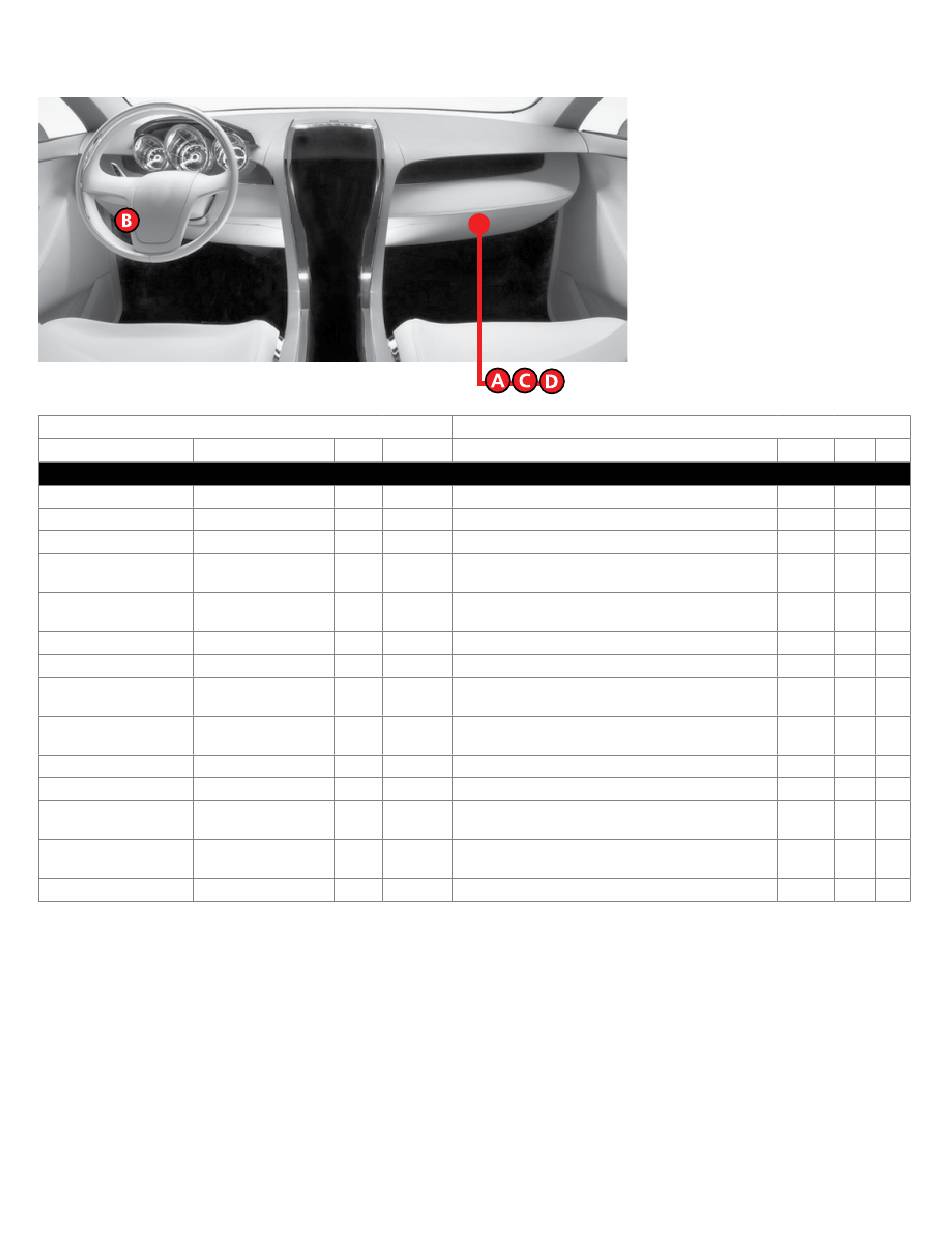

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Ford Transit Connect (Key) 2019-2020
Parking Lights, Front left Green/Orange
Parking Lights, Front right Brown/Yellow
Parking Lights 2, Rear left Violet/Green
Parking Lights 2, Rear White/Orange
right
12V (for parking light
Red
relay)
12V2 Brown/Red
OBD Ground Black/Blue
CAN 3 High (w/o OEM Green/Orange
Remote Start)
CAN 3 Low (w/o OEM
Gray/Blue
Remote Start)
CAN 1 High Blue
CAN 1 Low White
CAN 2 High (w/ OEM
Gray/Orange
Remote Start)
CAN 2 Low (w/ OEM
Violet/Orange
Remote Start)
Hood Pin Blue/Orange
26
Pin Polarity Location
14 (+) BCM behind glove box, plug (E).
28 (+) BCM behind glove box, plug (E).
53 (+) BCM behind glove box, plug (F).
47 (+) BCM behind glove box, plug (F).
1 (+) BCM behind glove box, plug (C).
24 (+) Gateway module on OBDII connector.
14 (-) Gateway module on OBDII connector.
18 Data Gateway module on OBDII connector.
17 Data Gateway module on OBDII connector.
20 Data Gateway module on OBDII connector.
19 Data Gateway module on OBDII connector.
23 Data Gateway module on OBDII connector.
22 Data Gateway module on OBDII connector.
26 (-) BCM behind glove box, plug (E).
Connector Information
Color
Black
Black
Gray
Gray
N/A
Black
Black
Black
Black
Black
Black
Black
Black
Black
Directed Digital Solutions FORD12
© 2021-02-04 Directed. All rights reserved.
Pins Ref.
50 A
50 A
72 C
72 C
3 D
24 B
24 B
24 B
24 B
24 B
24 B
24 B
24 B
50 A
