INSTALLATION GUIDE
DB3
2014 Buick Enclave. 403.GM11 1.20
Designed by Installers for Installers
© 2021 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Directechs DB3

Summary of Contents for Directechs DB3

  • Page 1 INSTALLATION GUIDE 2014 Buick Enclave. 403.GM11 1.20 Designed by Installers for Installers © 2021 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...

  • Page 3: Introduction

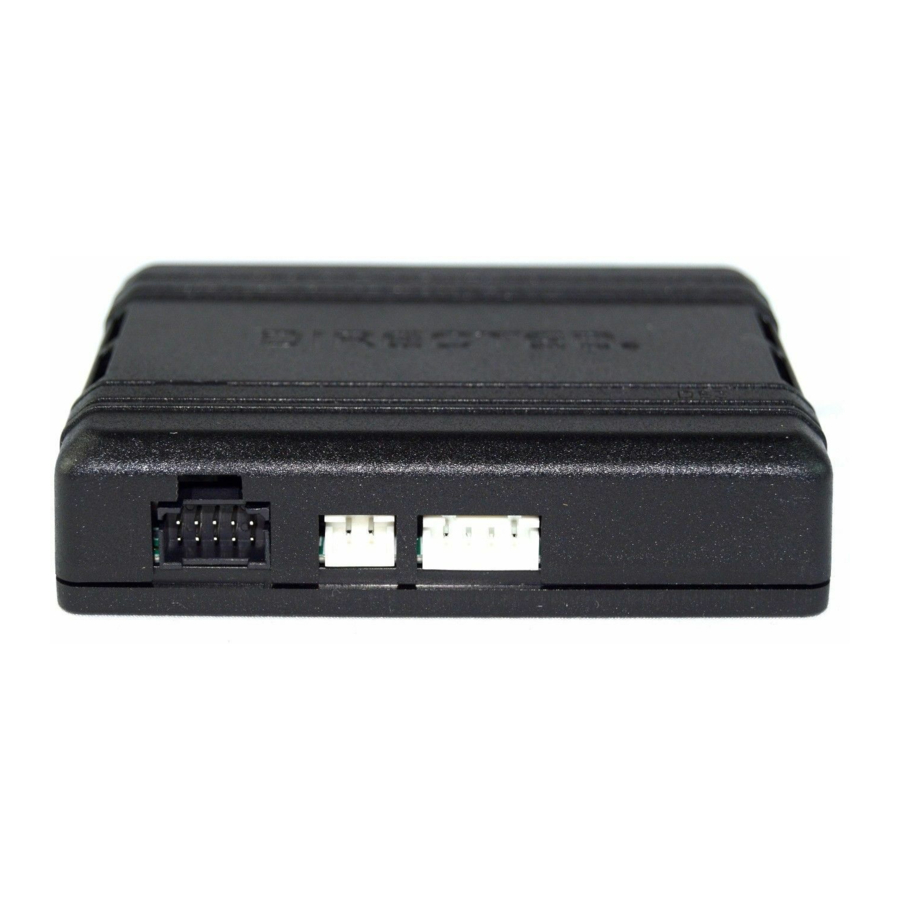

    DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.GM11 1.20 2014 Buick Enclave...

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Heated Seats Activation RAP Shut Down (Retained ACC Power) Arm Factory Security Remote Start Ready Disarm Factory Security Remote Start Takeover Door Lock Control SmartStart Door Unlock...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation The Cadillac CTS, Chevrolet Impala/Impala Limited and Buick Lucerne require the trunk feature to be set to Electric Rear...

  • Page 6: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Immobilizer Power: Pin 1 HS CAN High: Tan/Black or Tan/White, pin 6 Single Wire CAN: Dk.Green, pin 1 Ignition XKD2D65 Barrel...

  • Page 7: Locating Components In The Vehicle

    Locating components in the vehicle 403.GM11 1.20 2014 Buick Enclave ©2021 VOXX•DEI LLC. All rights reserved.

  • Page 8: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2014 Buick Enclave. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
  • Page 9 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet...

  • Page 10: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times. When the LED turns ON solid orange, proceed to step 2.

  • Page 11: Connecting The Module

    Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2.

  • Page 12: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
  • Page 13 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 14: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 15: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 16: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 17: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 18: Quick Reference Guide

    Quick Reference Guide Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Stop the vehicle in a safe parking spot and put the gear in there are 3 possible ways you can send commands to your vehicle, using the: gear in Park (P).
  • Page 19 Notes 403.GM11 1.20 2014 Buick Enclave ©2021 VOXX•DEI LLC. All rights reserved.
