INSTALLATION GUIDE
DB3
2004 Toyota Camry. 403.TL11 1.15
Designed by Installers for Installers
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Directechs DB3

Summary of Contents for Directechs DB3

  • Page 1 INSTALLATION GUIDE 2004 Toyota Camry. 403.TL11 1.15 Designed by Installers for Installers © 2022 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Key type Wiring diagram Locating components in the vehicle Vehicle connections Module programming With transponder without CAN Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...

  • Page 3: Introduction

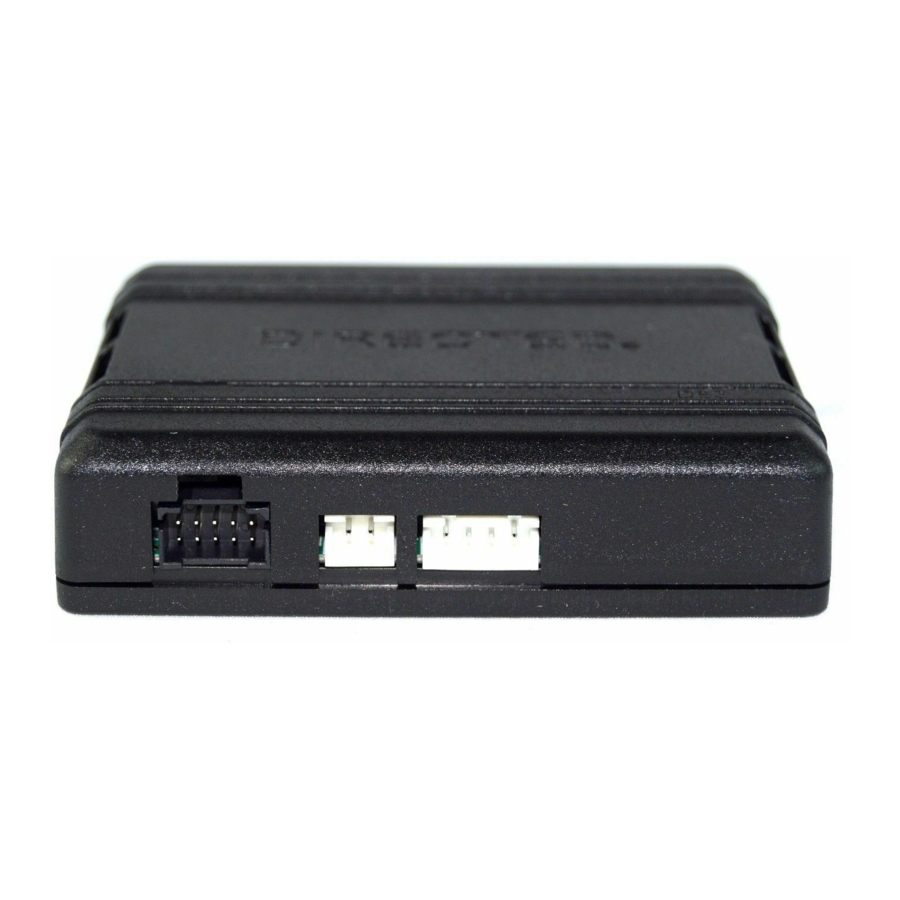

    DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.TL11 1.15 2004 Toyota Camry...

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Immobilizer Bypass-Data No Key Req'd Remote Start Takeover 403.TL11 1.15 2004 Toyota Camry ©2022 VOXX•DEI LLC. All rights reserved.

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation Important!

  • Page 6: Key Type

    Key type Some Toyota 2010+ models have different encryption types. Please look at your key blade and identify the markings. H-stam ped keys G-stam ped keys Standard Key For vehicles with H-stamped keys, see For vehicles with G-stamped keys, see For vehicles with dot-stamped keys, the TL10 firmware.

  • Page 7: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( XKD2D65 Refer to ‘Vehicle connections’ for wire and connector details. Diagnostic Connector at OBDII D2D Port (-) Parking Lights Output (AC) Tach: Pin 9 (+) Brake Input...

  • Page 8: Locating Components In The Vehicle

    Locating components in the vehicle 403.TL11 1.15 2004 Toyota Camry ©2022 VOXX•DEI LLC. All rights reserved.

  • Page 9: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2004 Toyota Camry. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
  • Page 10 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet No Connection...
  • Page 11 Additional remote start connections (Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.) Connects To Wire Wire Location (+/-) Wire Color 12 Volts ignition switch, white 8 pin plug, pin 7 white/red (30A) Accessory ignition switch, white 8 pin plug, pin 3...

  • Page 12: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. With transponder without CAN Wait until the LED turns ON solid red. Insert the key in the ignition switch. The LED turns ON solid green. Turn the key to the ON position.

  • Page 13: Connecting The Module

    Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2.

  • Page 14: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 15   External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence.

  • Page 16: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 17: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 18: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 19: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 20: Quick Reference Guide

    Quick Reference Guide Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Stop the vehicle in a safe parking spot and put the there are 3 possible ways you can send commands to your vehicle, using the: gear in gear in Park (P).
  • Page 21 Notes 403.TL11 1.15 2004 Toyota Camry ©2022 VOXX•DEI LLC. All rights reserved.
