INSTALLATION GUIDE
DB3
2006 Jeep Commander. 403.CHRYSLER 7.26 RSR
Designed by Installers for Installers
© 2021 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Directechs DB3

Summary of Contents for Directechs DB3

  • Page 1 INSTALLATION GUIDE 2006 Jeep Commander. 403.CHRYSLER 7.26 RSR Designed by Installers for Installers © 2021 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming Key-type vehicles SmartStart/XL202 installation notes Connecting the module LED diagnostics and troubleshooting Parking light error codes Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty...

  • Page 3: Introduction

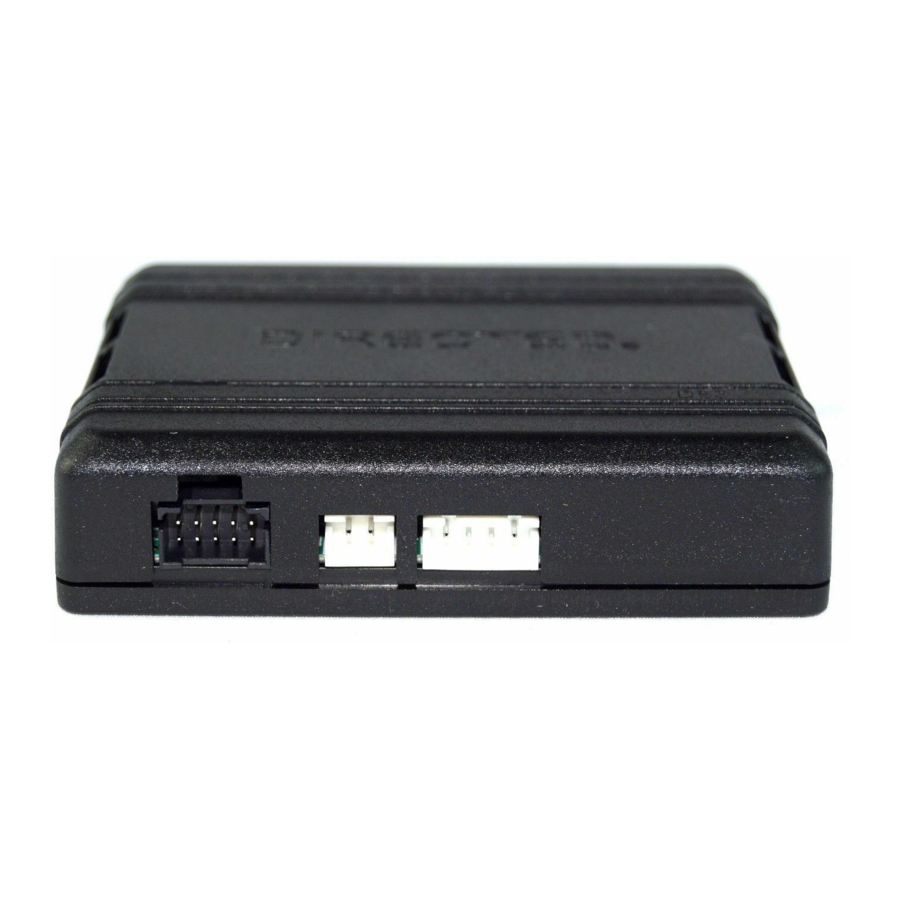

    Introduction DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote Start Ready (RSR) mode. This solution may offer up to three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation (if applicable, refer to the “Vehicle function compatibilities” below), RF System or SmartStart (all sold separately).

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Parking Lights Control Remote Start Ready Arm Factory Security Remote Start Takeover Disarm Factory Security SmartStart Door Lock Control Tach / RPM Output Door Unlock Entry Monitoring ALL Door Pins Driver Priority Unlock...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation Important!

  • Page 6: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( You can connect to either a XL202 RFTD OR a SmartStart module. CAN B Low: White, pin 7 Refer to the SmartStart/XL202 Installation Notes for more information.

  • Page 7: Locating Components In The Vehicle

    Locating components in the vehicle 403.CHRYSLER 7.26 2006 Jeep Commander ©2021 VOXX•DEI LLC. All rights reserved.

  • Page 8: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2006 Jeep Commander. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
  • Page 9 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green No Connection No Connection H3/2 Blue No Connection No Connection H3/3 Red/White No Connection No Connection H3/4 White/Violet No Connection No Connection H3/5 Violet/Black No Connection...

  • Page 10: Module Programming

    Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Key-type vehicles Connect the 10-pin, 12-pin and 14-pin harnesses to DB3, then wait until the LED turns ON solid red. Insert the key into the ignition barrel and turn it to the ON position. It is important to wait for the LED to start flashing green.

  • Page 11: Smartstart/Xl202 Installation Notes

    SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202.

  • Page 12: Connecting The Module

    Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application.

  • Page 13: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
  • Page 14 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 15: Parking Light Error Codes

    Parking light error codes The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern is described below. Flashes Diagnostic Runtime expired. Over-rev shutdown. Low or no RPM. Shutdown without remote. Brake shutdown.

  • Page 16: Feature Programming

    1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to change the options of the selected feature.

  • Page 17: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
  • Page 18 Feat. Operation Flashes / Option Description Smart OEM Alarm Control will synchronize with the OEM alarm so that it will disarm and rearm the vehicle in the remote start sequence, only when required. 3. Enabled* Smart OEM Alarm Control will monitor the alarm and door lock status to detect if the disarm or rearm is required.

  • Page 19: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 20: Quick Reference Guide

    Quick Reference Guide Sending commands to your vehicle Vehicle takeover with Push-to-Start (PTS) Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Close the vehicle doors, hood and trunk, then send Press Remote there are 3 possible ways you can send commands to your vehicle, using the: Start button* the Remote Start command to start the vehicle.* •...
  • Page 21 Remote Start Ready (RSR) SmartStart compatible Remote Start Ready (RSR) is a function that enables the interface This system is compatible with Directed SmartStart. For a complete list of supported module to remote start the vehicle completely on its own. features, please visit www.mysmartstart.com.
