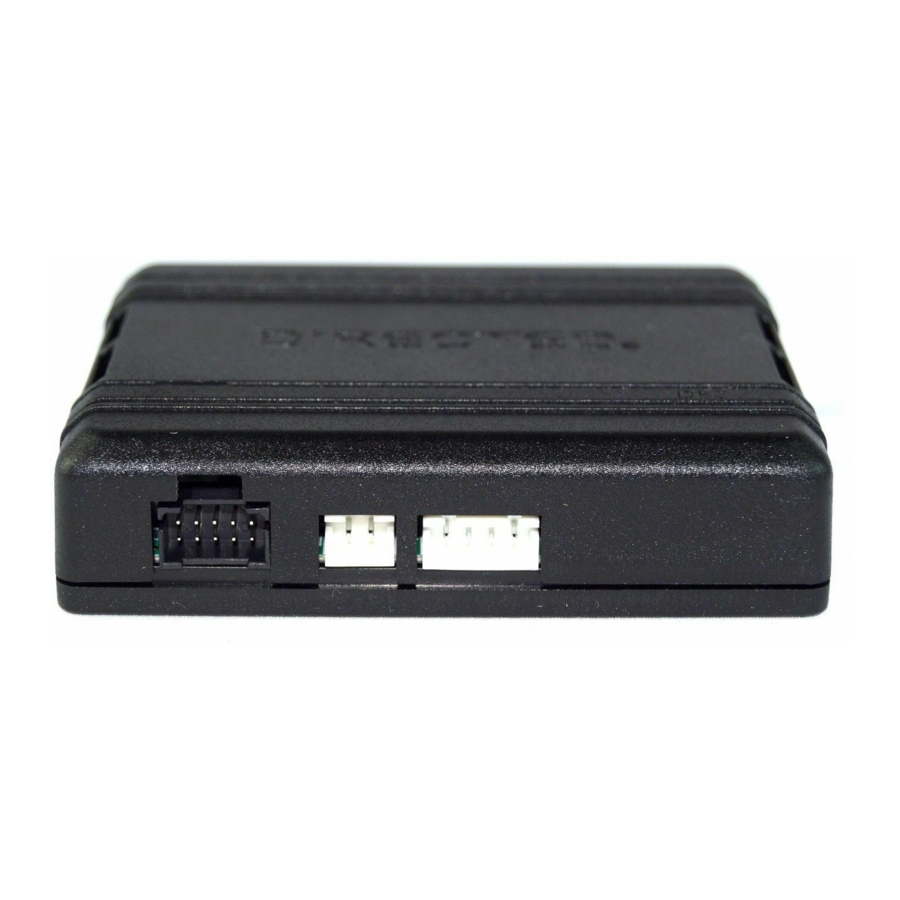

All-in-one door lock and override module for chevrolet cruze 2021
Hide thumbs Also See for DB3:
Table of Contents

Advertisement

Quick Links

INSTALLATION GUIDE
DB3
2011 Chevrolet Cruze. 403.GM10 4.16 RSR
Designed by Installers for Installers
© 2019 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Directechs DB3

Summary of Contents for Directechs DB3

  • Page 1 INSTALLATION GUIDE 2011 Chevrolet Cruze. 403.GM10 4.16 RSR Designed by Installers for Installers © 2019 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with T-Harness (THGMD1 Rev. 1) Wiring diagram with T-Harness (THGM610D Rev. 1 & 2) Wiring diagram with T-Harness (THGM610D Rev. 3) Wiring diagram Locating components in the vehicle Vehicle connections Key2GO SmartStart/XL202 installation notes...
  • Page 3 Warning! Safety first The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.

  • Page 4: Introduction

    Introduction DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote Start Ready (RSR) mode. This solution may offer up to three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation (if applicable, refer to the “Vehicle function compatibilities” below), RF System or SmartStart (all sold separately).

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for THGMD1 or THGM610D compatible programming operation...
  • Page 6 Wiring diagram with T-Harness (THGMD1 Rev.1 & 3) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Connector OBDII Diagnostic (black connector at ignition switch) (connector side view) HS CAN High: Pin 6 SW CAN: Pin 1 Ignition Barrel...

  • Page 7: Wiring Diagram With T-Harness (Thgm610D Rev. 1 & 2)

    Wiring diagram with T-Harness (THGM610D Rev.1&2) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( 4-pin only White Connector Cut away the 4-pin connector and connect OBDII Diagnostic Ignition Barrel the three wires to the (connector side view)

  • Page 8: Wiring Diagram With T-Harness (Thgm610D Rev. 3)

    Wiring diagram with T-Harness (THGM610D Rev.3) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( only OBDII Diagnostic (connector side view) HS CAN High: Pin 6 Ignition Barrel SW CAN: Pin 1 Use connectors You can connect...

  • Page 9: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Switch OBDII Diagnostic (black or white 6-pin connector (connector side view) at ignition switch) SW CAN: Green, pin 1 (+) Accessory: Pin 3 HS CAN High: Tan/Black or Blue, pin 6...

  • Page 10: Locating Components In The Vehicle

    Locating components in the vehicle 403.GM10 4.16 2011 Chevrolet Cruze © 2019-03-01 Directed. All rights reserved.

  • Page 11: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2011 Chevrolet Cruze. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
  • Page 12 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green No Connection No Connection H3/2 Blue No Connection No Connection H3/3 Red/White No Connection No Connection H3/4 White/Violet No Connection No Connection H3/5 Violet/Black No Connection...

  • Page 13: Key2Go

    Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. Refer to “Module programming” of this guide for instructions on how to program features using Key2GO.

  • Page 14: Smartstart/Xl202 Installation Notes

    SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202.

  • Page 15: Connecting The Module

    Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application.

  • Page 16: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Connect the 10-pin, 12-pin and 14-pin harnesses to DB3, then wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times.

  • Page 17: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
  • Page 18 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 19: Parking Light Error Codes

    Parking light error codes The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern is described below. Flashes Diagnostic Runtime expired. Over-rev shutdown. Low or no RPM. Shutdown without remote. Brake shutdown.

  • Page 20: Feature Programming

    1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to change the options of the selected feature.

  • Page 21: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 22: Limited One Year Consumer Warranty

    Limited one year consumer warranty For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material under normal use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer;...

  • Page 23: Quick Reference Guide

    Quick Reference Guide Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Stop the vehicle in a safe parking spot and put the gear in there are 3 possible ways you can send commands to your vehicle, using the: gear in Park (P).
  • Page 24 List of available commands SmartStart compatible Note that the information below is for many Viper, Clifford, Python, Avital, Automate, This system is compatible with Directed SmartStart. For a complete list of supported Autostart and AstroStart models. Icons and commands may differ depending on the features, please visit www.mysmartstart.com.
