LELY Calm View Installation & Operator's Manual page 34

7. Install the adapter plate (3) to the Lely Calm View with the four bolts (6), washers (5) and nuts (4) (see
figure 8 on page 6-10).

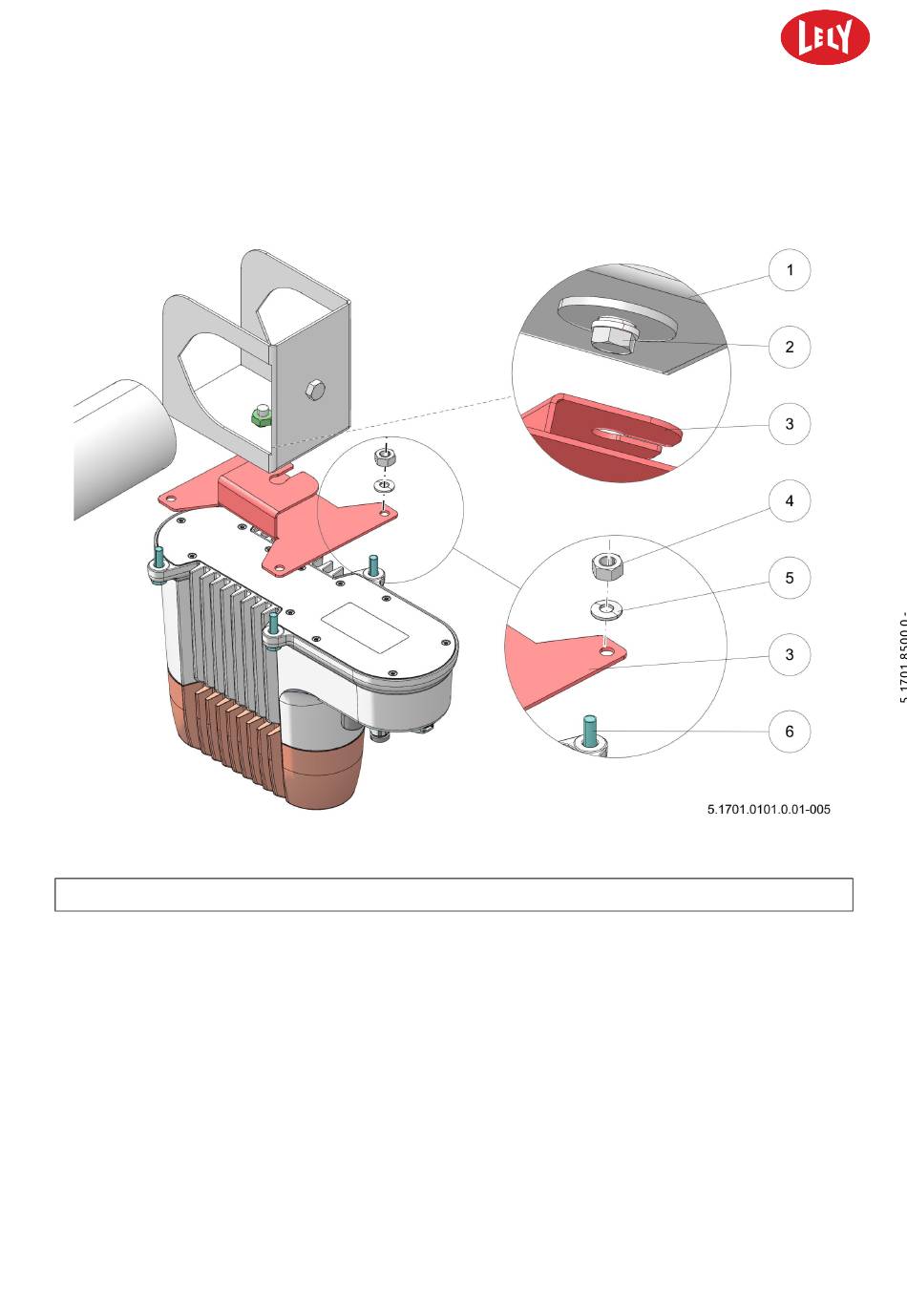

Figure 8. Install the adapter plate to the camera
KEY: 1. Bracket - 2. Bolt - 3. Adapter plate - 4. Nut - 5. Washer - 6. Bolt
8. Install the adapter (3) with the camera to the bracket (1) by sliding the unit on the bolt (2) and tighten
the bolt (see figure 8 on page 6-10).
6-10
in n o vato rs in ag ric u ltu re
Installation
