5. Install the horizontal bar on the correct height (see Determine placement of the camera on page 6-3)
with the clamp (1), clamp plate (4) to the horozontal bar plate (5) with the nuts (2,7) and washers (3,6)
(see figure 6 on page 6-8)
.

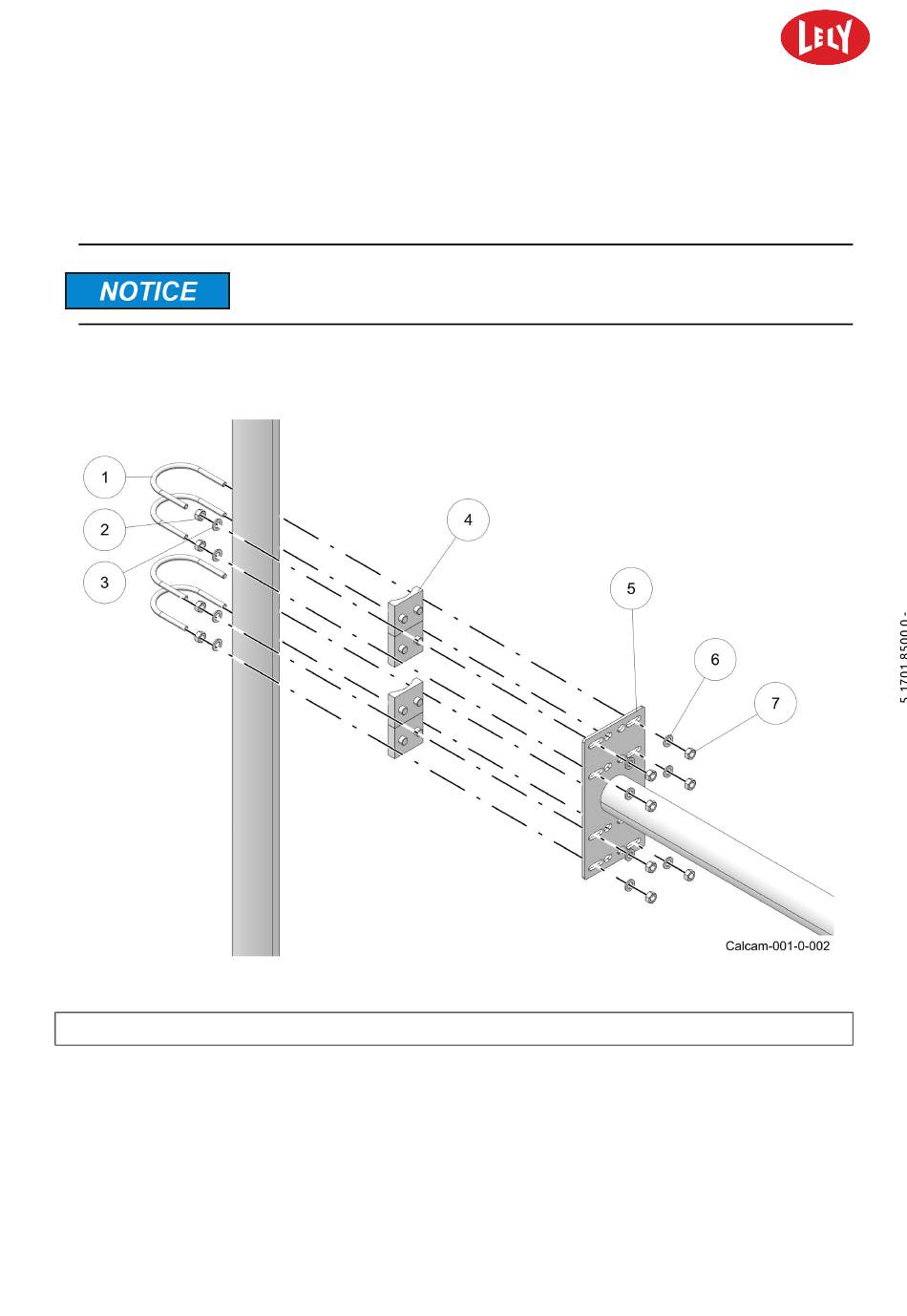

Figure 6. Install the horizontal bar
KEY: 1. Clamp - 2. Nut - 3. Washer - 4. Clamp plate - 5. Horizontal bar plate - 6. Washer - 7. Nut
6-8
Use a double sided ladder when installing the horizontal bar for heifers.
