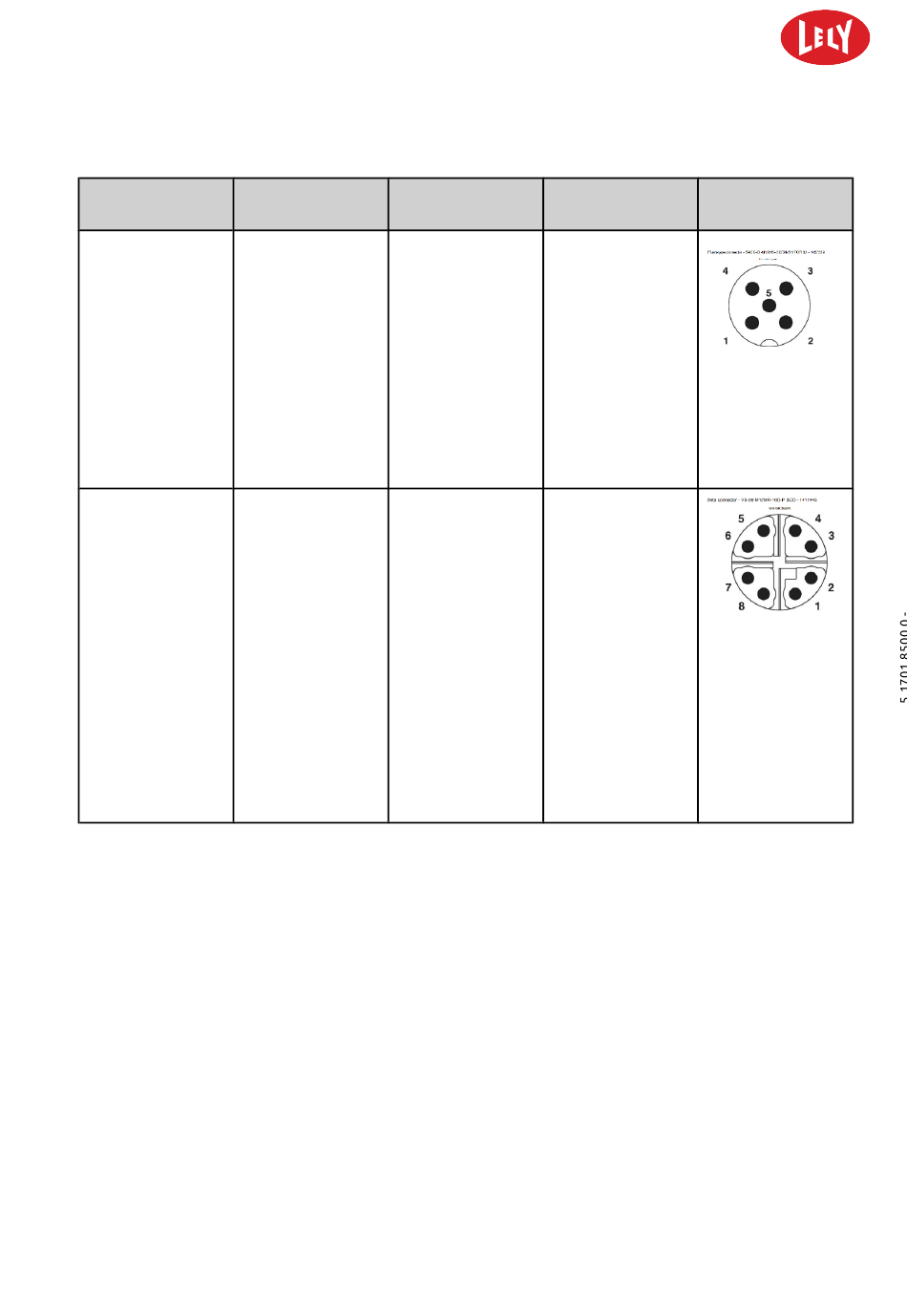

Table 1. Phoenix connectors, their counter connectors and the connection diagram
Description
+24 supply
Ethernet 1Gbps
6-2
Camera Marking Phoenix
connector
PWR 1457539
ETH 1402457
Phoenix Connection
Counterpart diagram
1543058
•
•
•
1417443
•
•
•
•
in n o vato rs in ag ric u ltu re
Pin 1 = +24V
supply
Pin 2, 4, 5 = nc
Pin 3 = GND
supply
Pin 1 / 2 = Pair
A Pos / Neg
Pin 3 /4 = Pair
B Pos / Neg
Pin 5 /6 = Pair
C Pos / Neg
Pin 7 /8 = Pair
D Neg / Pos
